Warmup FOIL-40-240 Foil Heater 240V 480W 2 Amps 1.6 W X 24.5 L Covers 40 Sq Ft
PRODUCT CODE
FOIL-xxx-xxx // FOIL- area covered - voltage
PRODUCT DESCRIPTION

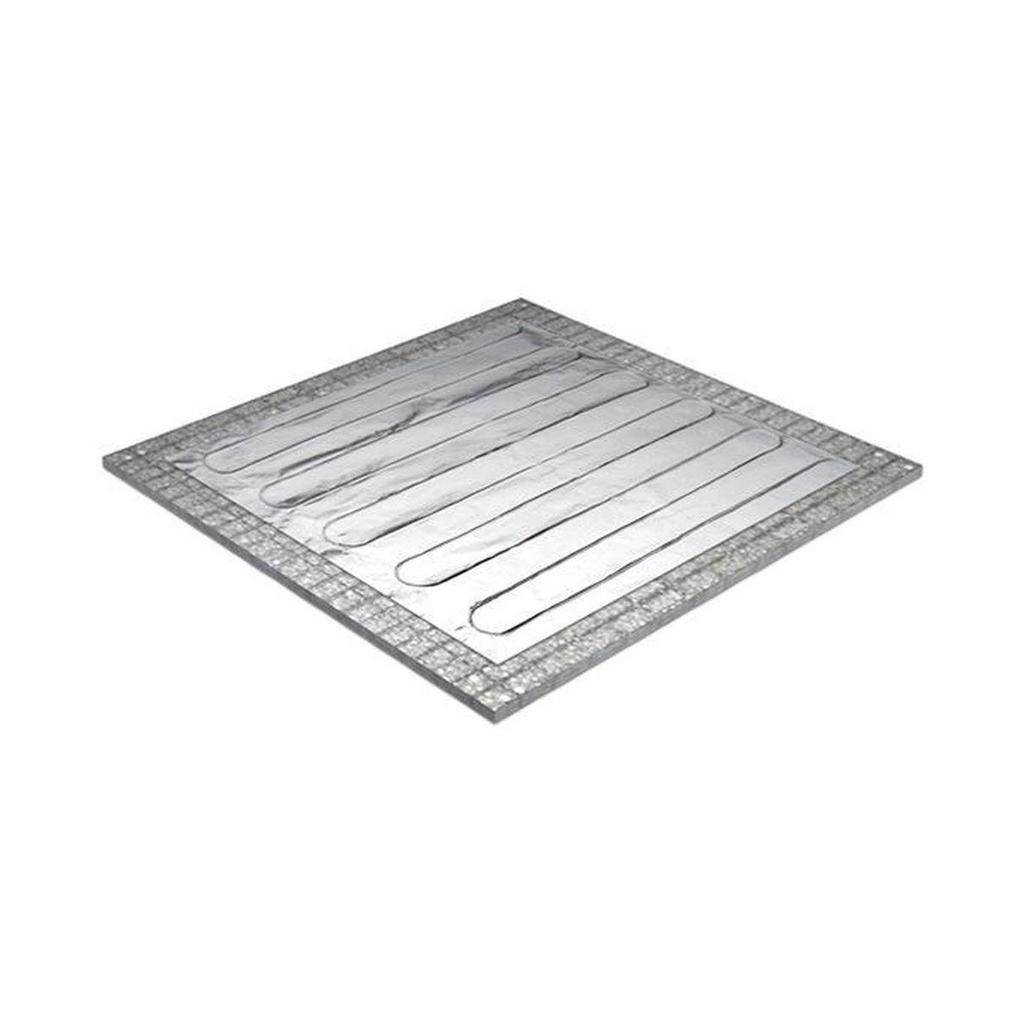

The Cut & Turn Foil panel by Warmup is an ultra thin electric radiant floor heating system designed for use under laminate, cork, carpet, engineered wood and other floating floors. It can be conveniently installed under the floor finish in both dry and wet areas without the need for additional earth grids.
FEATURES

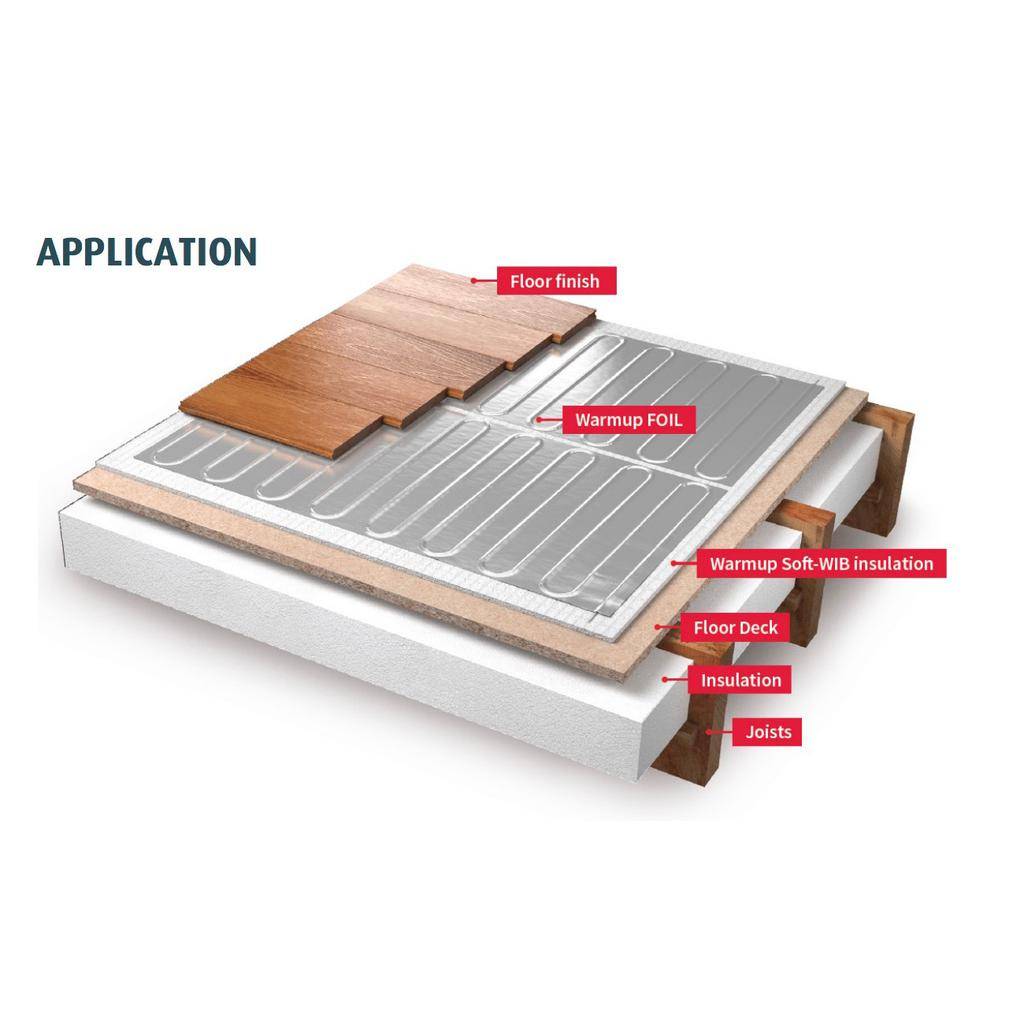

Installs between the insulation pad and the floor
Grounded flat aluminum foil wont raise floor levels.
Great for heating under floating floors such as laminate and engineered wood
SPECIFICATIONS
Operating voltage: 208V & 240V
Cable thickness: 1/8" (3 mm)
Inner insulation: Advanced fluoropolymer (ETFE)
Heating cable spacing: 2" (50mm)
Output rating: 12 W/sq ft
Cold Tail length: 10ft (3m)
Connections: 3-core grounded cord attached
Approvals: cULus

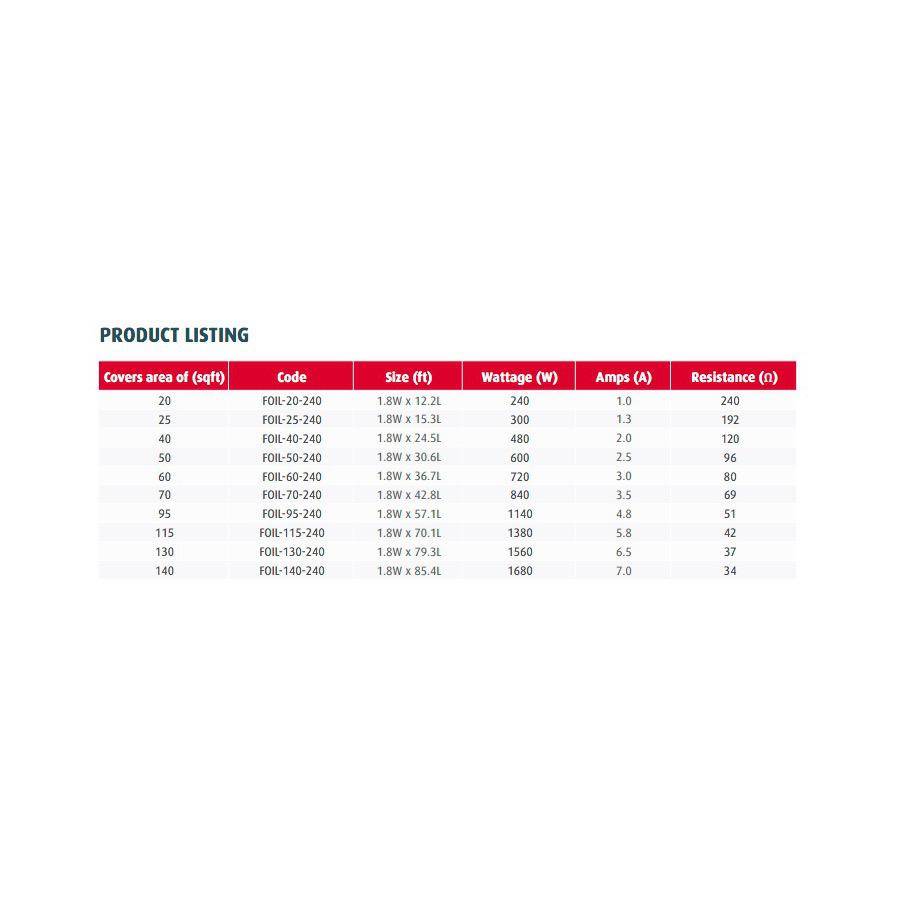

Covers area of (sqft) Code Size (ft) Wattage (W) Amps (A) Resistance ()
20 FOIL-20-240 1.8W x 12.2L 240 1.0 240
25 FOIL-25-240 1.8W x 15.3L 300 1.3 192
40 FOIL-40-240 1.8W x 24.5L 480 2.0 120
50 FOIL-50-240 1.8W x 30.6L 600 2.5 96
60 FOIL-60-240 1.8W x 36.7L 720 3.0 80
70 FOIL-70-240 1.8W x 42.8L 840 3.5 69
95 FOIL-95-240 1.8W x 57.1L 1140 4.8 51
115 FOIL-115-240 1.8W x 70.1L 1380 5.8 42
130 FOIL-130-240 1.8W x 79.3L 1560 6.5 37
140 FOIL-140-240 1.8W x 85.4L 1680 7.0 34
