TOTO TET3GAR#SS EcoPower Concealed Toilet 1.6 GPF Flush Valve Stainless Steel
EcoPower® Concealed Toilet Flush Valve Only 4"x4" - 1.6 GPF
SKU: TET3GAR#SS
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
MODELS
TET3GA31#SS (Back spud wall)
TET3GAR#SS (1.6 GPF flush valve)
VB1331R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET3GA32#SS (Top Spud)
TET3GAR#SS (1.6 GPF flush valve)
VB0932R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET3GA33#SS (Back spud floor)
TET3GAR#SS (1.6 GPF flush valve)
VB1333R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
4" x 4" Stainless Steel cover plate with tamper proof screws
Hydropower self-generating system
1.6 GPF
Self-cleaning piston valve with 360° filter screen
Adjustable tail piece connection
Neutral rough
Manual flush override
Self Adjusting detection range
6-second detection time with 3-second flush delay
Automatic maintenance flush after 24 hours of inactivity
ADA Compliant
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.6 GPF/6.0 LPF
Operating temperature 32°-104°F (0°-40°C)
Water supply pressure 15 psi - 125 psi*
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. _____________________________
Product shall be 1.6 GPF.
Product shall be an automatic infrared sensor-activated, toilet flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have 4" x 4" cover plate with brushed stainless steel finish and solid bronze valve body.
Product shall have smart sensor with self adjusting detection range.
Product shall have neutral rough-in and adjustable tail piece connection
Product shall have smart sensor with self-adjusting detection range.
Product shall have manual flush override.
Product shall have 6-second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
Product shall be ADA compliant.
CODES/STANDARDS
Meets or exceeds ASSE 1037, CSA B125.3
Certifications: IAPMO(cUPC), ASSE, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

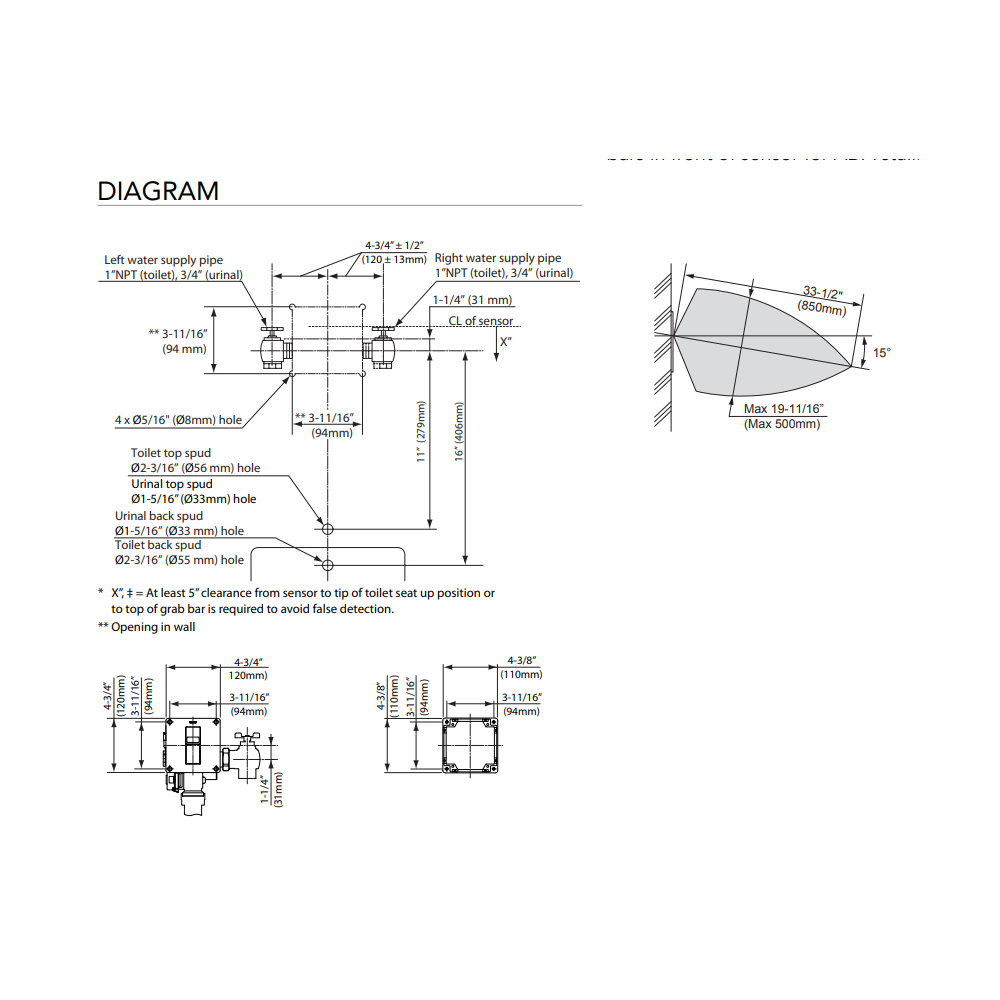

CAD Drawing
