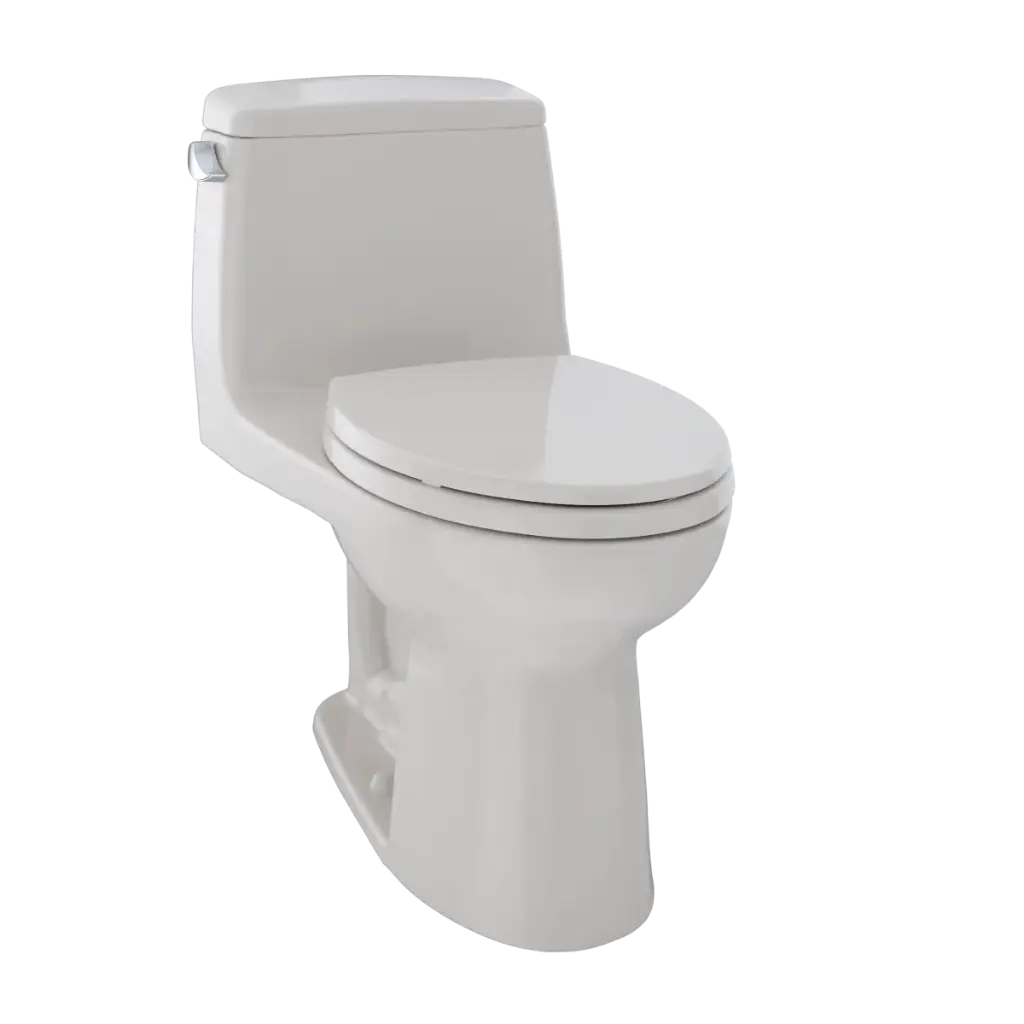

TOTO MS854114EL#12 Eco Ultramax Elongated One Piece Toilet Sedona Beige
Eco UltraMax® One-Piece Toilet, 1.28 GPF, ADA Compliant, Elongated Bowl
SKU: MS854114EL#12
Trip Lever Position: Left Hand
A sleek, high profile, one-piece design, this toilet features the quiet advantage of our powerful E-Max flushing system (see Smartfact below) and CEFIONTECT technology, an extraordinarily smooth, ion-barrier surface to help keep the bowl cleaner longer. Comes with SoftClose seat or optional WASHLET upgrade.
MODELS
MS854114ELG
ADA height toilet with elongated bowl, CeFiONtect and SoftClose seat (SS114)
MS854114EL
ADA height toilet with elongated bowl and SoftClose seat (SS114)
MS854114ELR#01

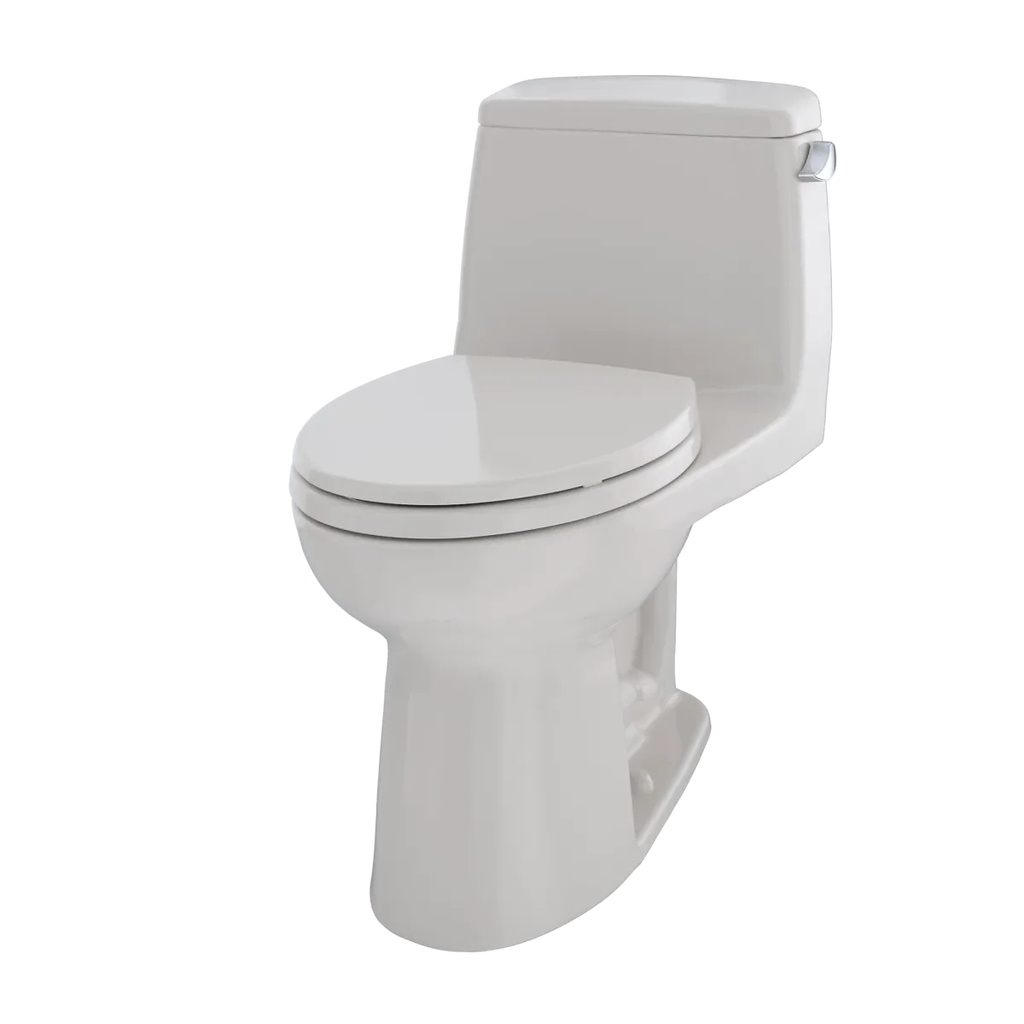

ADA height toilet with elongated bowl, right hand trip lever and SoftClose seat (SS114)
OPTIONAL COMPONENTS
THU808#(01, 03, 11, 12, 51, BN, PN, PB, RB, MBL)-A
Left Hand Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
Features
E-Max Flushing System
Computer Designed, Fully Glazed Trapway
Elongated Bowl with SoftClose Seat
Chrome Trip Lever Included
ADA Compliant
12" Rough-in
SPECIFICATIONS
Water Use 1.28 GPF/4.8 LPF
Flush System E-Max®
Min. Water Pressure 8 psi (static)
Water Surface 10-1/4" x 8-1/4"
Trap Diameter 2-1/8"
Rough-in 12"
Trap Seal 2-3/8"
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight MS854114EL(G) 117 lbs.
Shipping Dimensions 30" L x 19"W x 29-5/8" H1 x 18-1/2" H
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), EPA Watersense, State of Massachusetts , City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance
ADA compliant (when installed with trip lever located on the approach side)
Complies with CA Prop 65 warning requirements
Product Specifications

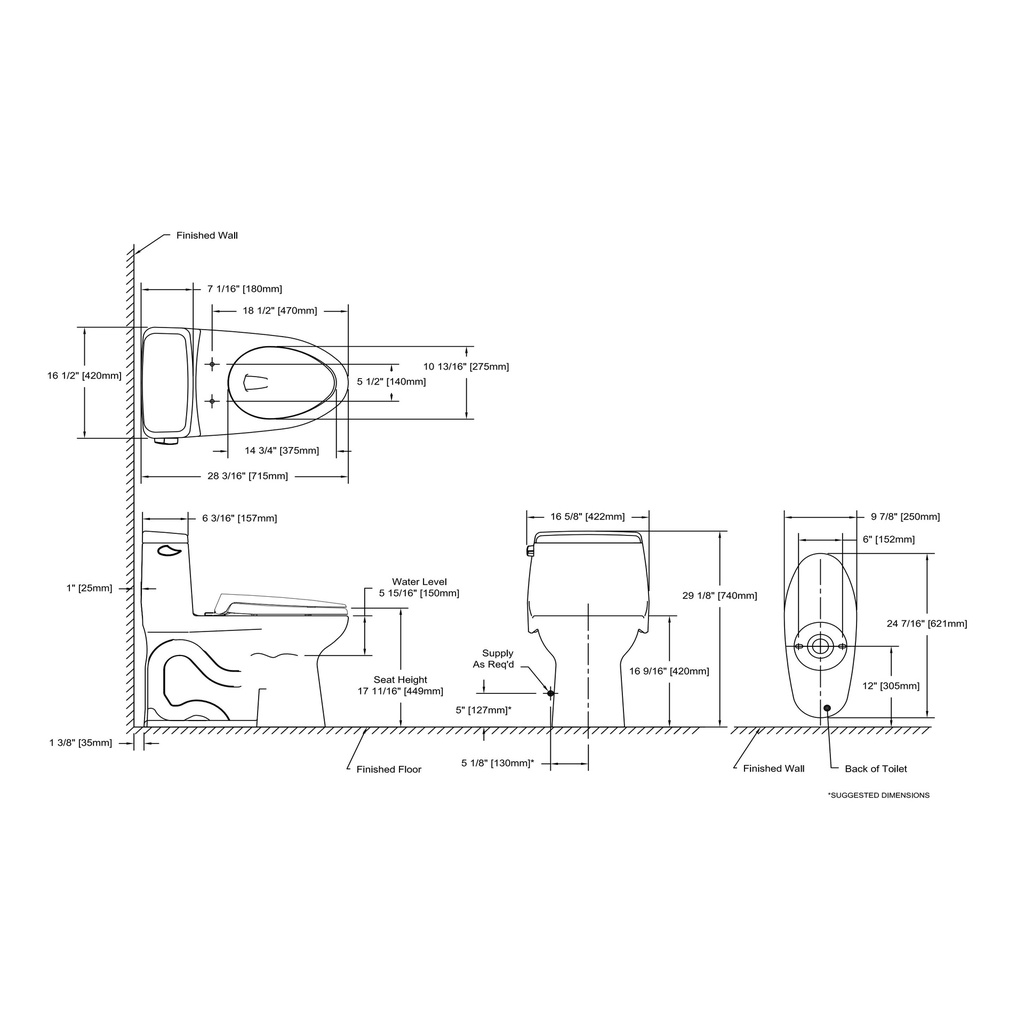

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
