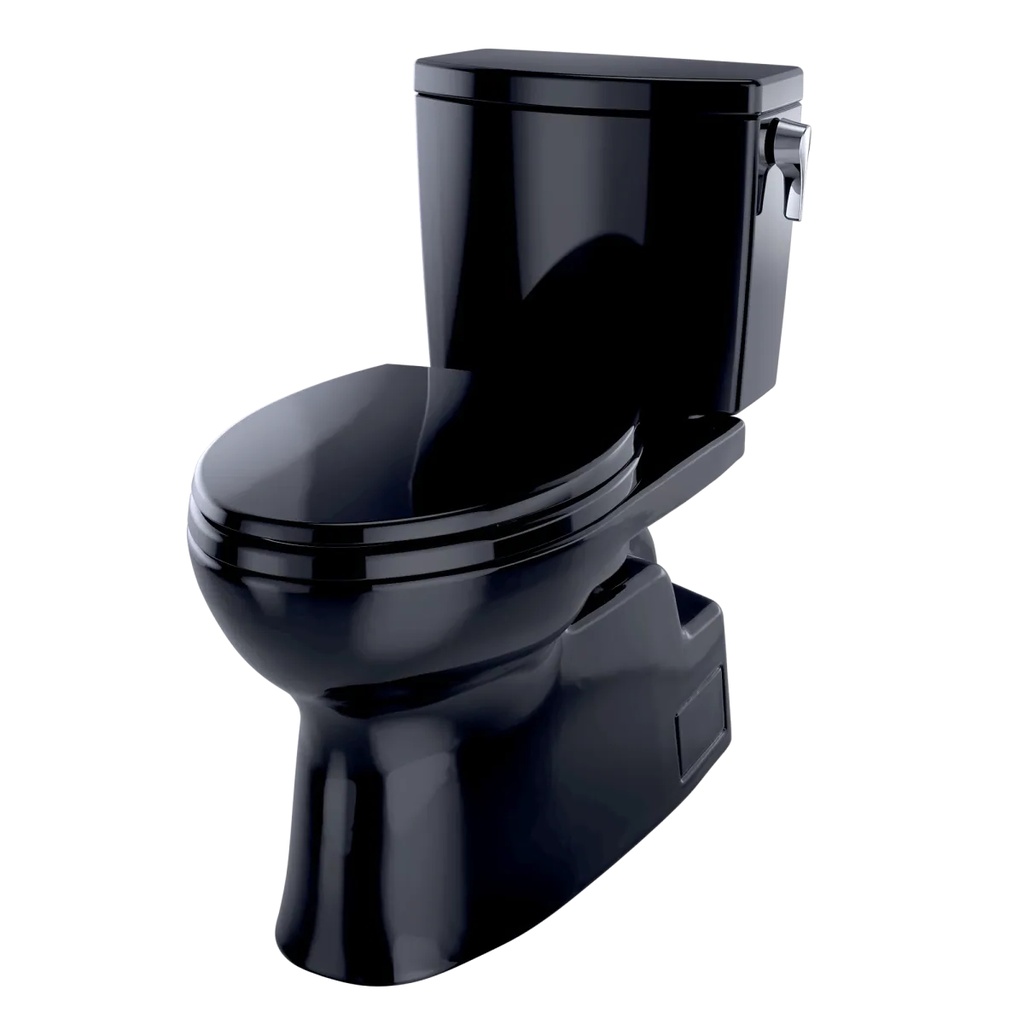

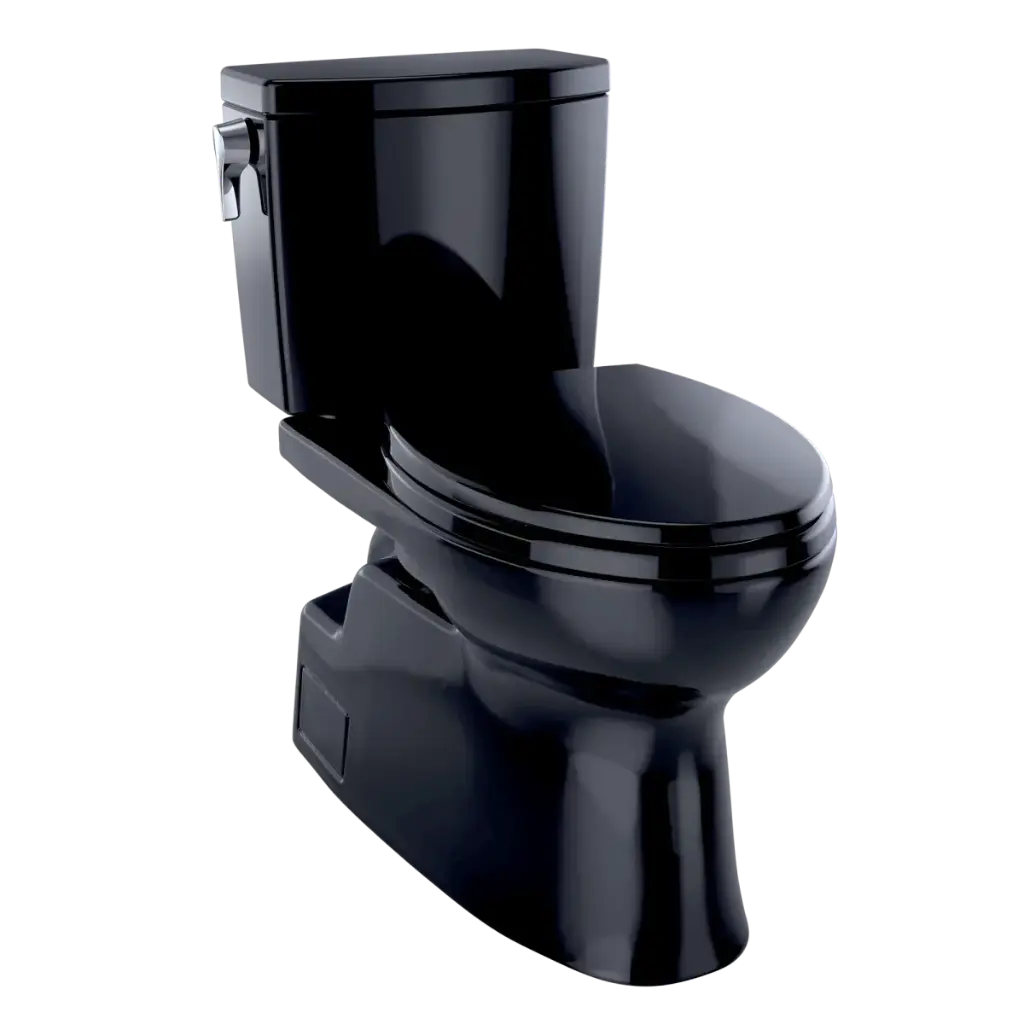

TOTO MS474124CUF#51 Vespin II 1G Two Piece Elongated Toilet Ebony
Vespin® II 1G Two-Piece Toilet, Elongated Bowl - 1.0 GPF - WASHLET®+ Connection
SKU: MS474124CUF#51
This toilet offers an elongated bowl and attractive two-piece design. Also features our Tornado Flush flushing system (see Smartfact below) and CEFIONTECT an extraordinarily smooth, ion-barrier surface to keep your toilet bowl clean. Universal height.
Product Components
CT474CUFT40#51 - Bowl
ST453UA#51 - Tank and Cover
SS124#51 - SoftClose Seat
MODELS
MS474124CUFG
With CEFIONTECT ceramic glaze (#01, #03, #11, #12)
MS474124CUF
Same as above less CEFIONTECT (#51 Only)
MS474124CUFRG
With right-hand trip lever & CEFIONTECT ceramic glaze
OPTIONAL COMPONENTS
THU485(#01, #BN, #PN, #MBL)
Left Hand Trip Lever - Cotton, Brushed Nickel, Polished Nickel, Matte Black
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
Features
Tornado Flush™ flushing system, ultra low consumption (1.0GPF/3.8LPF)
Skirted Design
CEFIONTECT® Ceramic Glaze
Universal Height
Elongated front bowl and tank set with SOFT CLOSE® Seat
12" Uni-Fit rough-in
Optional 10" or 14" Uni-fit rough-in
Chrome trip lever
SPECIFICATIONS
Water Use 1.0 GPF/3.8LPF
Flush System TORNADO FLUSH
Min. Water Pressure 8 psi (static)
Water Surface 6-7/8" x 9-3/4"
Trap Diameter 2-1/8"
Rough-in 12" (10" or 14" Optional)
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight
CT474CUF(G)T40: 75lbs.
ST453UA: 28lbs.
ST453UR: 28lbs.
Shipping Dimensions
CT474CUF(G)T40
30-1/8"L X 16-3/4"W X 22"H
ST453UA & ST453UR
18"L X 9-1/2"W X 16-1/2"H
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), EPA Watersense, State of Massachusetts , City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, CALGreen Title 24, City of Los Angeles Water Efficiency Ordinance, California Energy Commission Standards
BAA Buy American Act Compliant
ADA compliant (when installed with trip lever located on the approach side)
Complies with CA Prop 65 warning requirements
Product Specifications

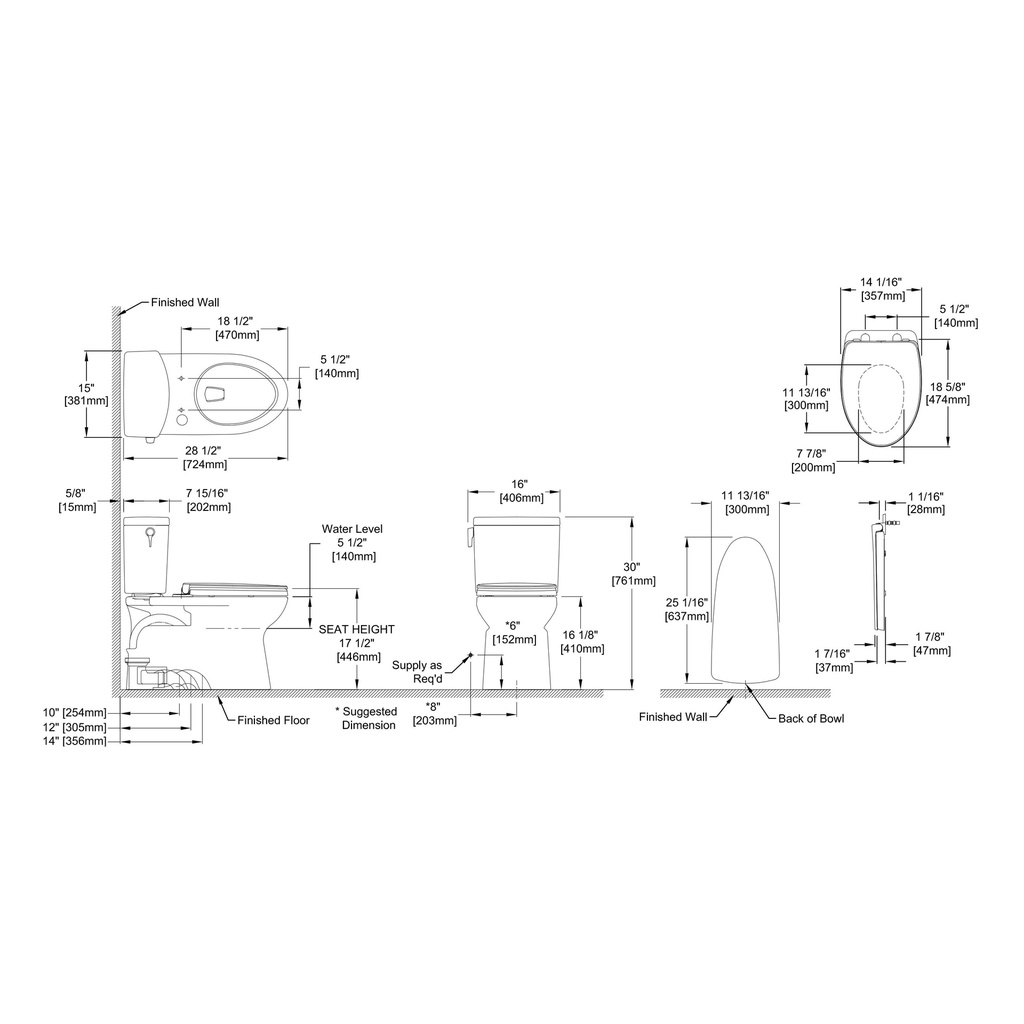

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
