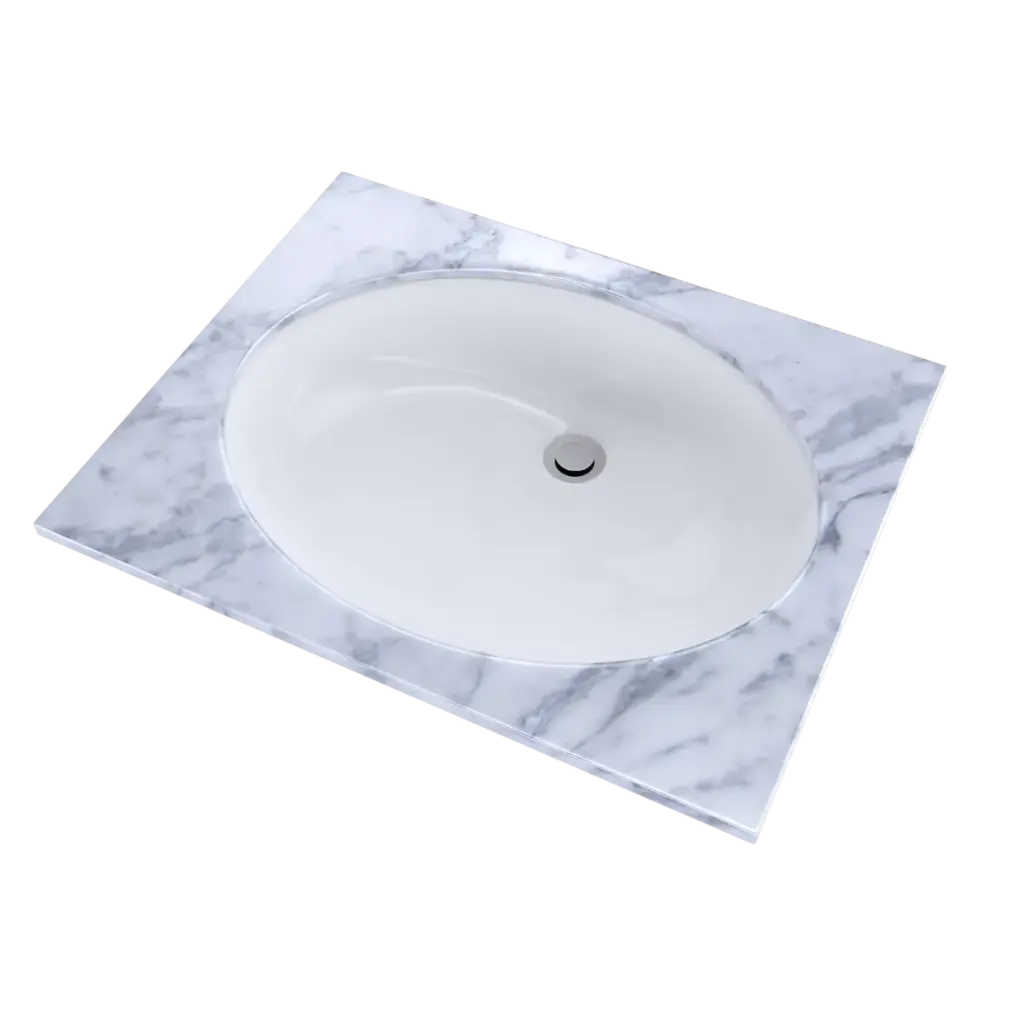

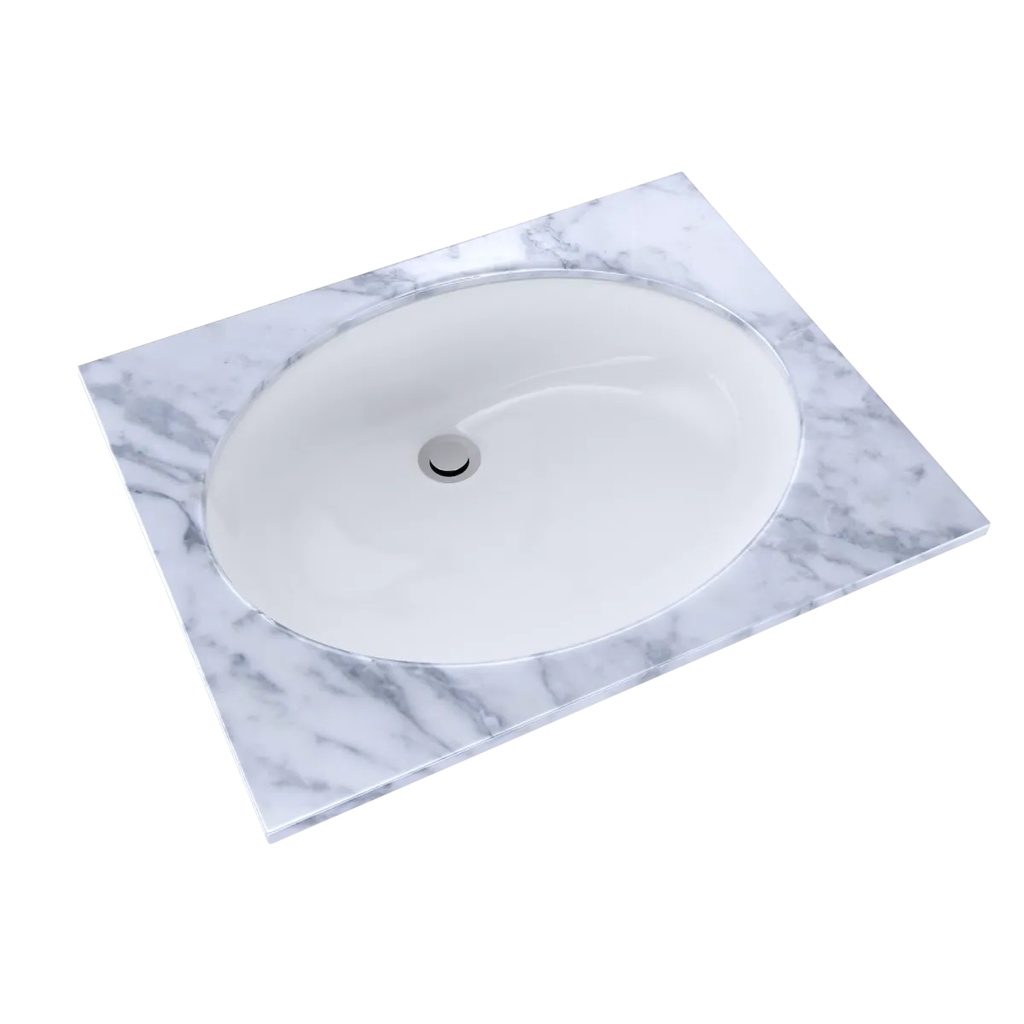

TOTO LT597G#01 Dantesca Undercounter Lavatory Cotton
Dantesca? Undercounter Lavatory
SKU: LT597G#01
This lavatory offers a rimless, circular design and concealed front overflow. Features a generously deep basin and the option to upgrade to CEFIONTECT?, an extraordinarily smooth, ion-barrier surface that helps to keep the lavatory cleaner longer. ADA compliant.
MODELS
LT597G
With CEFIONTECT glazing (#01, #03, #11, #12)
LT597
Without CEFIONTECT glazing (#51 only)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CEFIONTECT)
Features
CEFIONTECT? Ceramic Glaze
Installation Template, Mounting Hardware Included
Spacious Basin
Concealed Front Overflow
FEATURES
19"x 15"
CEFIONTECT? ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Concealed front overflow
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 21-1/4"W x 17-1/4"D
Basin 19"W x 15"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 19.5 lbs.
Shipping Dimensions 22"W x 18-1/2"L x 8-1/2"H
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 19"in length and 15" in width.
Product shall be with overflow and lavatory shall include mounting assembly and be ADA compliant.
Lavatory model LT597G shall have CEFIONTECT ceramic glaze.
Lavatory shall be TOTO Model 597_________.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others

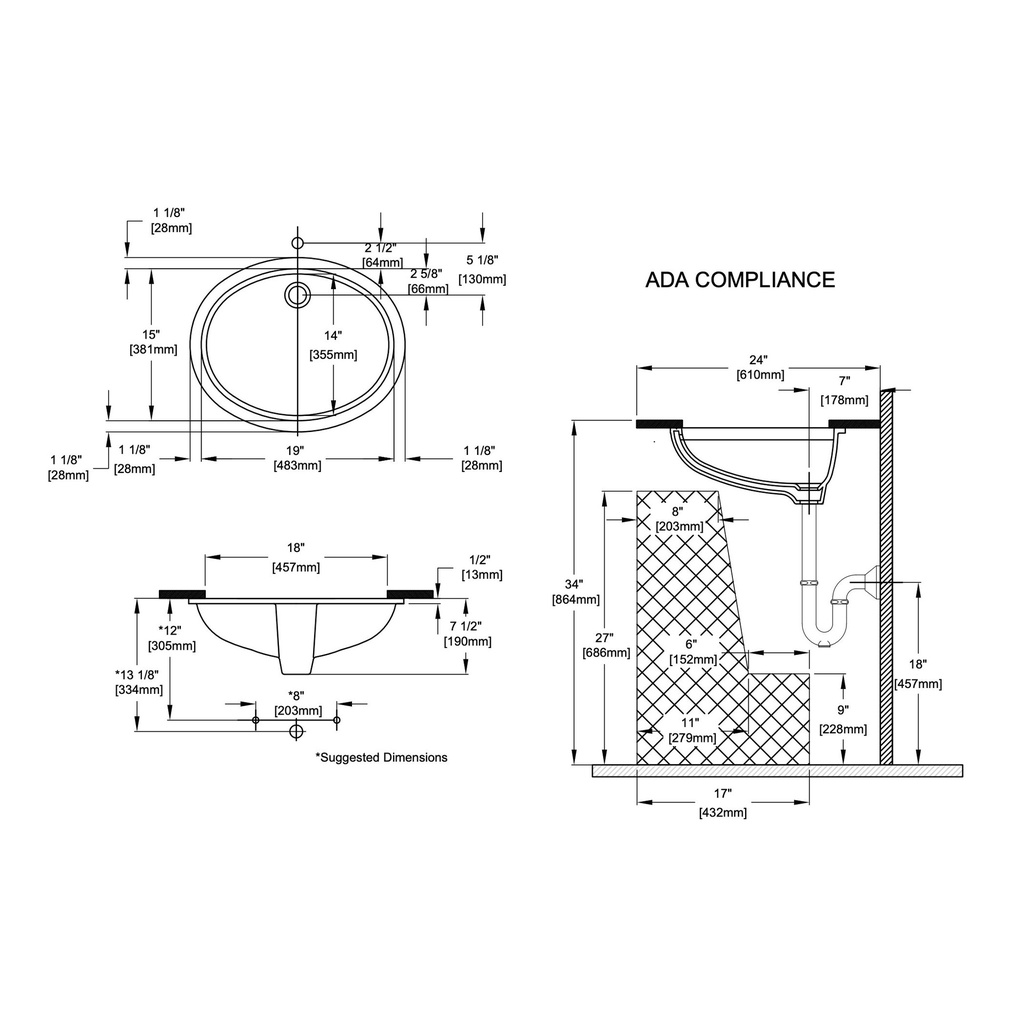

Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 205mm (8-1/8") minimum from front edge.
Complies with CA Prop 65 warning requirements
