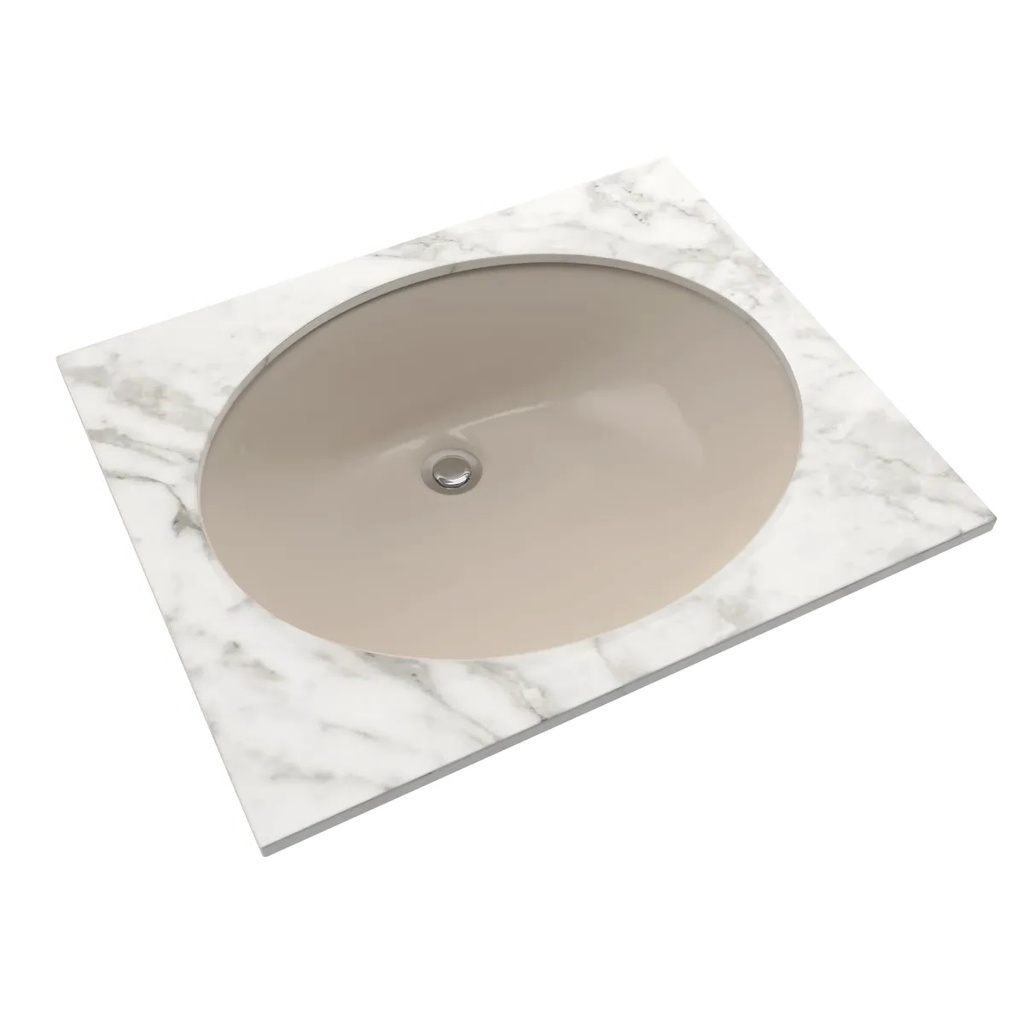

TOTO LT579G#03 Rendezvous Undercounter Lavatory Bone
Rendezvous? Undercounter Lavatory
SKU: LT579G#03
Space-saving and elegant, this lavatory features a beautifully rimless, circular design. With a generously wide basin and concealed front overflow Features CEFIONTECT? technology, an extraordinarily smooth, ion-barrier surface that helps to keep the lavatory cleaner longer. ADA compliant.
MODELS
LT579G
With CEFIONTECT glazing (#01, #03, #11, #12)
LT579
Without CEFIONTECT glazing (#51 only)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CEFIONTECT)
Features
Installation Template and Mounting Hardware Included
Spacious Basin
Concealed Front Overflow
CEFIONTECT? Ceramic Glaze
FEATURES
17"x 14"
CEFIONTECT? ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Concealed front overflow
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Overall size 19-1/4"W x 16-1/4"D
Basin 17"W x 14"D
Cutout 16"W x 13"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 17.4 lbs.
Shipping Dimensions 22"W x 8-1/2"H x 18-1/2"L
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 17"in length and 14" in width.
Product shall be with overflow and lavatory shall include mounting assembly and be ADA compliant.
Lavatory model LT579G shall have CEFIONTECT ceramic glaze.
Lavatory shall be TOTO Model LT579_________.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 159mm (6-1/4") minimum from front edge.
Complies with CA Prop 65 warning requirements
Product Specifications

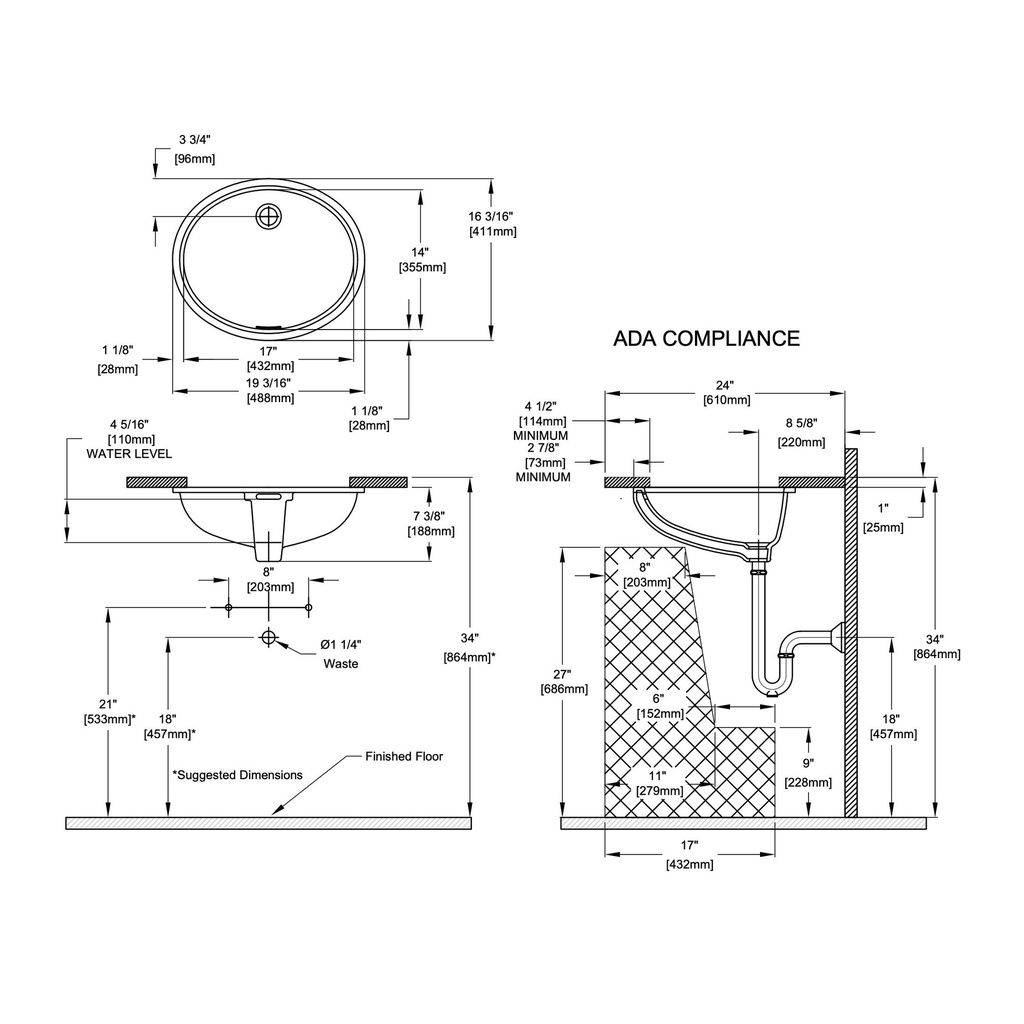

CAD Drawing
