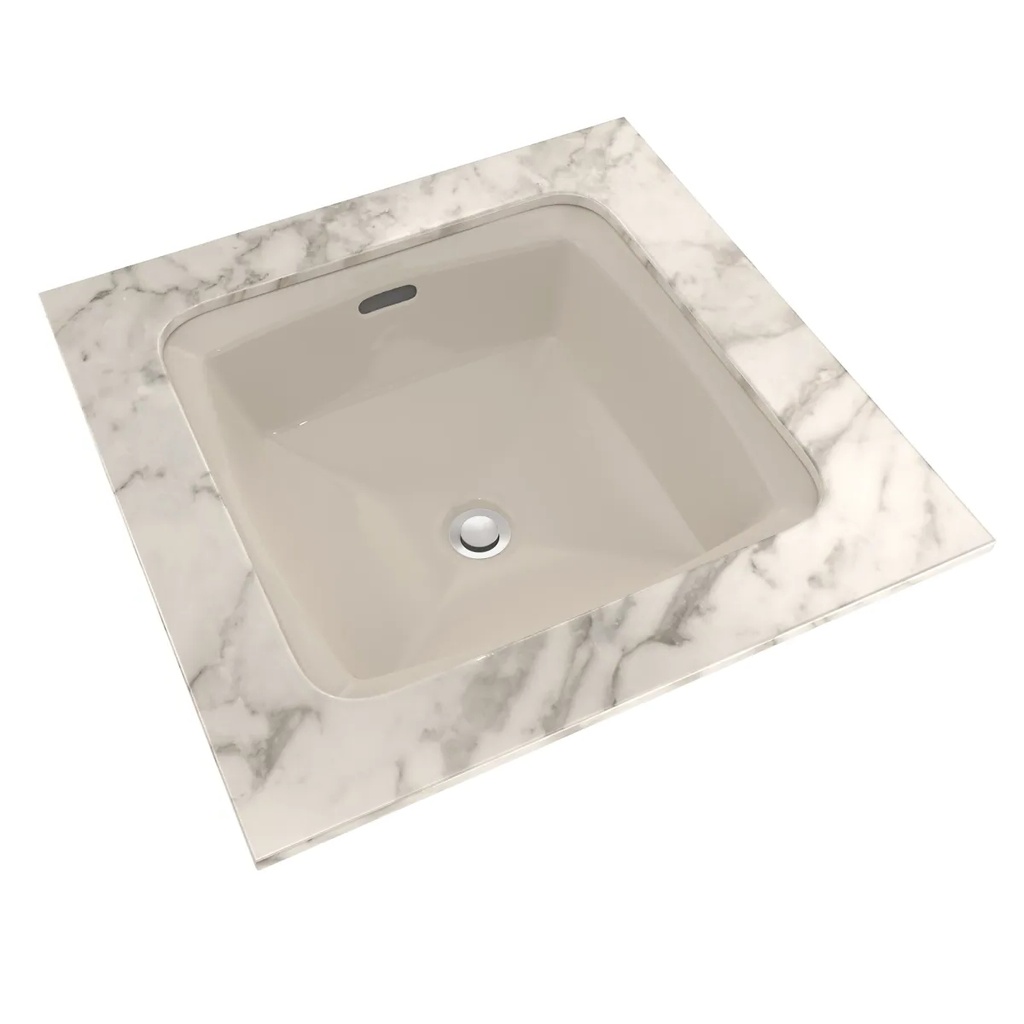

TOTO LT491G#12 Connelly Undercounter Lavatory Sedona Beige
Connelly? Undercounter Lavatory
SKU: LT491G#12
LIMITED INVENTORY
Created with a look of modern simplicity, this lavatory features a beautifully rimless, square design and generously spacious basin. ADA compliant.
MODELS
LT491G - with CeFiONtect ceramic glaze
(#01, #03, #11, #12)
LT491 - without CeFiONtect ceramic glaze (#51)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
Features
CEFIONTECT? Ceramic Glaze
Installation Template and Mounting Hardware Included
Spacious Basin
Rear Overflow
FEATURES
Counter Cutout: 14" x 14"
Square Undercounter Lavatory
Optional CeFiONtect? ceramic glaze minimizes debris, mold and bacteria from sticking to porous, ceramic surfaces
ADA compliant (with overflow to the rear)
Vitreous china
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" (32 mm)
Size 17" (433 mm) x 17" (433 mm)
Counter Cutout 14" (356mm) x 14" (356mm)
Basin 14 1/2" (370mm) x 14 1/2" (370mm)
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 24 lbs.
Shipping Dimensions 22-1/4"W x 18-3/4"D x 9-3/4"H
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Counter cutout shall be 14" in length and 14" in width.
Product shall be with rear overflow and lavatory shall include mounting assembly.
Lavatory shall have CeFiONtect ceramic glaze.
Lavatory shall be TOTO Model LT491__.
CODES/STANDARDS

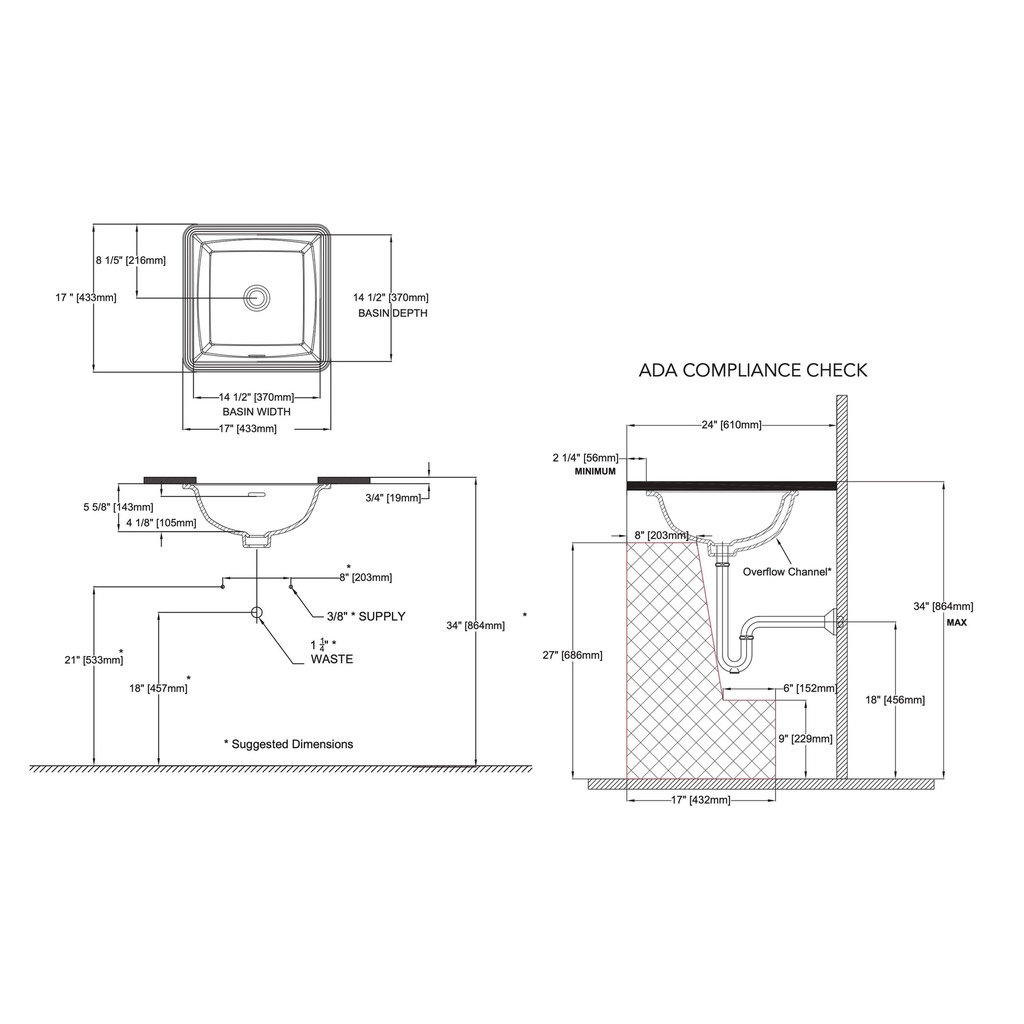

Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 64mm (2-1/2") minimum from front edge.
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
