TOTO CWT9548CEMFX#01 Neorest WX2 Dual Flush Wall Hung Toilet Cotton White
NEOREST® WX2 Wall-Hung Toilet - 1.2 GPF & 0.8 GPF
SKU: CWT9548CEMFX#01
TOTO’s NEOREST WX2 wall-hung model blends cutting-edge technology with a sleek space-saving design, offering unparalleled comfort, hygiene, and sustainability for a truly sophisticated bathroom experience.
Product Components
CT9548CEFX#01 - Bowl
SN9548MX#01 - Top Unit
WT175MA - In-Wall Tank System
YT990#N - Push Plate
FEATURES
NEOREST WX2
Sleek, space-saving wall-hung Smart Bidet Toilet with integrated personal cleansing and comfort features
ACTILIGHT® CLEAN LIGHT technology built into the lid
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Ultra high-efficiency TORNADO FLUSH® system - 1.2 GPF / 0.8 GPF (4.5 LPF / 3.0 LPF)
Auto flush - with back-up manual flush for power outages
Universal Height, ADA compliant
Touchless auto open/close lid
EWATER+® auto-cleans wand, bowl, and under-seat after every use
PREMIST® automatically mists the bowl before each use
Self-cleaning wand cleans itself inside and out before and after every use
CLEAN RESIN® keeps wand and seat cleaner, more hygienic, and effortless to maintain
Gentle aerated, warm water, front and rear spray with oscillating and pulsating features
Adjustable spray position, water temperature, and water pressure
Instantaneous water heater for continuous warm water and energy savings
Warm air dryer with five variable temperature settings
Automatic air deodorizer
Multifunction ergonomic stick-style remote control with personalized memory settings for up to 4 users
Heated seat with temperature control
Seamless seat design eliminates the gap where dirt collects
Night light illuminates beneath the toilet and inside of the bowl
Automatic and programmable energy saving systems
NEOREST In-Wall Tank Unit
Ultra high-efficiency dual flushing system - 1.2 GPF / 0.8 GPF (4.5 LPF / 3.0 LPF)
Adjustable 15”-19” mounting height
Supports up to 880 lbs
Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
Copper pipe supply line
MODELS
CT9548CEFX#01
Bowl Unit
SN9548MX#01
Top Unit
WT175MA
In-Wall Tank System (Copper Pipe)

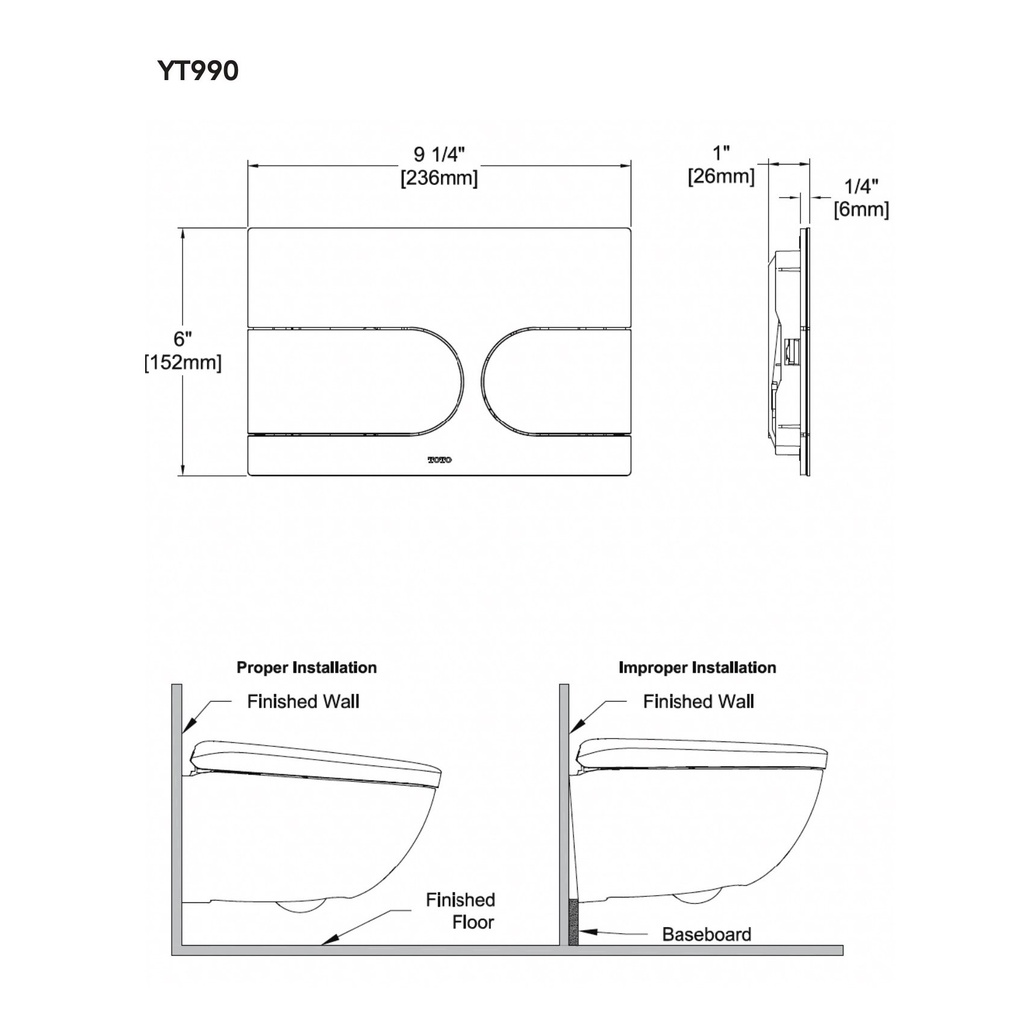

YT990#N
Round Push Plate (Nickel)
SPECIFICATIONS

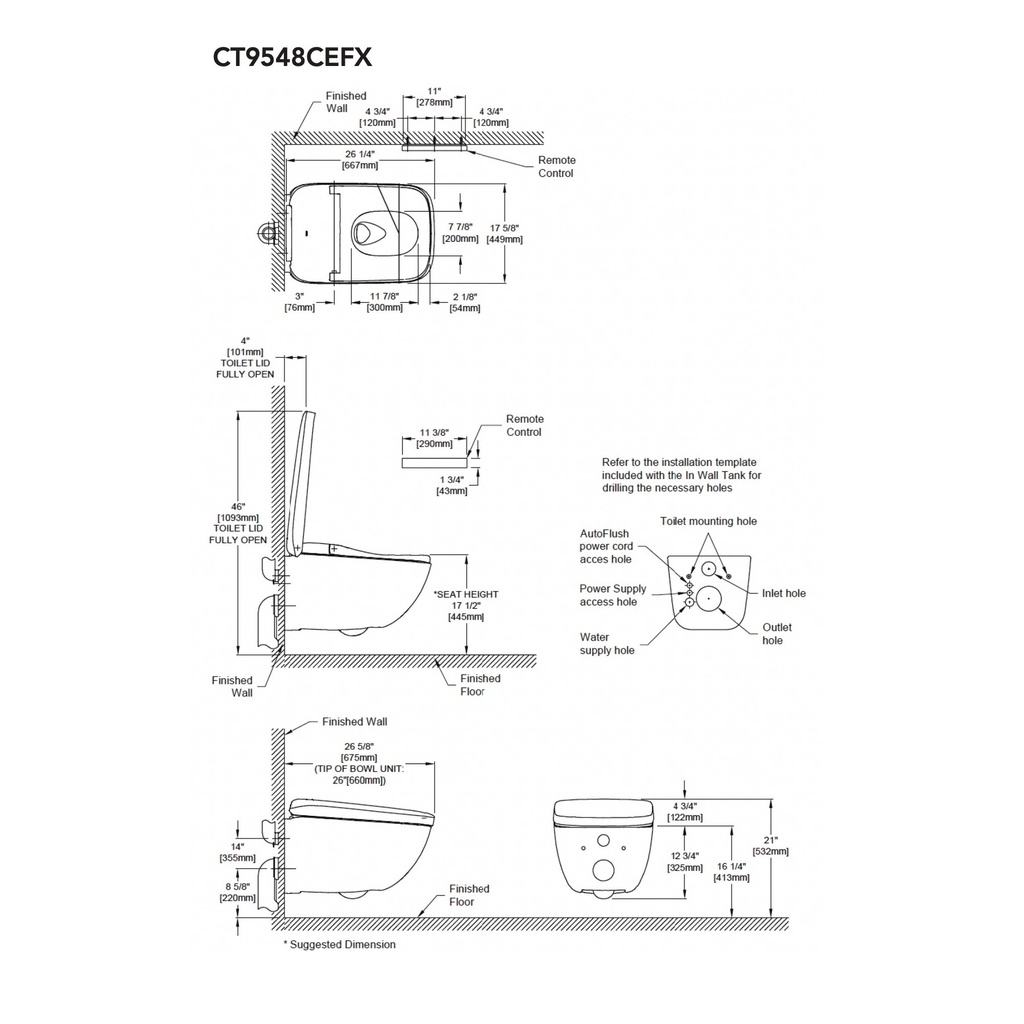

CT9548CEFX
Water Use 1.2 / 0.8 GPF
(4.5 / 3.0 LPF)
Flush System TORNADO FLUSH®
Water Pressure
Minimum:
7.25 PSI (Dynamic)
Maximum:
108.75 PSI (Static)
Water Surface 5-5/8” x 4-1/8
Trap Diameter 2-1/4”
Trap Seal 2”
Warranty
Three Year Limited
(Residential)
One Year Limited
(Commercial)
Material Bowl Unit: Vitreous China Top Unit: Plastic
Shipping Weight 88.4 lbs
Shipping Dimensions 31-1/4” x 18-3/8” x 19-1/4
SN9548MX
Power Rating AC 120 V 60 Hz
Power Consumption 1294 W
Max Power
Consumption 1452 W
Power Cord Length 1.6 ft (0.5 m)
Spray Volume
Rear Cleansing:
0.08 – 0.11 gal/min
Rear Soft Cleansing:
0.08 – 0.11 gal/min
Front Cleansing:
0.08 – 0.11 gal/min
Wide Front Cleansing:
0.09 – 0.11 gal/min
Spray Features
Adjustable Water Temp:
86 – 104 ºF (30 – 40 ºC)
Safety Device: Temperature Fuse
Warm Air Dryer
Features
Adjustable Air Temp:
95 – 140 ºF (35 – 60 ºC)
Airflow Volume:
8.83 ft3/min (0.25 m3/min) Safety Device:
Temperature Fuse
Heated Seat Features
Adjustable Surface Temp:
82 – 97 ºF (28 – 36 ºC)
Safety Device: Temperature Fuse
Ambient Temperature 32 – 104 ºF (0 – 40 ºC)
Shipping Weight 28.7 lbs
Shipping Dimensions 31-1/4” x 20-5/8” x 9-7/8”

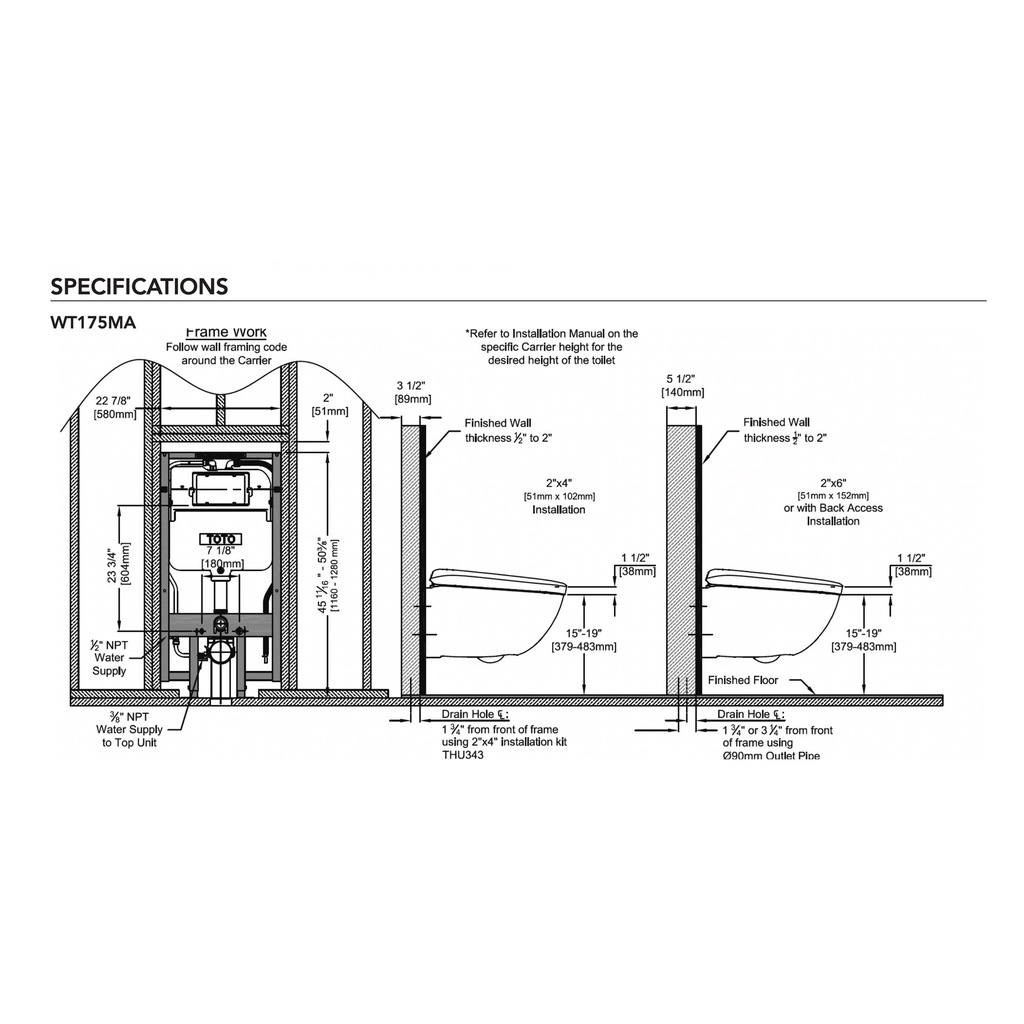

WT175MA
Water Use 1.2 / 0.8 GPF
(4.5 / 3.0 LPF)
Flush System Dual Flushing
Min Water Pressure 8 psi (static)
Max Water Pressure 108.75 PSI (static)
Installation Height 15” to 19”
Warranty One Year Limited
Material Various
Shipping Weight 44 lbs
Shipping Dimensions 47-1/4” x 26-3/16” x 5-7/8”
