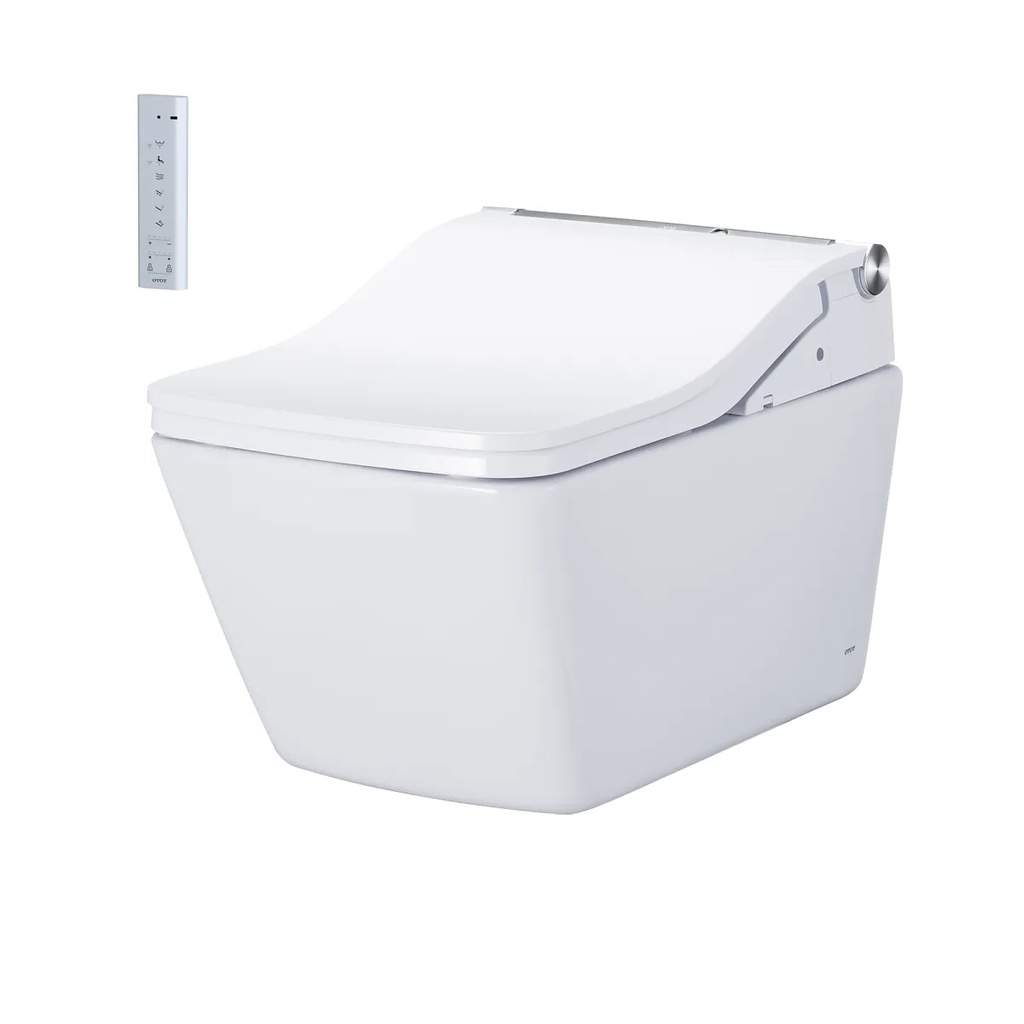

TOTO CWT4494549CMFGA#MS SW Wall Hung Toilet With Auto Flush Washlet Cotton
SP WASHLET®+ SW Wall-Hung Toilet - 1.28 GPF & 0.9 GPF - Auto Flush
SKU: CWT4494549CMFGA#MS
Complete wall-hung toilet package with WASHLET bidet seat and dual-flush in-wall tank system.
Product Components
CT449CFGT60#01 - Bowl
SW4549AT60#01 - WASHLET Bidet Seat
WT173MA - In-Wall Tank System
YT920#MS - Push Plate
FEATURES
SP Bowl
DYNAMAX TORNADO FLUSH® system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
WASHLET+ SW
Concealed supply connection for seamless installation
Gentle aerated, warm water, dual action spray with adjustable pressure and oscillating pulsating features
Adjustable variable temperature for spray and seat
Water PREMIST® of bowl before each use
Automatic air deodorizer
Convenient slim wireless remote, with illuminated touch pad
EWATER+® auto-cleans wand and bowl
Warm air drying
Night light
Auto Flush
Auto open/close lid

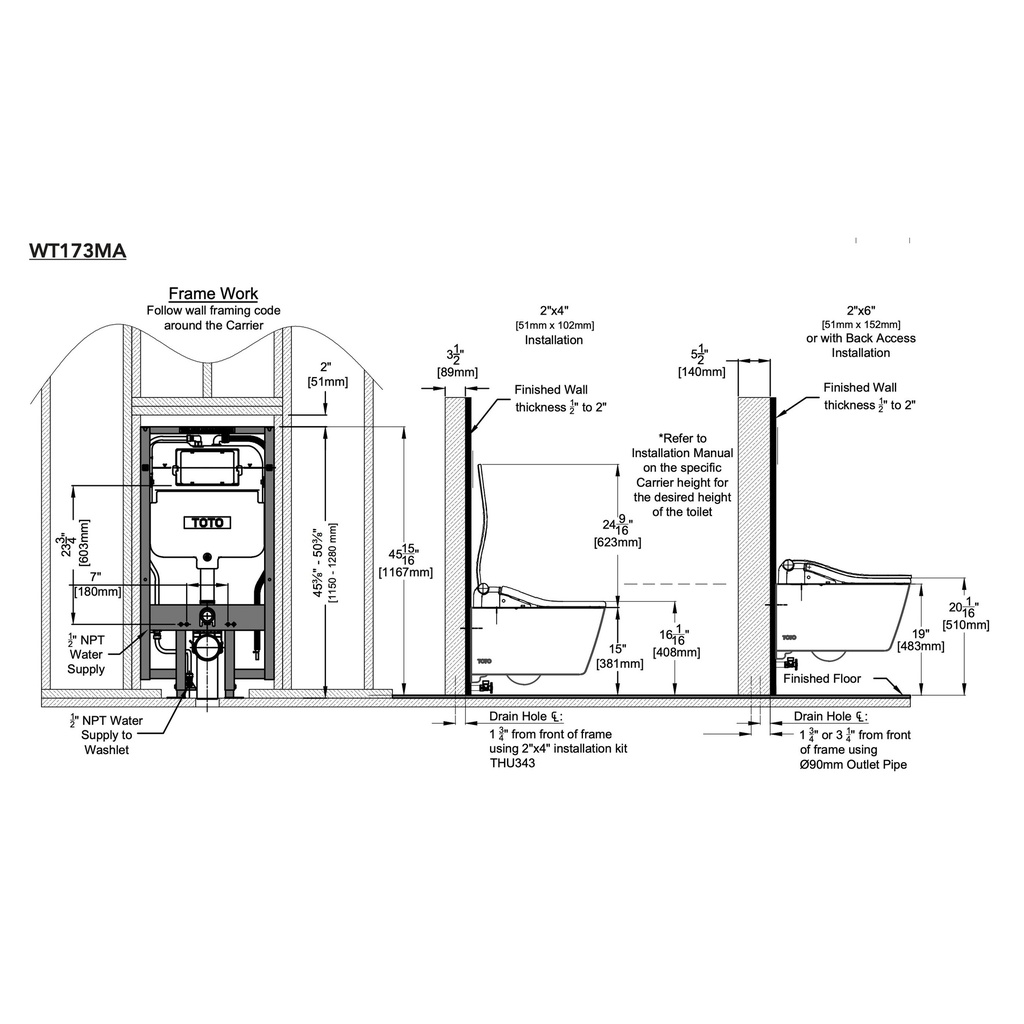

DuoFit In-Wall Tank
Dual flushing system, high-efficiency (1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF) Avg. flush 1.1 GPF
Adjustable 15"-19" mounting height
Saves up to 9" of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
COMPONENTS
CT449CFGT60#01
SP Wall-Hung Toilet
SW4549AT60#01
WASHLET+ SW
WT173MA
In-Wall Tank System (1.28 GPF/0.9 GPF)
YT920#MS
Matte Silver Basic Square Push Plate
SW4549AT60
Power Rating AC 120V-60Hz, 1282W
Power Cord 2.95 ft/120 cm Length
3 Wire / 4 Pin Plug Harness
Water Feature Rear: 9.1-14.5 oz/min
(Flow Rates) Front: 9.8-14.5 oz/min
Soft Rear: 9.1-14.5 oz min
Washing Spray Temp. Min: 86°F/30°C
Max: 104°F/40°C
Safety Device Thermal Fuse
Air Dryer Temp. Min: About 95°F/35°C
Max: About 140°F/60°C
Dryer Air Capacity 10.24 ft3
/min
Seat Warming Temp. Min: 82°F/28°C
Max: 97°F/36°C
Water Supply Pressure Min: 7.25 psi
Max: 108.75 psi
Ambient Temp. Min: 32°F/0°C
Max: 104°F/40°C
Warranty One Year Limited Warranty
Shipping Weight 20.3 lbs
Shipping Dimensions 26”L x 18” x 7-1/4”H
CT449CFGT60 WT173MA
Water Use 1.28 GPF & 0.9 GPF
Flush System DYNAMAX TORNADO FLUSH®
Min. Water Pressure 8 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19”
Trap Seal 2-1/8”
Warranty One Year Limited Warranty
Material Vitreous China Various
Shipping Weight 76 lbs.
Shipping Dimensions 16” L x 14”W x 24” H
Product Specifications

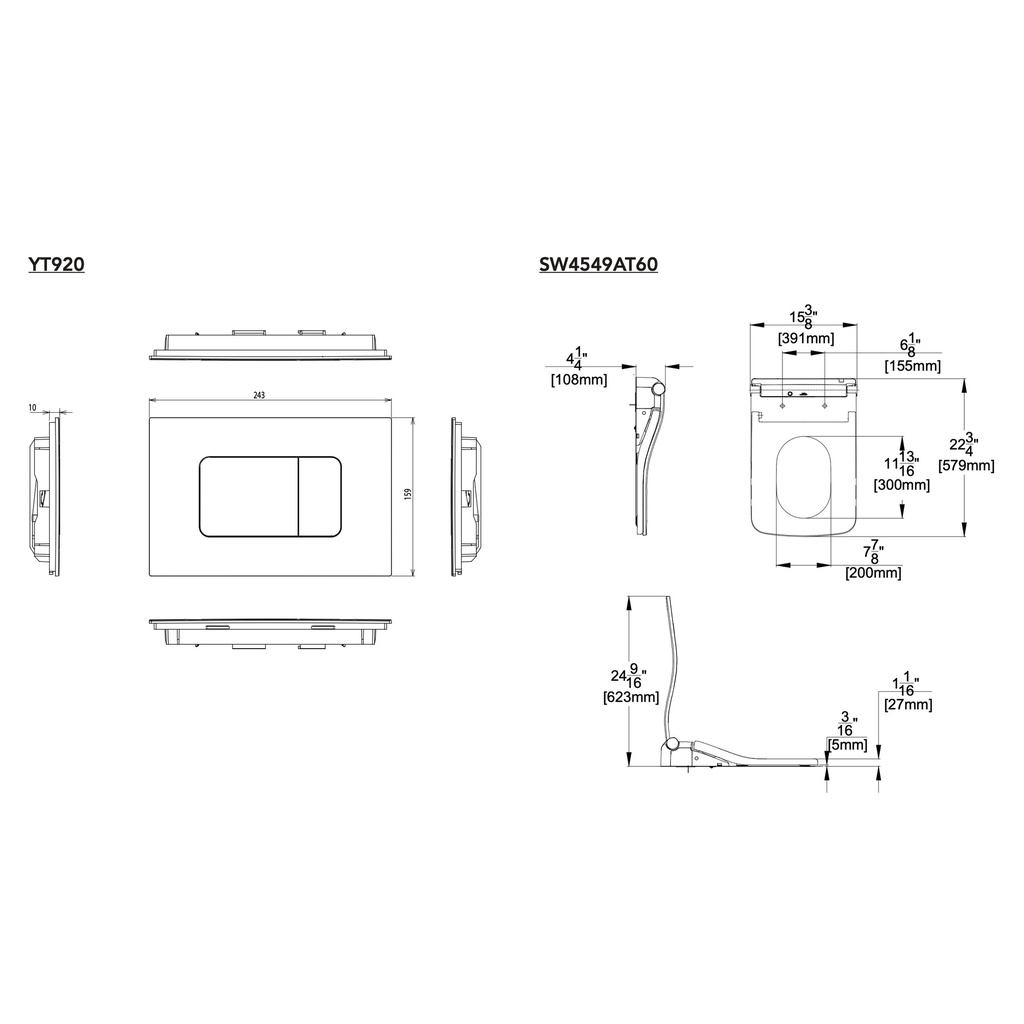

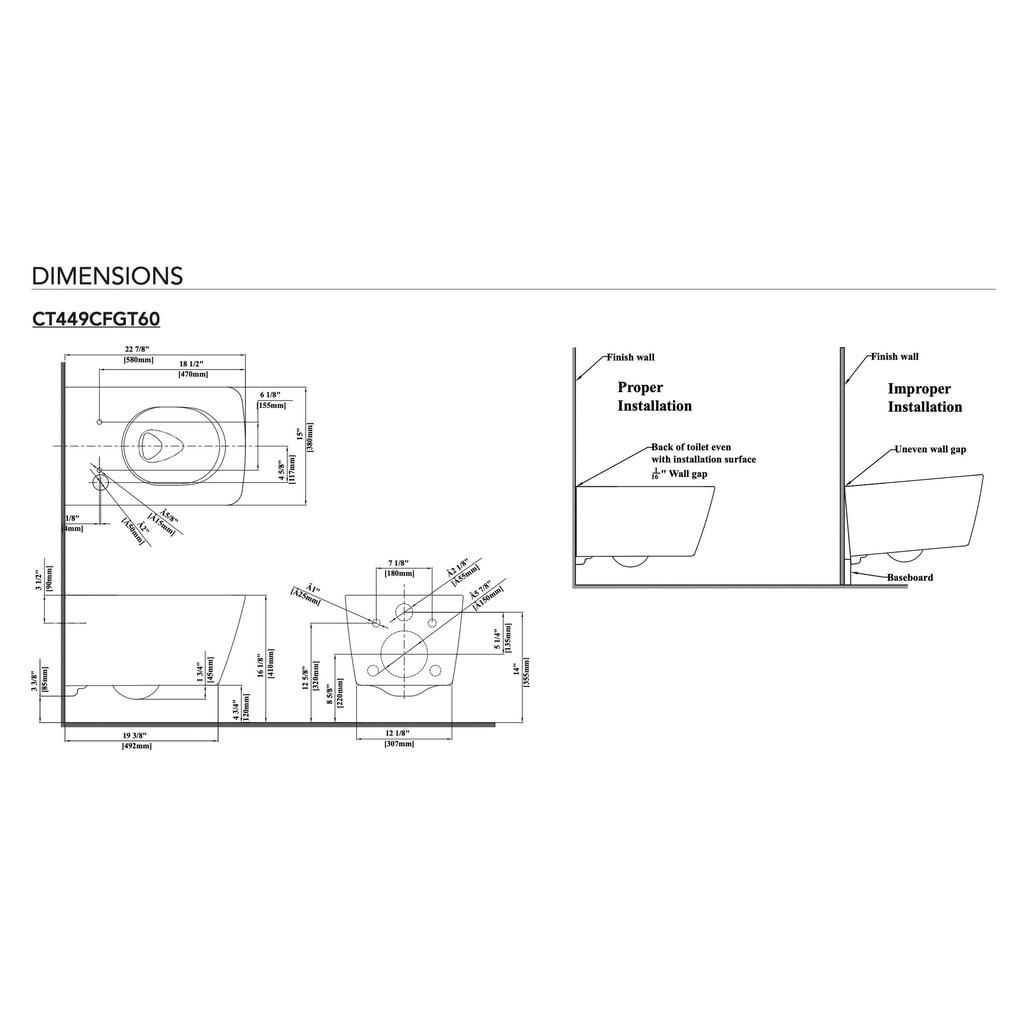

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
