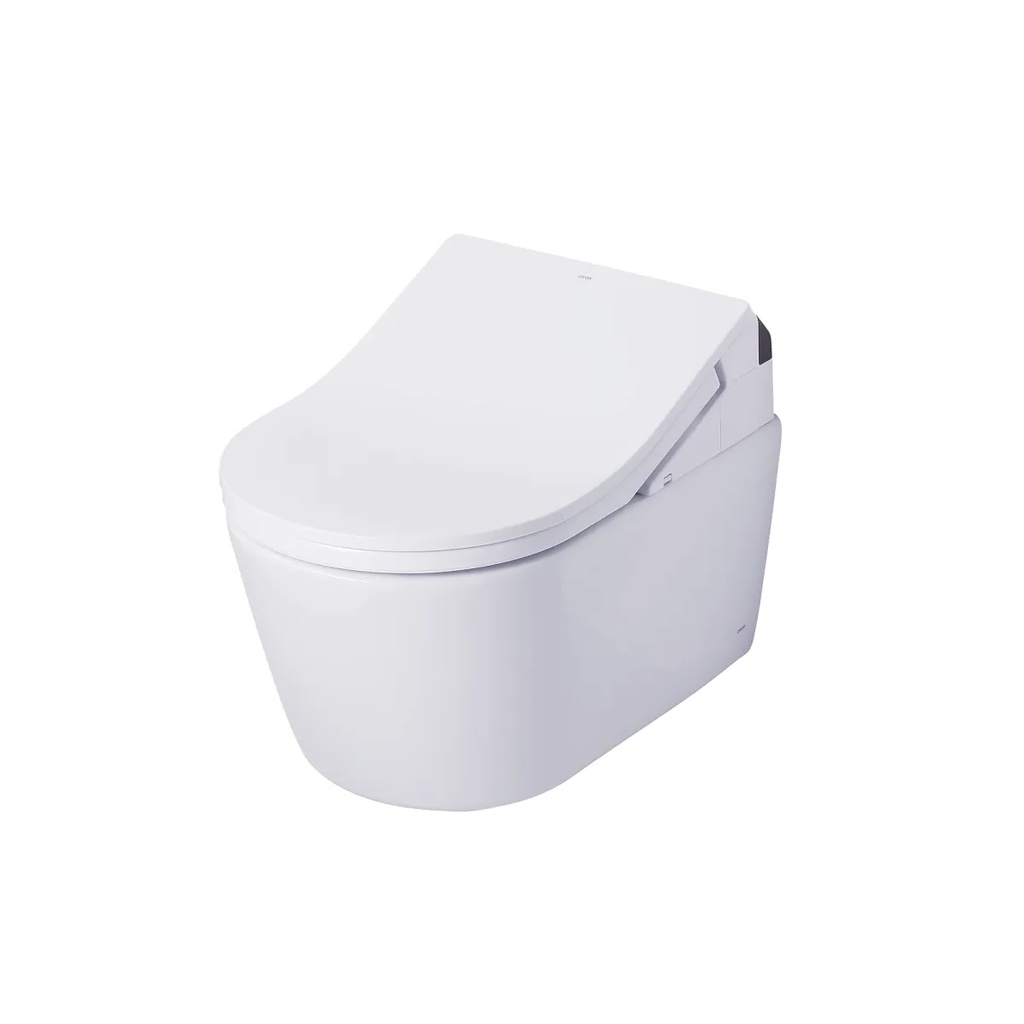

TOTO CWT4474047CMFGA#MS RX Wall Hung Auto Flush Toilet With Washlet Cotton
RP WASHLET®+ RX Wall-Hung Toilet - 1.28 GPF & 0.9 GPF - Auto Flush
SKU: CWT4474047CMFGA#MS
Complete Wall-Hung toilet package with bidet seat WASHLET and dual flush in-wall tank system.
Product Components
CT447CFGT60#01 - Bowl
WT173MA - In-Wall Tank System
SW4047AT60#01 - WASHLET Bidet Seat
YT930#MS - Push Plate
FEATURES
RP Bowl
DYNAMAX TORNADO FLUSH® system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
WASHLET+ RX
Concealed supply connection for seamless installation
Gentle aerated, warm water, dual action spray with adjustable pressure and oscillating pulsating features
Adjustable variable temperature for spray and seat
Water PREMIST of bowl before each use
Automatic air deodorizer
Convenient slim wireless remote, with illuminated touch pad
EWATER+® auto-cleans wand
DuoFit In-Wall Tank
Dual flushing system, high-efficiency (1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF) Avg. flush 1.1 GPF
Adjustable 15"-19" mounting height
Saves up to 9" of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
COMPONENTS
CT447CFGT60#01
RP Wall-Hung Toilet
SW4047T60#01
WASHLET+ RX

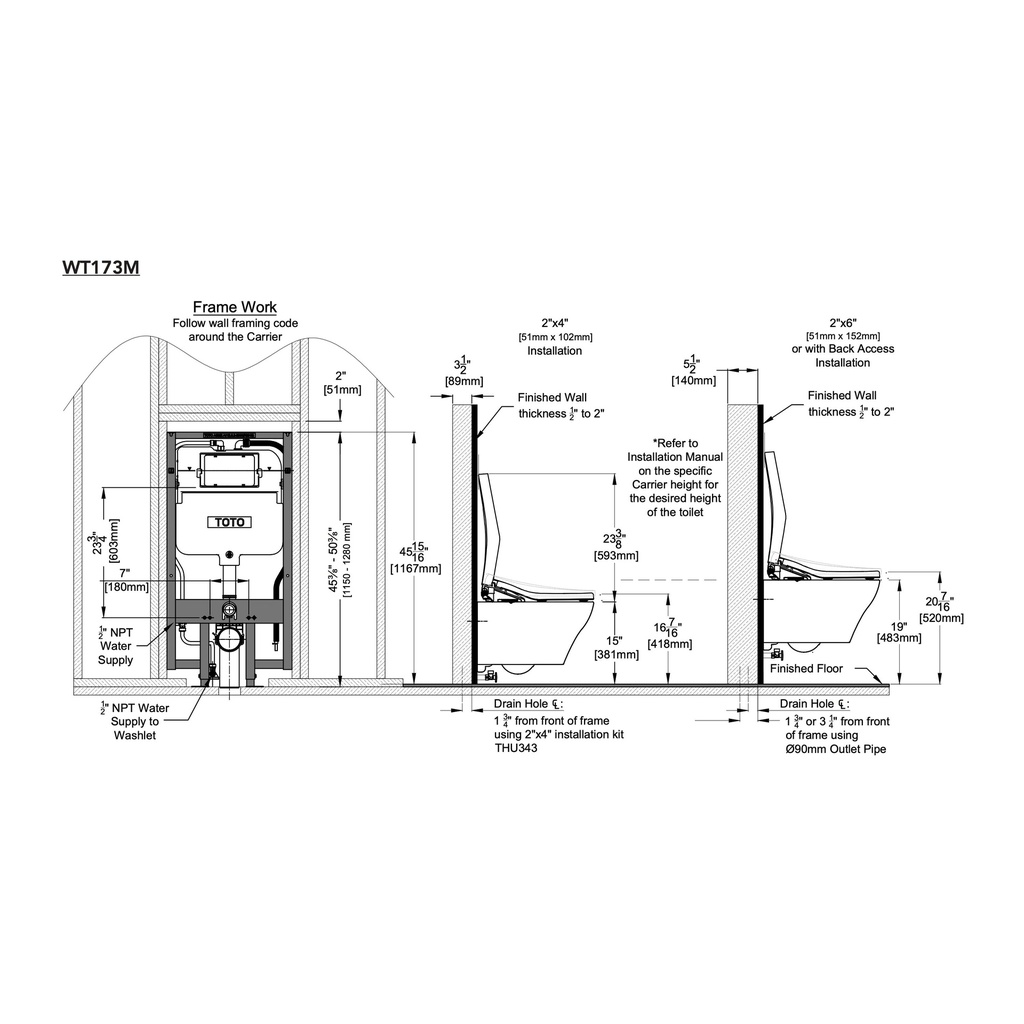

WT173M
In-Wall Tank System (1.28 GPF/0.9 GPF)
YT930#MS
Matte Silver Basic Round Push Plate
SW4047T60
Power Rating AC 120V-60Hz, 1274W
Power Cord 2.95 ft/120 cm Length
3 Wire / 4 Pin Plug Harness
Front: 9.8-14.5 oz/min
Water Feature Rear: 9.1-14.5 oz/min
(Flow Rates) Front: 9.8-14.5 oz/min
Soft Rear: 9.8-14.5 oz min
Washing Spray Temp. Min: 86°F/30°C
Max: 104°F/40°C
Safety Device Thermal Fuse
Seat Warming Temp. Min: 82°F/28°C
Max: 97°F/36°C
Water Supply Pressure Min: 7.25 psi
Max: 108.75 psi
Ambient Temp. Min: 32°F/0°C
Max: 104°F/40°C
Warranty One Year Limited Warranty
Shipping Weight 18 lbs.
Shipping Dimensions 26” x 17” x 9-3/4”

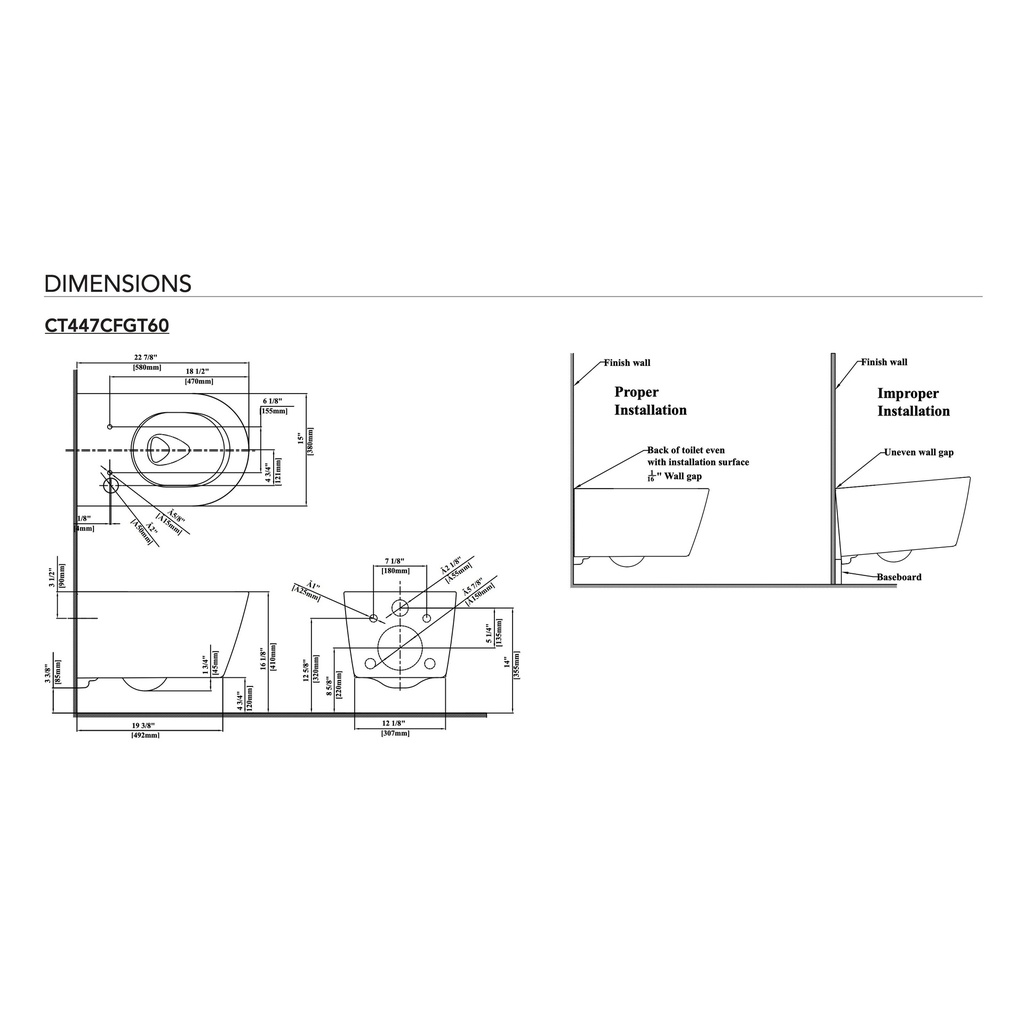

CT447CFGT60
Water Use 1.28 GPF & 0.9 GPF
Flush System DYNAMAX TORNADO FLUSH®
Min. Water Pressure 8 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19”
Trap Seal 2-1/8”
Warranty One Year Limited Warranty
Material Vitreous China Various
Shipping Weight 76 lbs.
Shipping Dimensions 16” L x 14”W x 24” H
Product Specifications
CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
