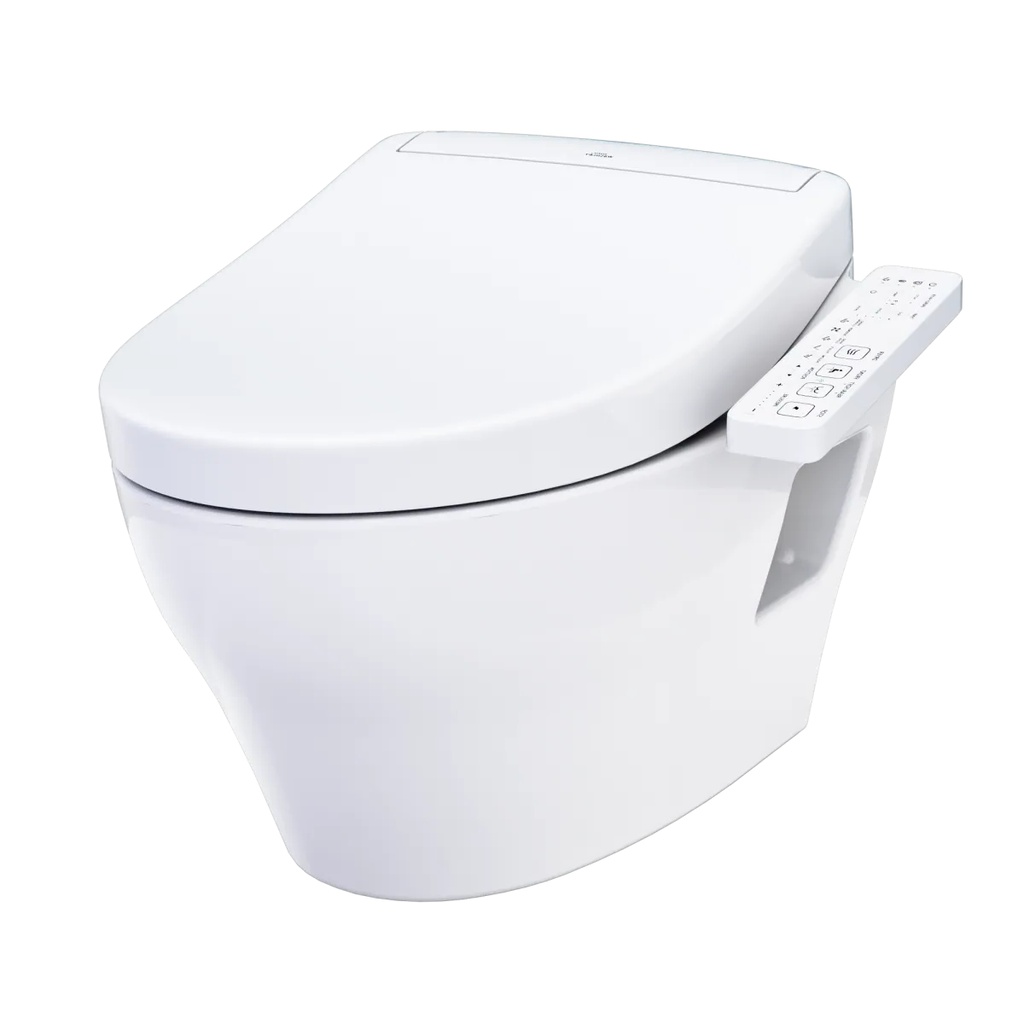

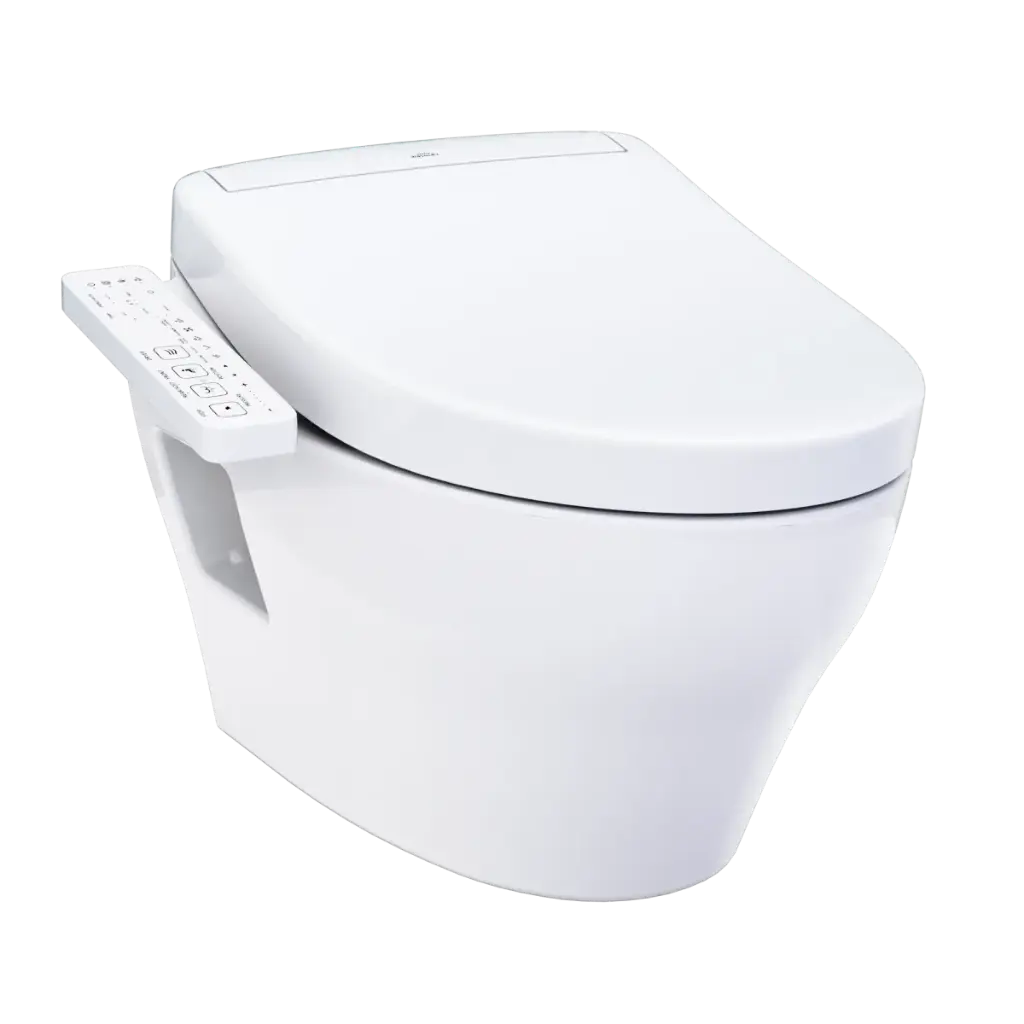

TOTO CWT4283346CMFG#MS S2 Wall Hung Toilet With Washlet Cotton
EP WASHLET®+ S2 Wall-Hung Toilet - 1.28 GPF/0.9 GPF
SKU: CWT4283346CMFG#MS
Complete Wall-Hung toilet package with WASHLET and dual flush in-wall tank system.
Product Components
CT428CFGT40#01 - Bowl
WT173M - In-Wall Tank System
SW3346#01 - WASHLET Bidet Seat
YT930#MS - Push Plate
THU805 - WASHLET Connection Kit
FEATURES
EP Bowl
Ultra high-efficiency DYNAMAX TORNADO FLUSH®
system -1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
Elongated shape front bowl
S2 WASHLET
High-tech electronic elongated bidet seat
See spec sheet SW3346 for WASHLET features
DuoFit In-Wall Tank
Ultra high-efficiency dual flushing system - 1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF) Avg. flush 1.03 GPF
Adjustable 15”-19” mounting height
Saves up to 9” of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
Copper supply line

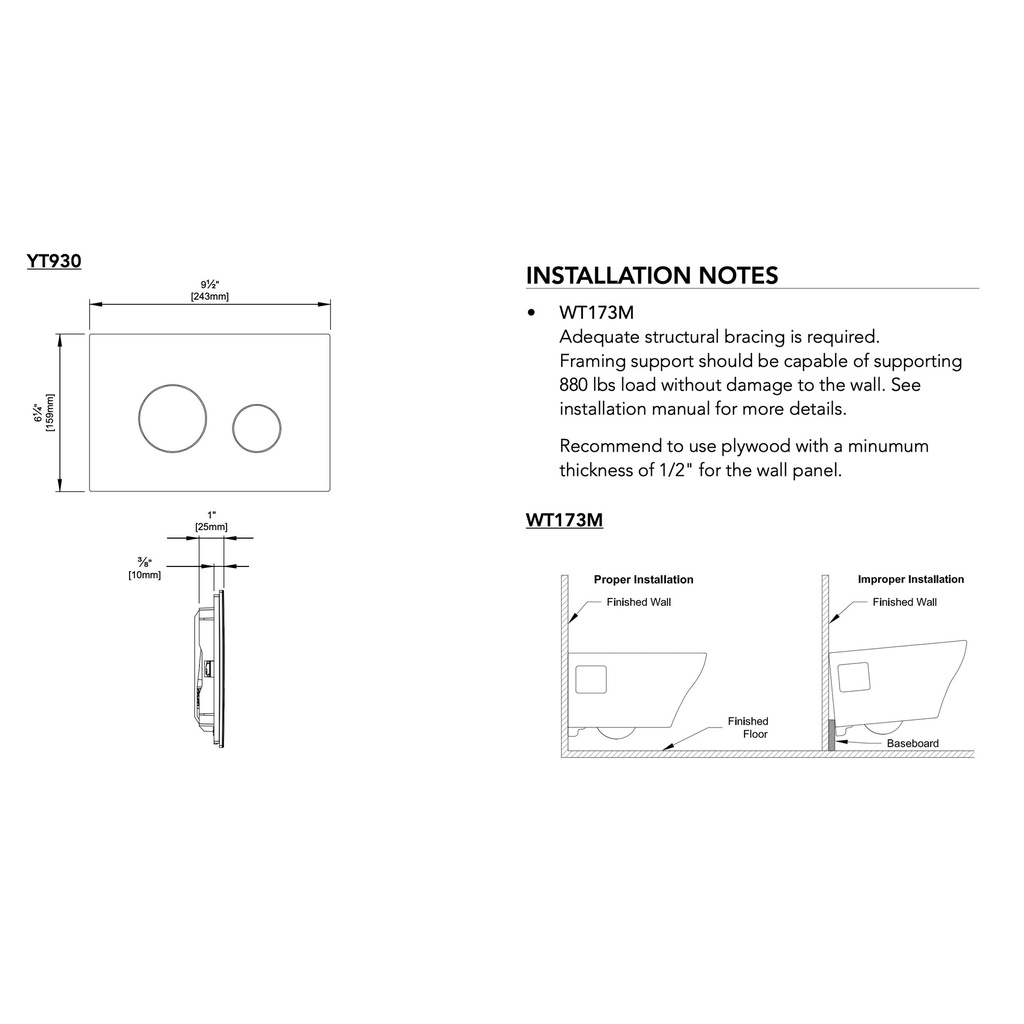

Push Plate
YT930#MS
Matte Silver Basic Round
MODELS
CWT4283346CMFG#MS
EP WASHLET+ with S2
CT428CFGT40#01
AP Wall-Hung Toilet
WT173M
In-Wall Tank System (Copper Pipe)
SW3346#01
S2 WASHLET+
Elongated WASHLET
THU805
WASHLET connection kit
YT930#MS
Matte Silver Basic Round Push Plate
SPECIFICATIONS
Water Use 1.28 / 0.9 GPF
Flush System DYNAMAX TORNADO FLUSH®
Min. Water Pressure 8 psi (static)
Max. Water Pressure 108.75 psi (static
Water Surface 5-1/2” x 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 68 lbs
Shipping Dimensions 22” L x 14.6” W x 16.5 H
Product Specifications

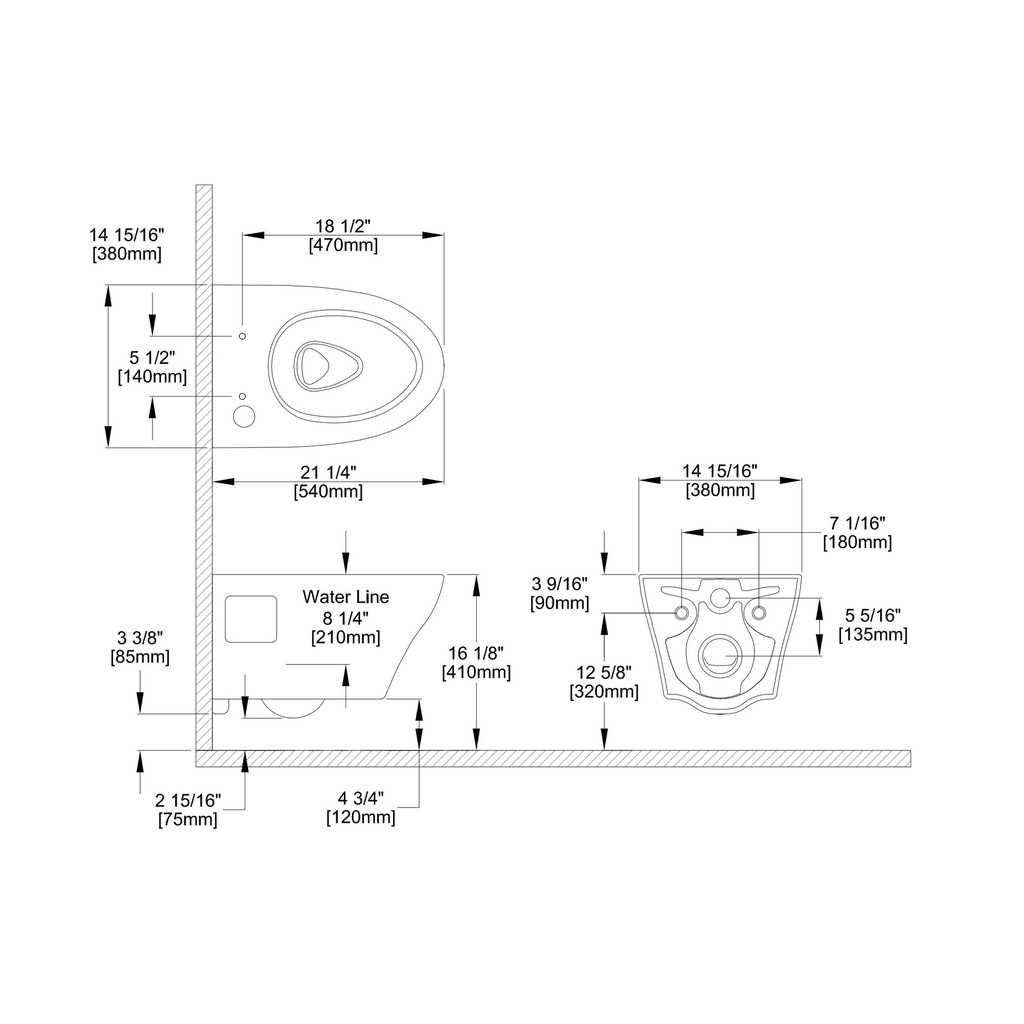

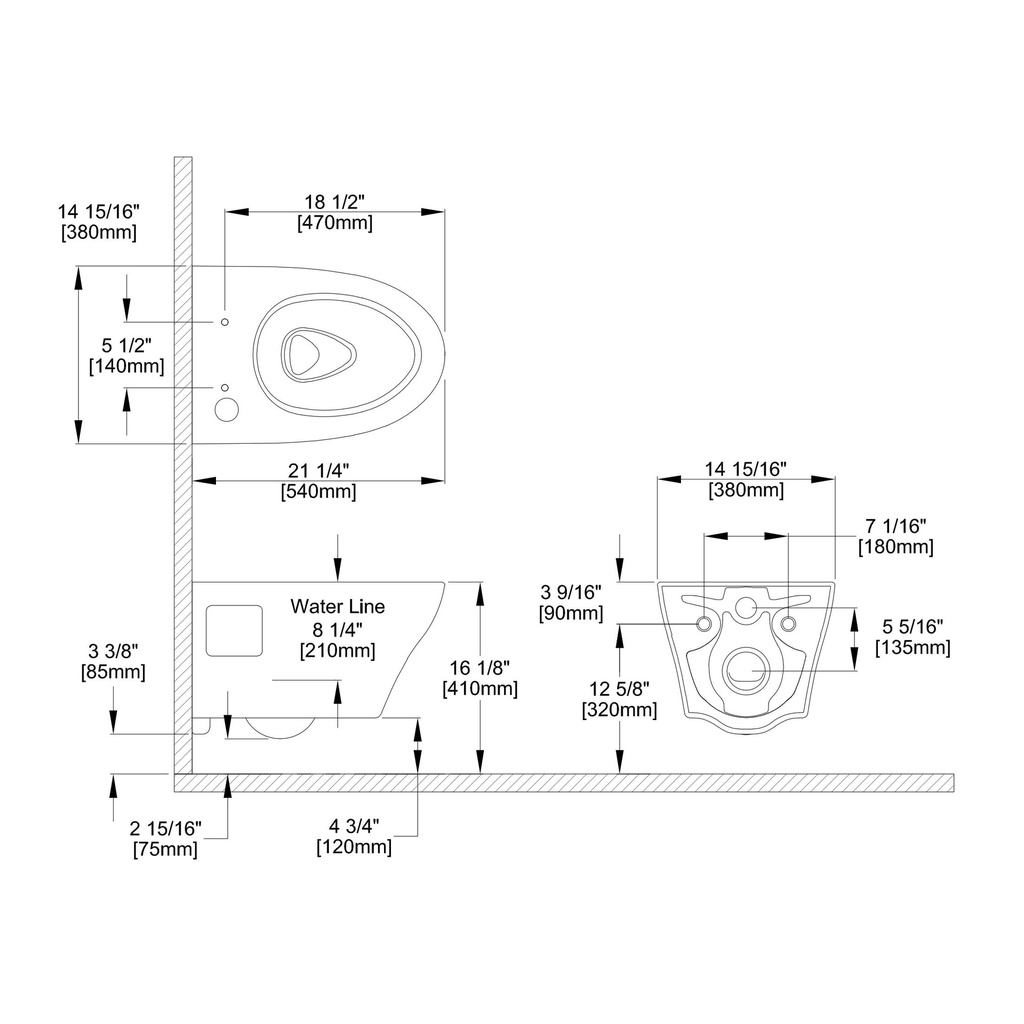

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
