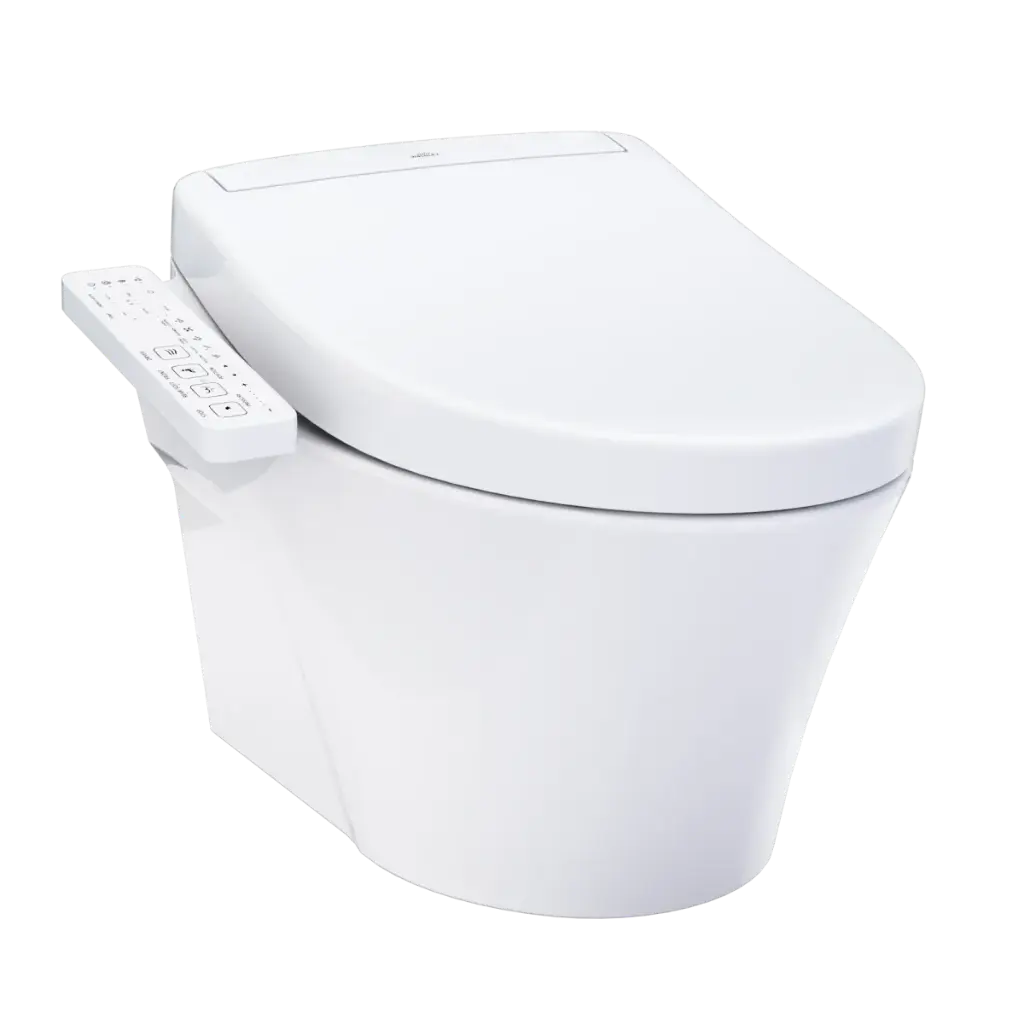

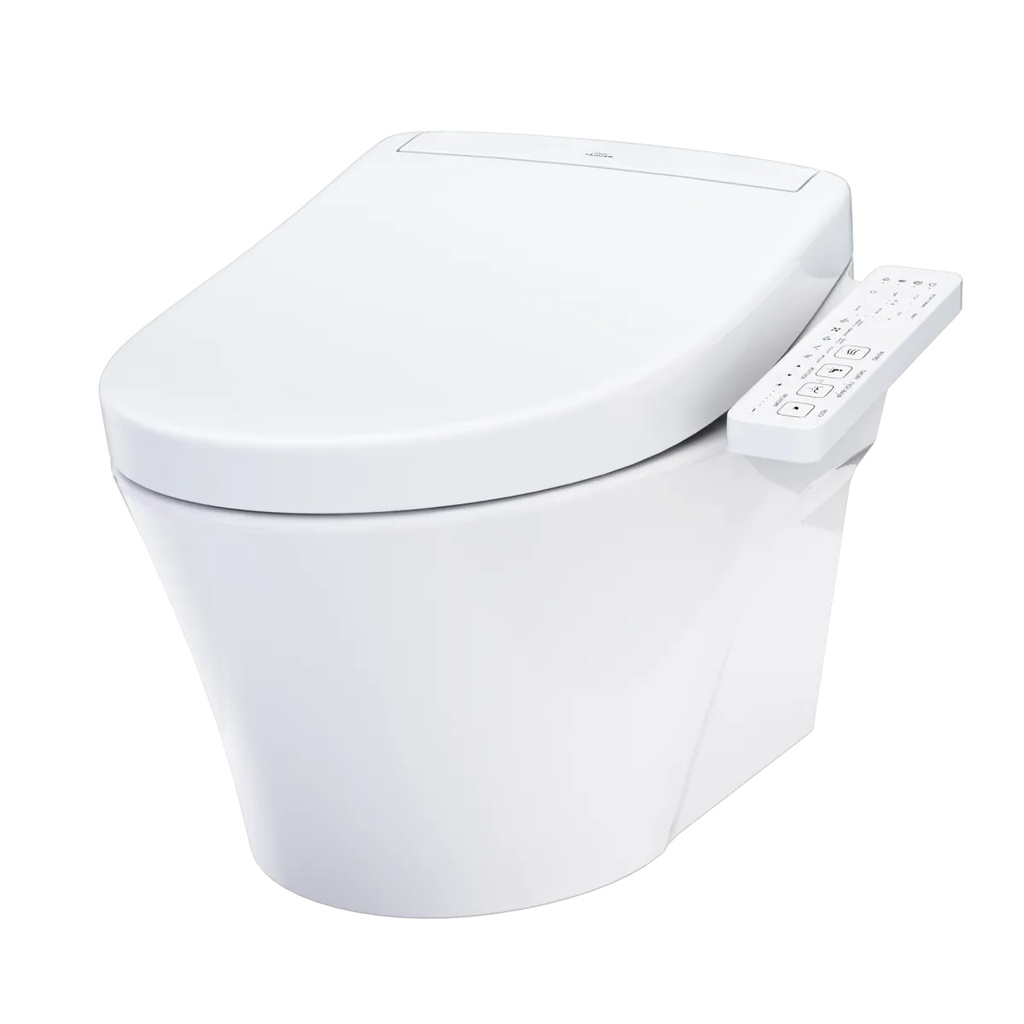

TOTO CWT4263346CMFG#MS S2 Wall Hung Toilet With Washlet Cotton
AP WASHLET®+ S2 Wall-Hung Toilet - 1.28 GPF/0.9 GPF
SKU: CWT4263346CMFG#MS
Complete Wall-Hung toilet package with bidet seat WASHLET and dual flush in-wall tank system.
Product Components
CT426CFGT40#01 - Bowl
WT173M - In-Wall Tank System
SW3346#01 - WASHLET Bidet Seat
YT930#MS - Push Plate
THU805 - WASHLET Connection Kit
MODELS
CWT4263346CMFG#MS
AP WASHLET+ with S2
CT426CFGT40#01
AP Wall-Hung Toilet
WT173M
In-Wall Tank System (Copper Pipe)
SW3346#01
S2 WASHLET+
Elongated WASHLET
THU805
WASHLET connection kit
YT930#MS
Matte Silver Basic Round Push Plate
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
DYNAMAX TORNADO FLUSH® system, high efficiency (1.28 GPF/0.9 GPF)
CEFIONTECT® Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
Matte Silver Basic Round Push Plate
Premist of the bowl before each use
Dual Action spray with oscillating and pulsating feature
Heated seat with temperature control
Automatic air deodorizer
Convenient arm control panel
EWATER+ auto-cleans the wand
Warm air drying with 3 variable temperature settings
Adjustable 15" - 19" mounting height
Saves up to 9" of floor space compared to standard floor mounted toilet
Support for up to 880 lbs.
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
1-pc blow molded polyethylene tank to prevent leaks
2" x 6" Polyethylene outlet included
Copper supply line with the WASHLET Connection
CWT4263346CMFG#MS CT426CFGT40
Water Use 1.28 / 0.9 GPF
Flush System DYNAMAX TORNADO FLUSH®
Min. Water Pressure 8 psi (static)
Max. Water Pressure 108.75 psi (static)
Water Surface 5-1/2” x 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19”
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China Various
Shipping Weight 68 lbs
Shipping Dimensions 22”L x 14.6”W x 16.5" H
Product Specifications

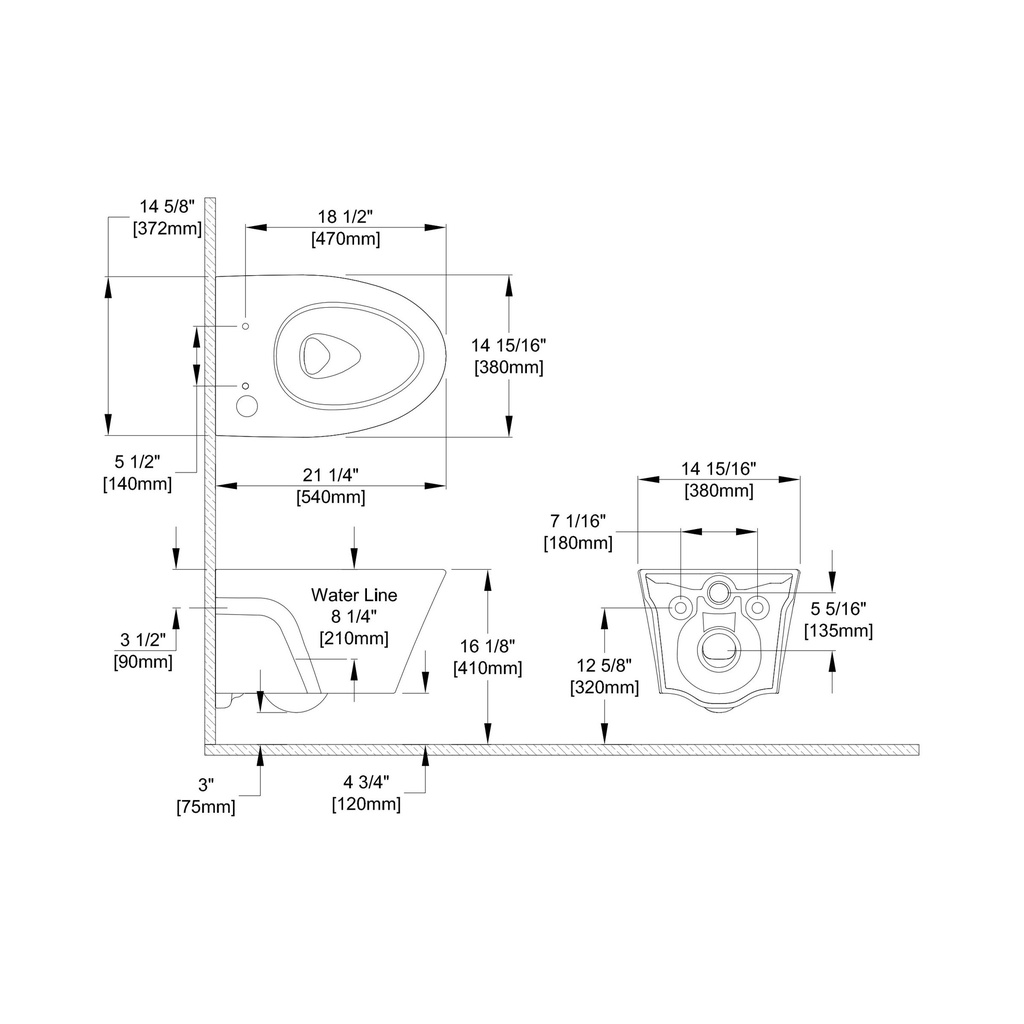

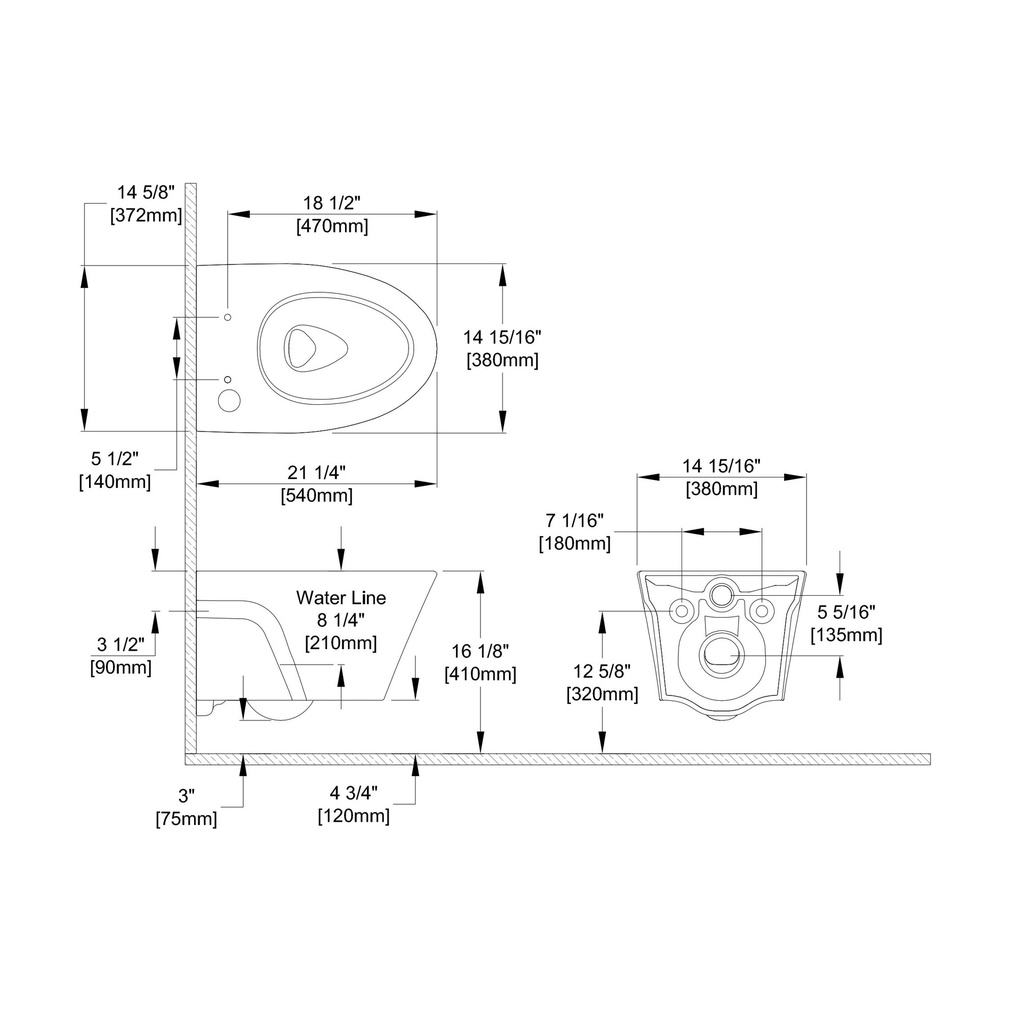

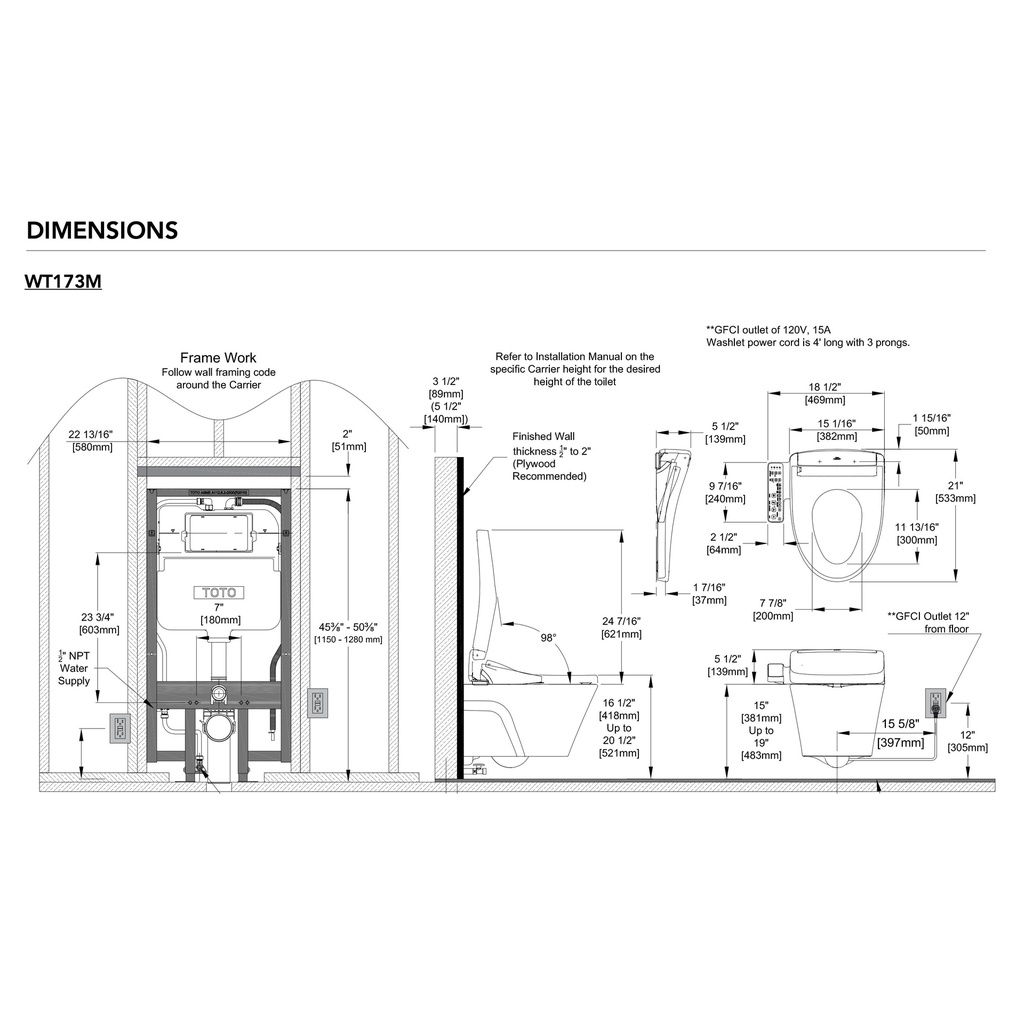

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
