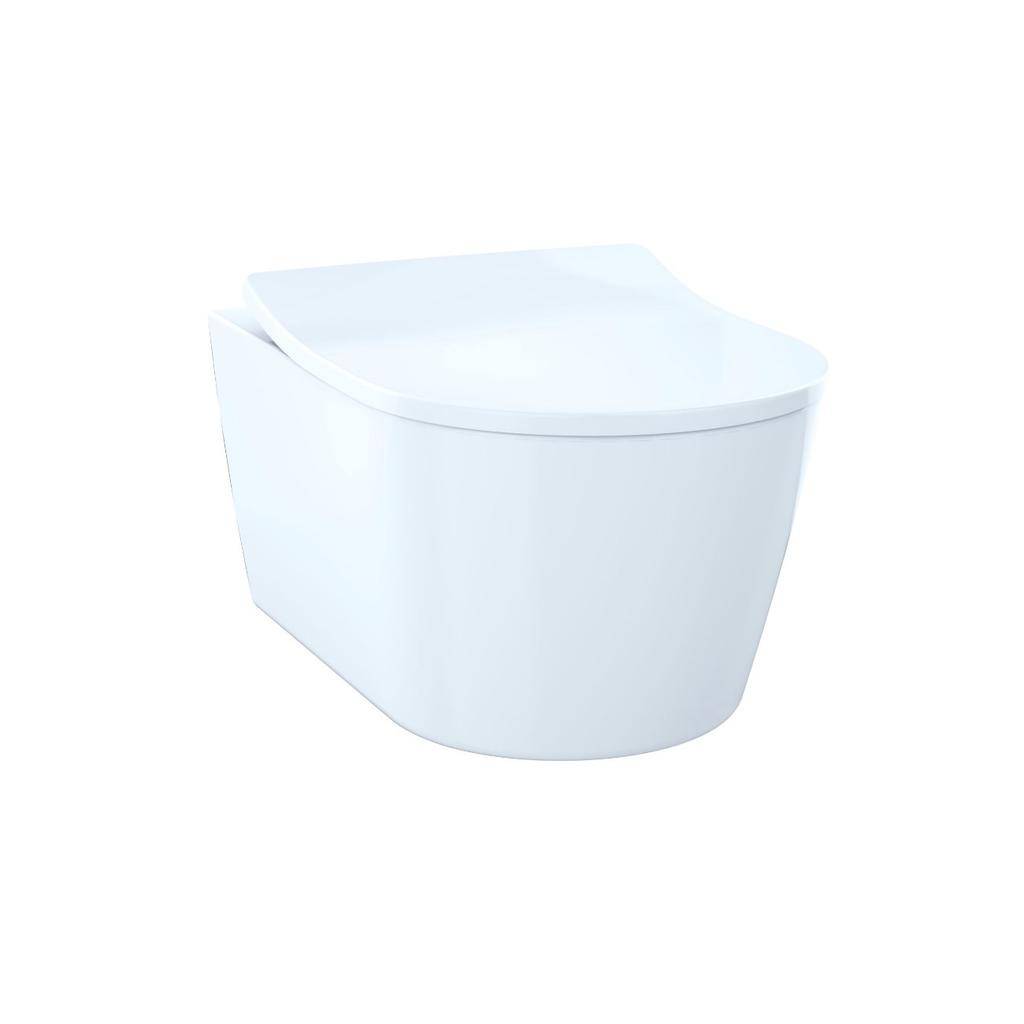

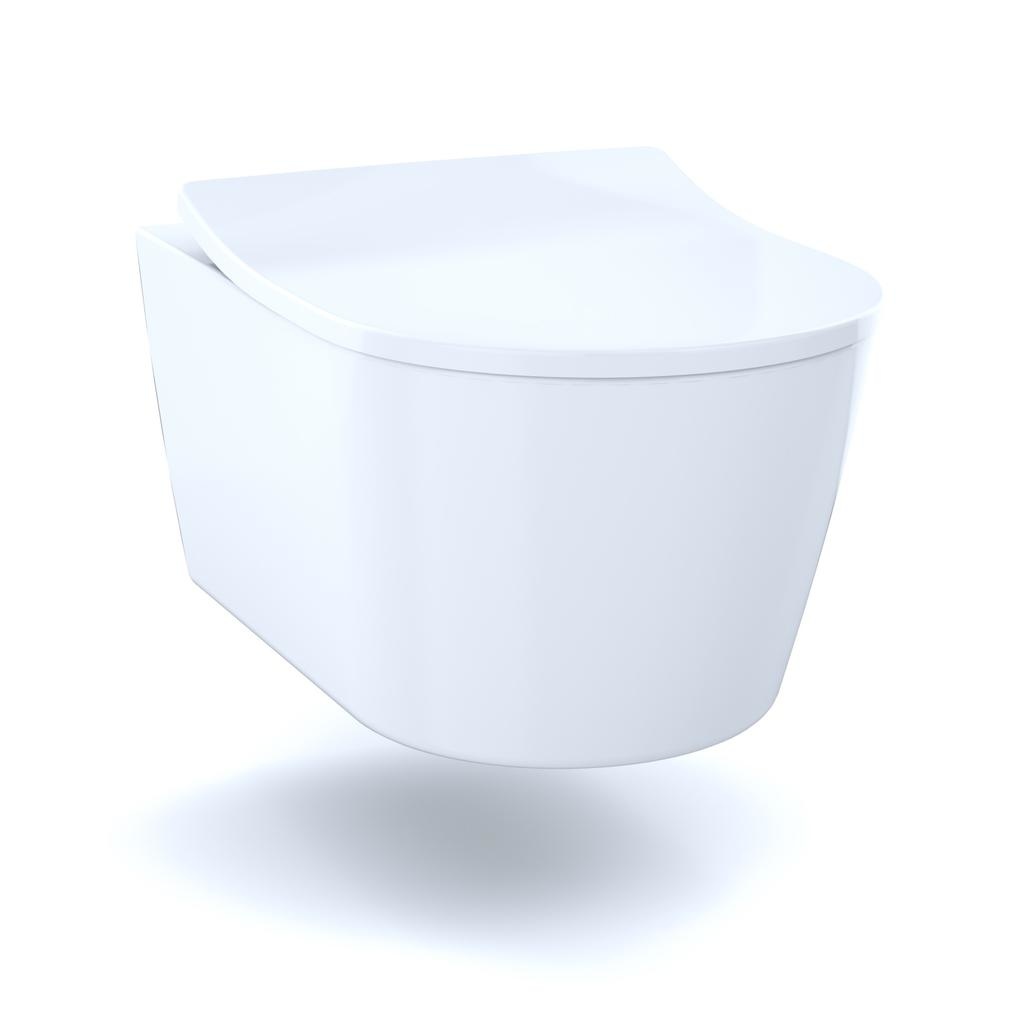

TOTO CT447CFG RP Wall Hung Toilet Cotton
With a new modern D-shape, the RP wall-hung toilet saves valuable bathroom space while delivering a contempory bathroom style.
FEATURES
DYNAMAX TORNADO FLUSH sytem
CEFIONTECT ceramic glaze prevents debris and mold from sticking to ceramic surfaces
Universal Height
SS247 Seat is required
For use with WT172M In-Wall Tank System
Wall-Hung Full Skirted
Rimless Design - not bonding line
Unique installation (Guide tubes to locate mounting screws from underneath)
D-Shaped bowl less toilet seat
RP Bowl
DYNAMAX TORNADO FLUSH system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT ceramic glaze - prevents debris, mold from sticking to ceramic surfaces
Universal Height
D-shape front bowl
SoftClose Seat
D-shape closed front toilet seat and cover with SoftClose hinge system
Mounting hardware included
Made from urea resin
Quick release hinges for easier cleaning
DuoFit In-Wall Tank
High-efficiency dual flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
Avg. flush 1.03 GPF
Adjustable 15"-19" mounting height
Saves up to 9" of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
Copper supply line
KIT COMPONENTS
CT447CFG#01
RP Wall-Hung Toilet
WT172M
In-Wall Tank System (Copper Pipe)
SS247#01
Slim D-Shape SoftClose Seat
YT930#WH
Basic Round Push Plate - White Matte
YT930#MS
Basic Round Push Plate - Matte Silver
Water Use
1.28GPF & 0.9GPF (4.8LPF & 3.4LPF)
1.28GPF & 0.9GPF (4.8LPF & 3.4LPF)
Flush System DYNAMAX
TORNADO FLUSH Dual-Max
Min. Water Pressure 8 psi (static) 8 psi (static)
Water Surface 5-1/2" X 4-1/8"
Trap Diameter 2-1/8"
Installation Height 15" to 19" 15" to 19"
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China Urea Resin Various
Shipping Weight 76 lbs 8 lbs 8 oz 38 lbs
Shipping Dimensions
24" H x 14" W x 16-1/2" L
20-1/2" x 19-1/4" x 3-1/4"
48" L x 26-1/2" W x 6" H
| Downloads and Product Specifications |

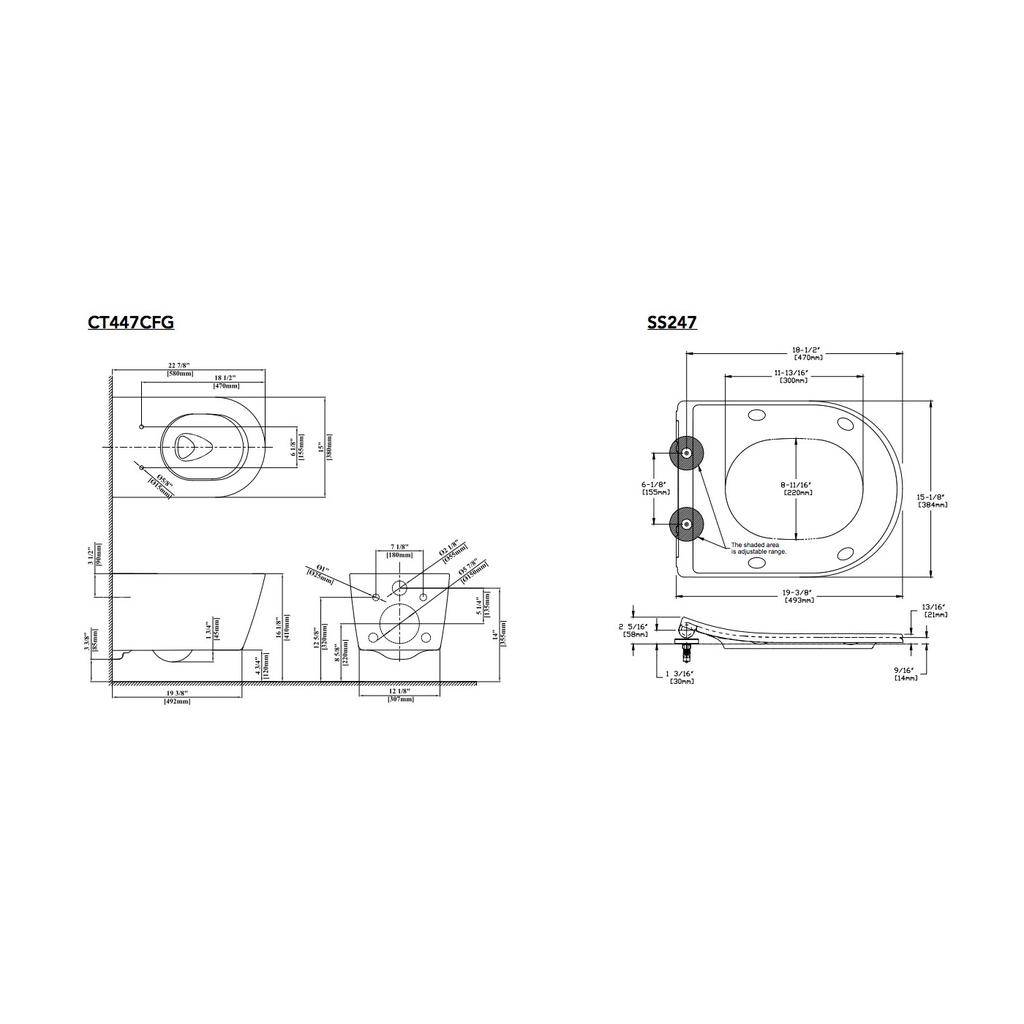

| TOTO CT447CFG CAD | CAD Drawing |
| TOTO CT447CFG SPEC | Spec Sheet |
| TOTO CT447CFG INSTALLATION | Installation Manual |
| TOTO CT447CFG PARTS | Parts Manual |
