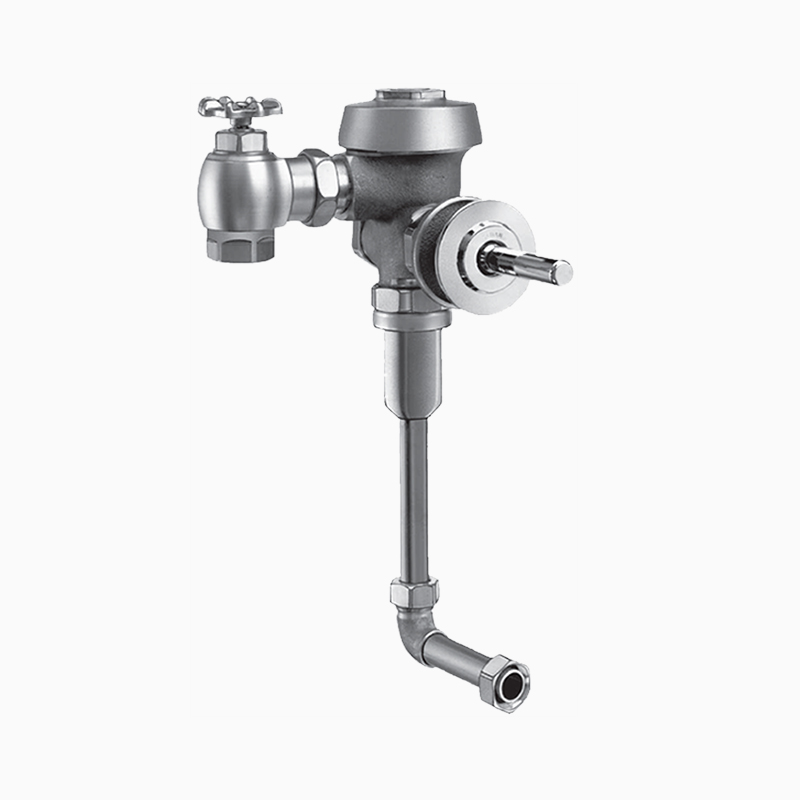

Sloan ROYAL 195 3913342 Concealed Manual Urinal Flushometer
ROYAL 195-0.5-10-3/4-LDIM
Code 3913342
0.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 10.75 L Dimension
CODE NUMBER
3913342
DESCRIPTION
0.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, 10.75 L Dimension, Royal® Concealed Manual Urinal
Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Rough Brass
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud

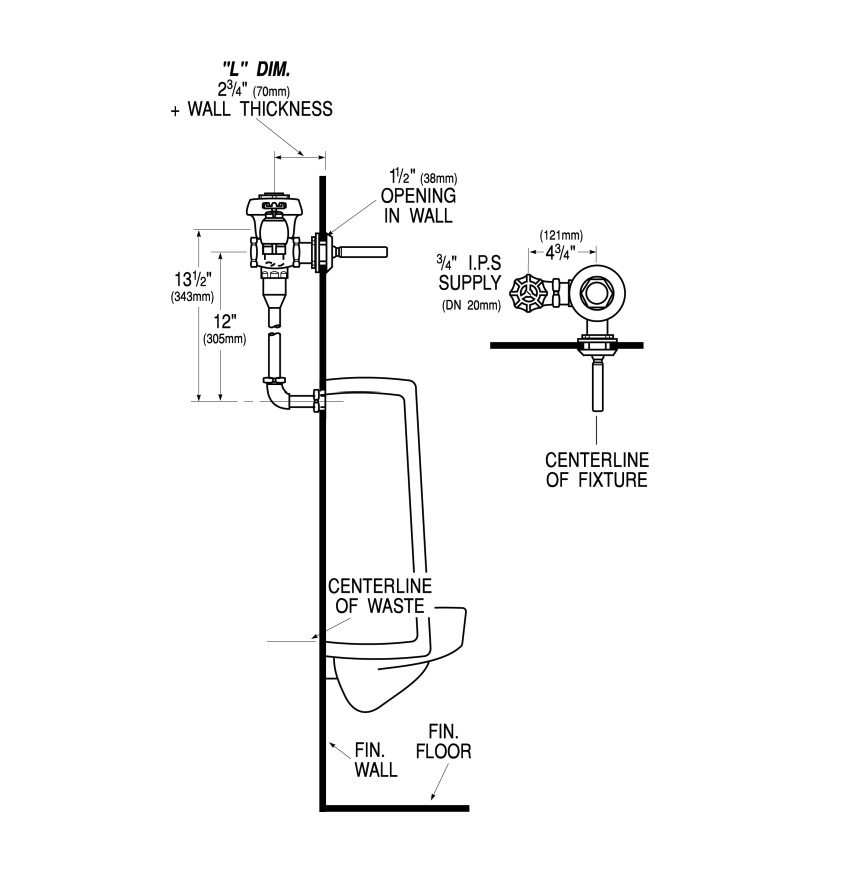

Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
L Dimension: 10 ¾" (273mm) (10-3/4-LDIM)
FEATURES
Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Vacuum Breaker
Spud Coupling for 3⁄4” Concealed Back Spud Urinals
Elbow Flush Connection
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
ADA Compliant Metal Oscillating Non-Hold-Open Handle
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
