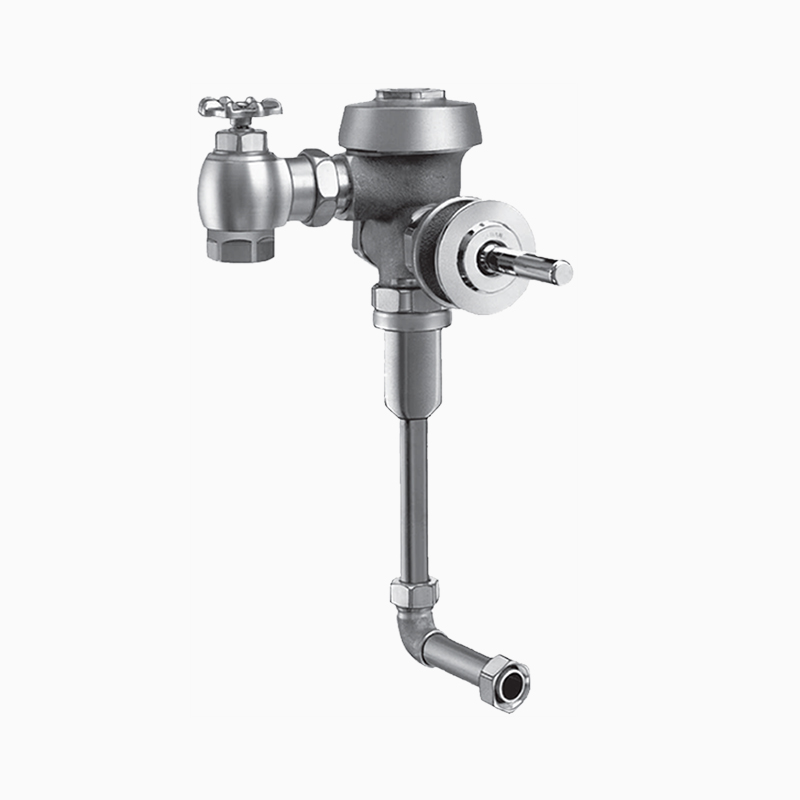

Sloan ROYAL 195 3913301 Concealed Manual Urinal Flushometer
ROYAL 195-1.0-8-3/4-LDIM-L3
Code 3913301
1.0 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 8.75 L Dimension, 3" Metal Oscillating Push Button
CODE NUMBER
3913301
DESCRIPTION
1.0 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, 8.75 L Dimension, 3" Metal Oscillating Push Button, Royal®
Concealed Manual Urinal Flushometer.
DETAILS
Flush Volume: 1.0 gpf (3.8 Lpf)
Finish: Rough Brass
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud

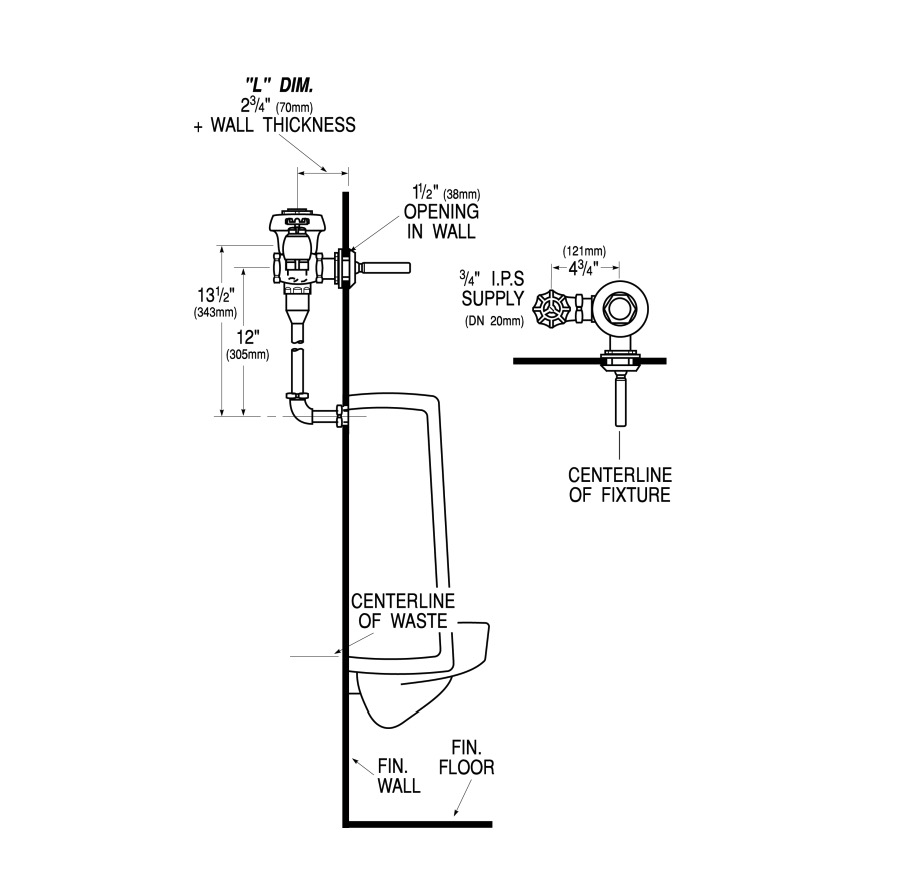

Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
L Dimension: 8 ¾" (222mm) (8-3/4-LDIM)
Push Button: 3" Metal Oscillating (L3)
FEATURES
Flush volumes start as low as a pint of water
Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
