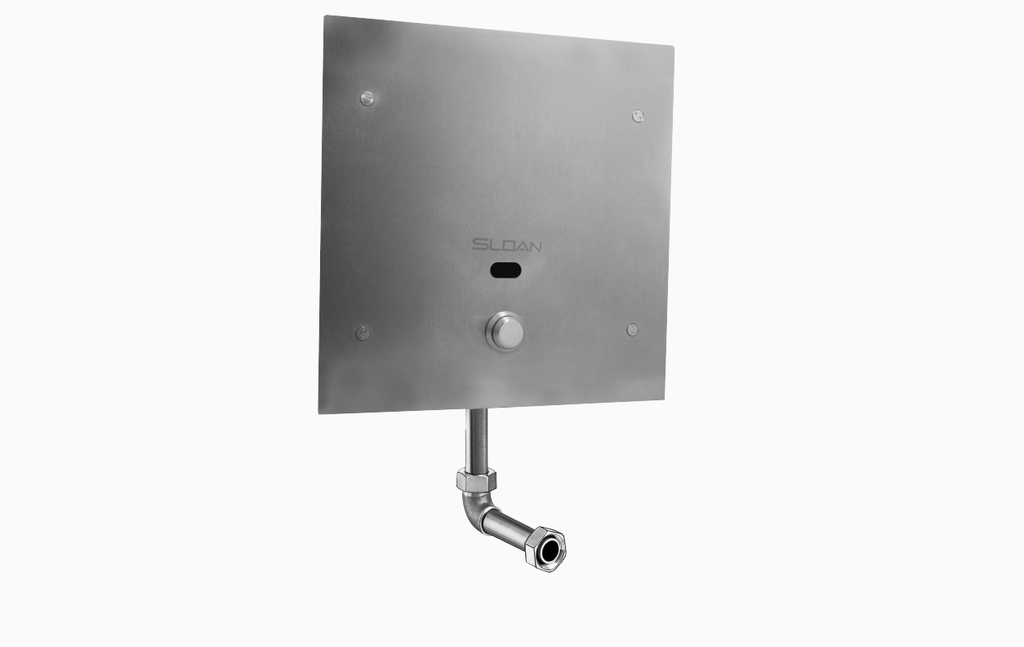

Sloan 3773212 Concealed Sensor Hardwired Urinal Flushometer
SLOAN 195 ESS-0.5-TMO-SWB
Code 3773212
0.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2-10.75 L Dimension, True Mechanical Override, Hardwired, Sensor-Operated, 24V, Small Wall Box
CODE NUMBER
3773212
DESCRIPTION
0.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, 2-10.75 L Dimension, True Mechanical Override, Hardwired,
Sensor-Operated, 24V, Small Wall Box, Sloan® Concealed Sensor
Hardwired Urinal Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Rough Brass
Power Type: Hardwired
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud

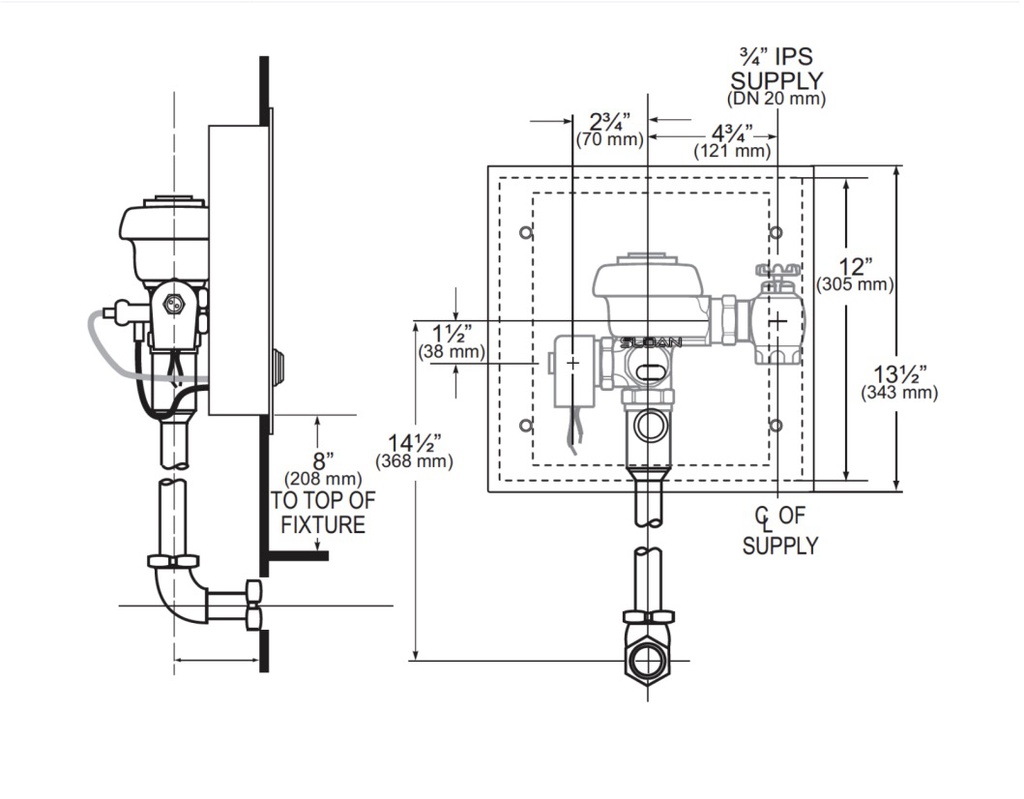

Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
L Dimension: 2" – 10 ¾" (51 – 273mm)
Override: True Mechanical (TMO)
Wall Box: Small (SWB)
Voltage: 24V
FEATURES
Quiet, Concealed, Diaphragm Assembly, Rough Brass Urinal
Vacuum Breaker with Flush Connection
No External Volume Adjustment to Ensure Water Conservation
13 1⁄2” x 13 1⁄2” Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Spud Coupling for 3⁄4” Concealed Back Spud
Diaphragm Assembly, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Control Circuit: 24 VAC Input/24 VAC Output/Solid State
Flush Delay: 1s
Self-Adaptive Window: ±8
Sensor Range: 15" – 30" (381 – 762mm)
Solenoid Operator: 24 VAC
Transformers (specify separately):
0345154
0345999
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
