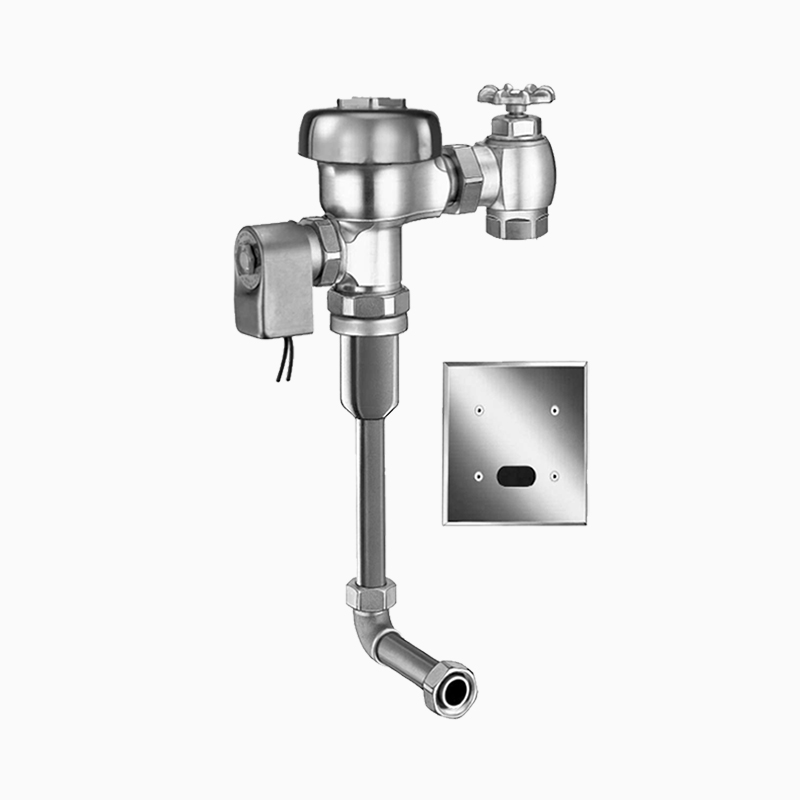

Sloan 3773206 Concealed Sensor Hardwired Urinal Flushometer
SLOAN 195 ESS-0.125-L/OR
Code 3773206
0.125 gpf, Dual-Filtered Bypass, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2-10.75 L Dimension, Less Override, Hardwired, Sensor-Operated, 24V
CODE NUMBER
3773206
DESCRIPTION
0.125 gpf, Dual-Filtered Bypass, Rough Brass Finish, Fixture
Connection Rear Spud, Single Flush, 2-10.75 L Dimension, Less
Override, Hardwired, Sensor-Operated, 24V, Sloan® Concealed
Sensor Hardwired Urinal Flushometer.
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)
Finish: Rough Brass
Power Type: Hardwired
Valve: Diaphragm
Bypass: Dual-Filtered Bypass
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud

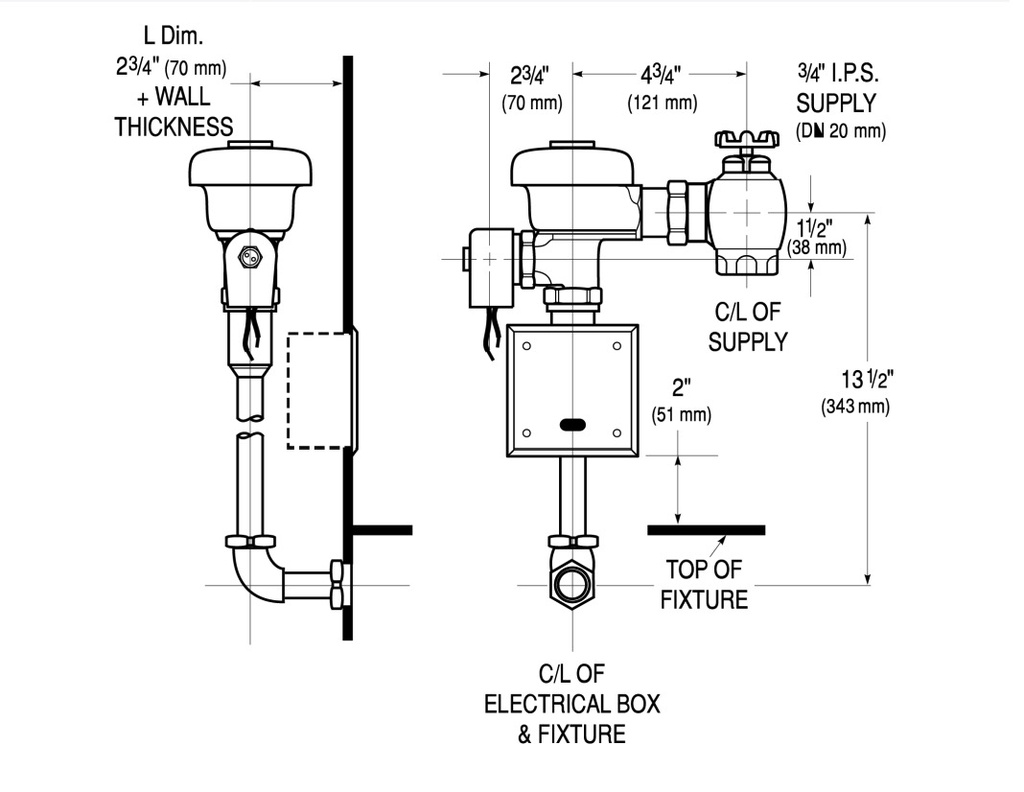

Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
L Dimension: 2" – 10 ¾" (51 – 273mm)
Override: Less (L/OR)
Voltage: 24V
FEATURES
Quiet, Concealed, Diaphragm Type, Rough Brass Urinal
Vacuum Breaker with Flush Connection
No External Volume Adjustment to Ensure Water Conservation
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Spud Coupling for 3⁄4” Concealed Back Spud
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Control Circuit: Solid State/24 VAC Input/24 VAC Output
Flush Delay: 1s
Self-Adaptive Window: ±8
Sensor Range: 15" – 30" (381 – 762mm)
Solenoid Operator: 24 VAC
Transformers (specify separately):
0345154
0345999
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
