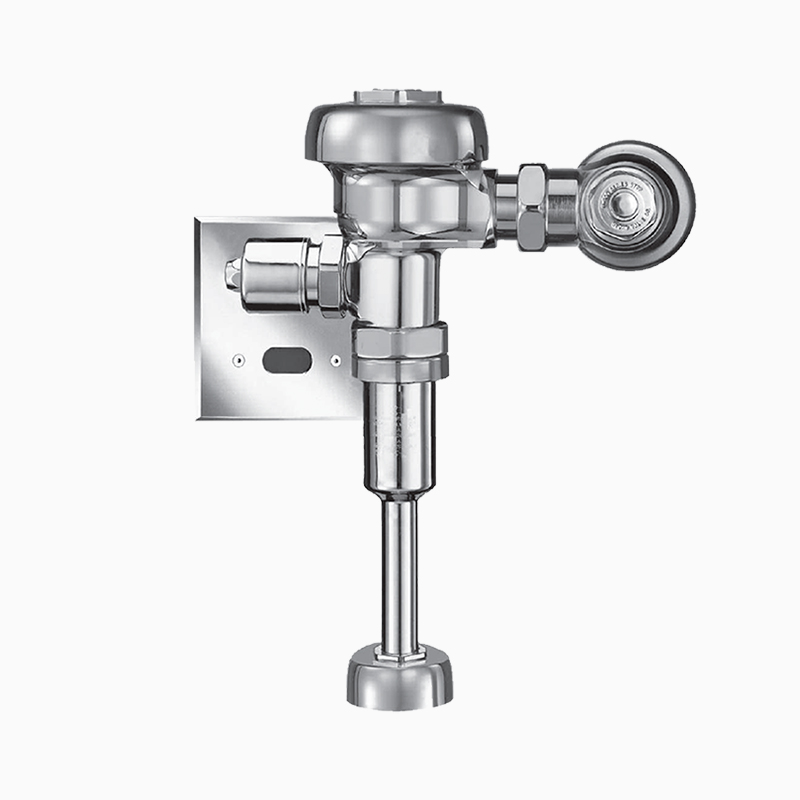

Sloan REGAL 186 ESS 3582652 Sensor Hardwired Urinal Flushometer
REGAL 186 ESS-1.0-XL-L/OR
Code 3582652
1.0 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 3/4" Control Stop, Less Override, Hardwired, Sensor-Operated, 24V
CODE NUMBER
3582652
DESCRIPTION
1.0 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture
Connection Top Spud, Single Flush, 3/4" Control Stop, Less Override,
Hardwired, Sensor-Operated, 24V, Regal® Exposed Sensor Hardwired
Urinal Flushometer.
DETAILS
Flush Volume: 1.0 gpf (3.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud

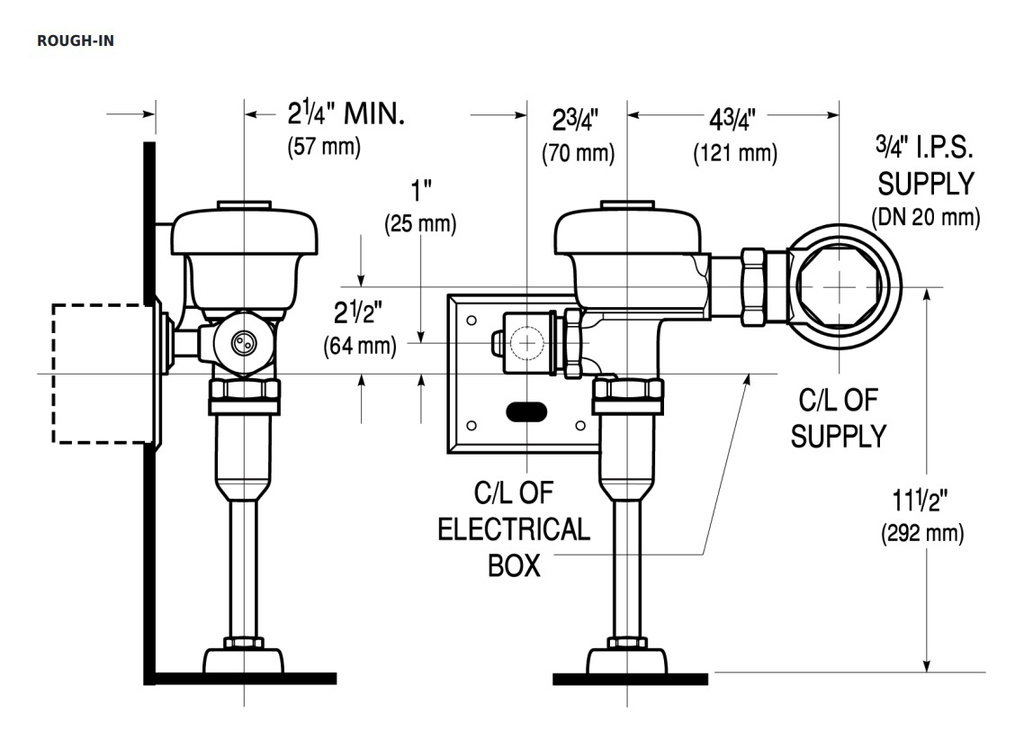

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: Less (L/OR)
Control Stop: 3/4"
Voltage: 24V
Adapter: XL Sweat Solder Adapter Kit (XL)
FEATURES
Control Stop Plug
Vacuum Breaker Flush Connection
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Control Circuit: Solid State/24 VAC Input/24 VAC Output
Flush Delay: 1s
Self-Adaptive Window: ±8
Sensor Range: 15" – 30" (381 – 762mm)
Solenoid Operator: 24 VAC
Transformers (specify separately):
0345154
0345999
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
