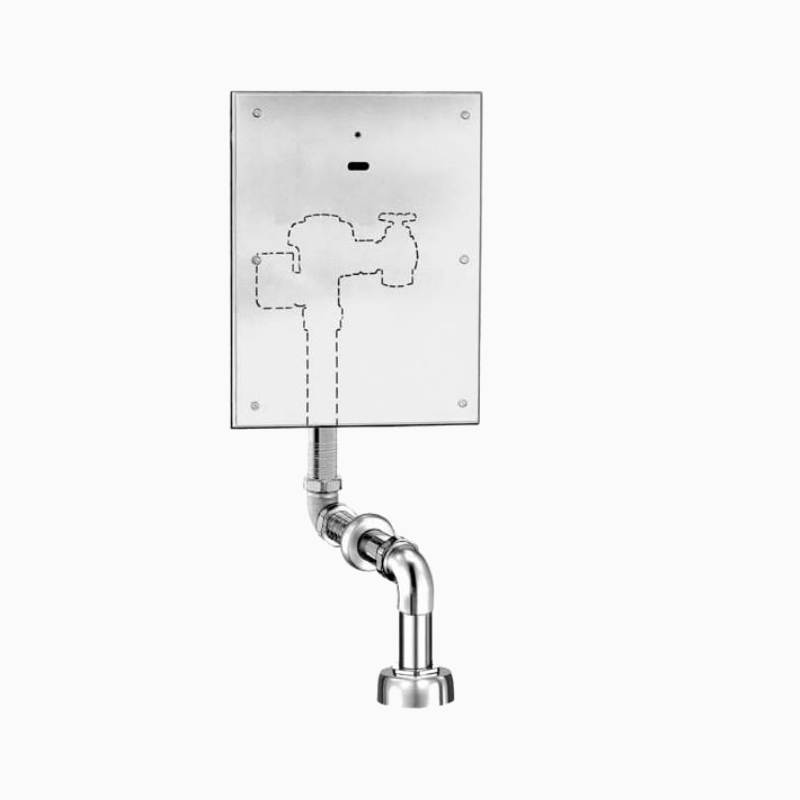

Sloan ROYAL 153 ESS 3451633 Concealed Sensor Flushometer
ROYAL 153 ESS-1.6-W/BOX
Code 3451633
1.6 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, 11-12.75 L Dimension, Electrical Override, Hardwired, Sensor-Operated, 24V, With Wall Box
CODE NUMBER
3451633
DESCRIPTION
1.6 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single
Flush, 11-12.75 L Dimension, Electrical Override, Hardwired, SensorOperated, 24V, With Wall Box, Royal® Concealed Sensor Hardwired
Water Closet Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Rough Brass
Power Type: Hardwired
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

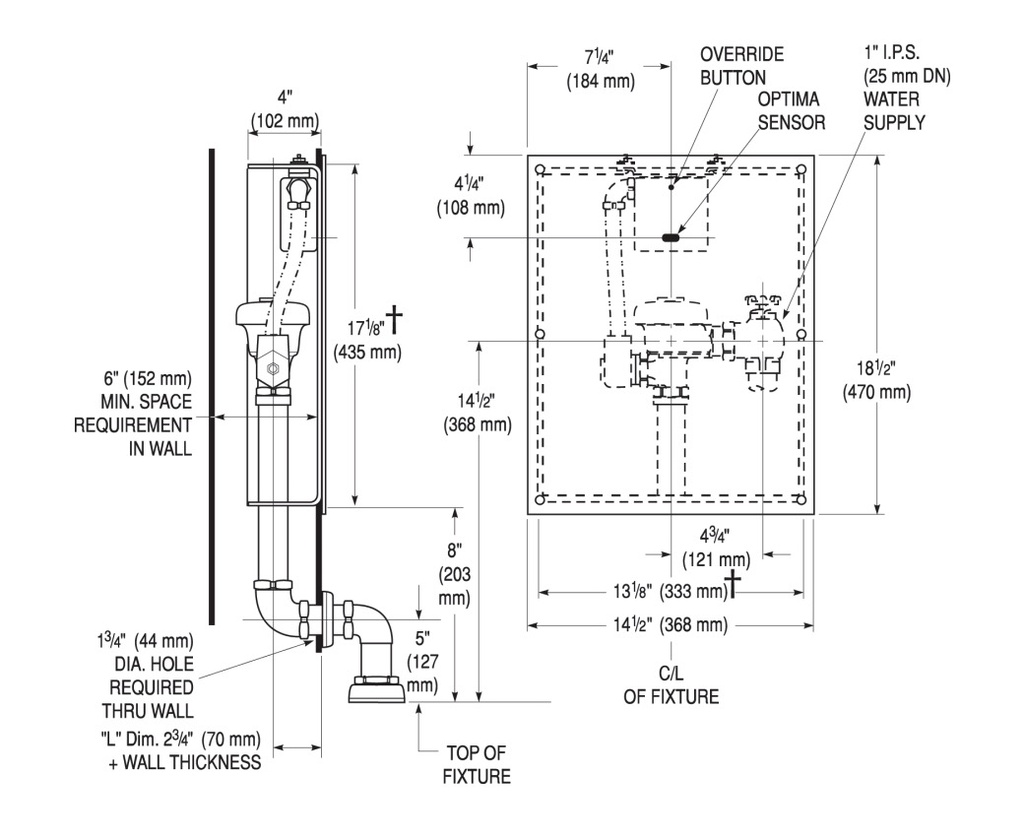

Rough-In Dimension: 14" (356mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
L Dimension: 11" – 12 ¾" (279 – 324mm)
Override: Electrical
Wall Box: With (W/BOX)
Voltage: 24V
FEATURES
Flush volumes start as low as 1.28 gpf/4.8 Lpf
Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037.
ELECTRICAL SPECIFICATIONS
Arming Delay: 16 seconds
Control Circuit: Solid State/24 VAC Input/24 VAC Output
Flush Delay: 3s
Self-Adaptive Window: ±10
Sensor Range: 22" – 42" (559 – 1,067mm)
Solenoid Operator: 24 VAC
Transformers (specify separately):
0345154
0345999
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
