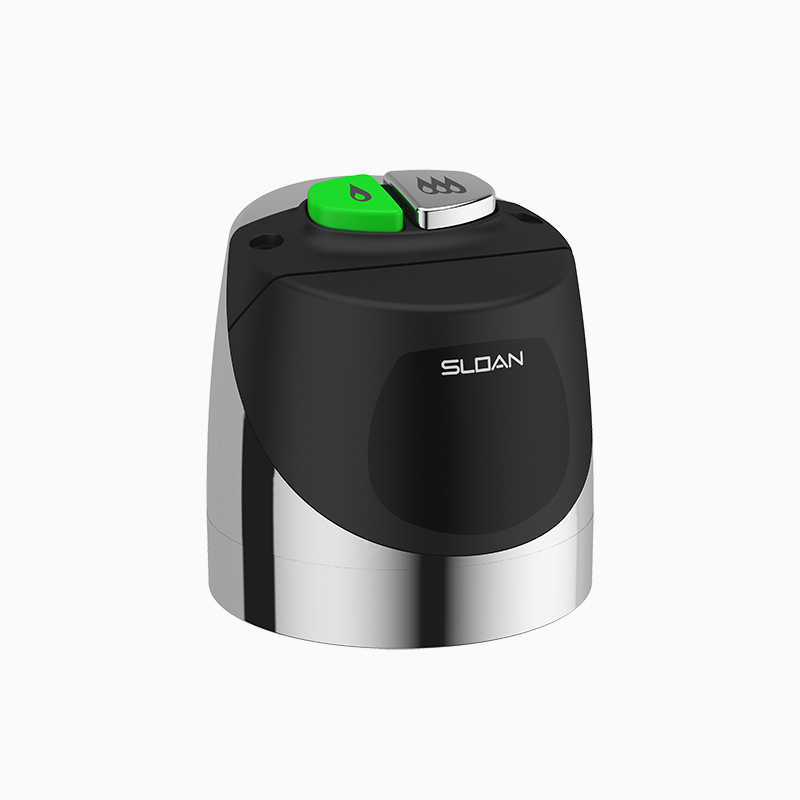

Sloan ECOS RESS-C-1.6/1.1 3375407 Water Closet Retrofit Flushometer
ECOS RESS-C-1.6/1.1
Code 3375407
1.6/1.1 gpf, Dual-Filtered Bypass, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Electrical Override, Hardwired, Infrared
CODE NUMBER
3375407
DESCRIPTION
1.6/1.1 gpf, Dual-Filtered Bypass, Polished Chrome Finish, Fixture
Connection Top Spud, Dual Flush, Electrical Override, Hardwired,
Infrared, ECOS® Exposed Sensor Water Closet Retrofit Flushometer.
DETAILS
Flush Volume: 1.6/1.1 gpf (6.0/4.2 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired
Valve: Diaphragm
Bypass: Dual-Filtered Bypass
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Override: Electrical
FEATURES
Includes 18” electrical cable
User friendly three (3) second Flush Delay
Engineered Metal Cover with replaceable Lens Window
PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection with range adjustment screw
Line Powered with 6 VAC Step Down Transformer
Courtesy Flush® Override Button
Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance
Chrome plated metal handle cap
ELECTRICAL SPECIFICATIONS
Arming Delay: 10 seconds
Flush Delay: 3s
Sensor Range: 22" – 42" (559 – 1,067mm)
Solenoid Operator: 6 VAC
Transformers (specify separately):
EL-386 (Up to 1 flushometer)
EL-451 (up to 6 flushometers)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
