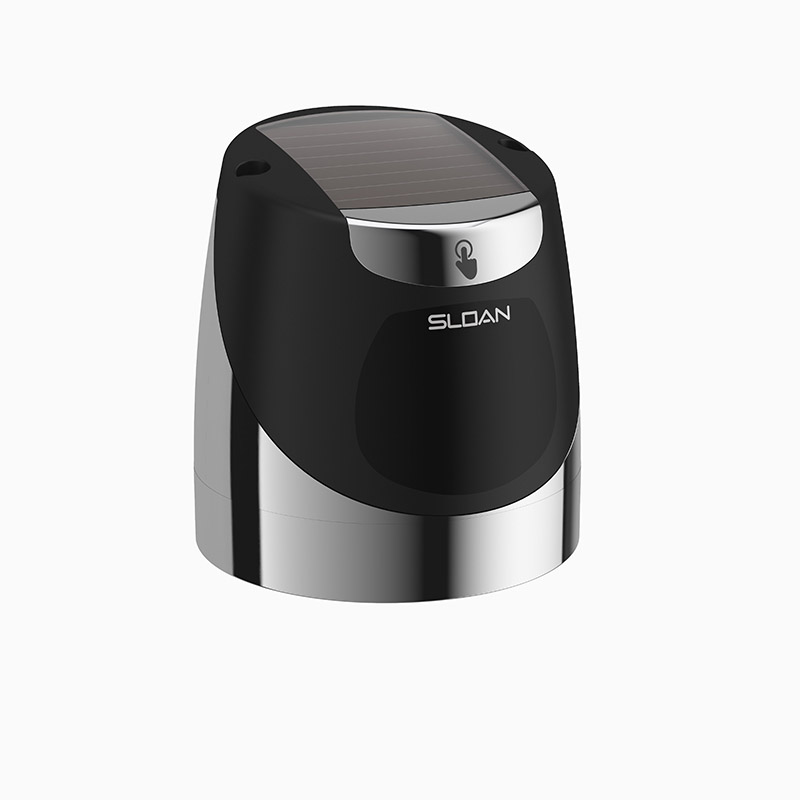

Sloan SOLIS RESS-C 3375301 Retrofit Replacement Flushometer
SOLIS RESS-C-1.6
Code 3375301
1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
CODE NUMBER
3375301
DESCRIPTION
1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single
Flush, Electrical Override, Solar, SOLIS® Exposed Sensor Water Closet
Retrofit Replacement Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Polished Chrome (CP)
Power Type: Solar
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Override: Electrical
FEATURES
Quiet, Exposed, Sloan Solis® Flushometer, Solar Powered, Sensor Activated Closet Flushometer Retrofit Conversion Kit for Royal®, Sloan® and Regal®
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
Engineered Metal Cover with replaceable Lens Window
ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance
Courtesy Flush® Override Button
Handle cap included
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
Flush Delay: 3s
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
