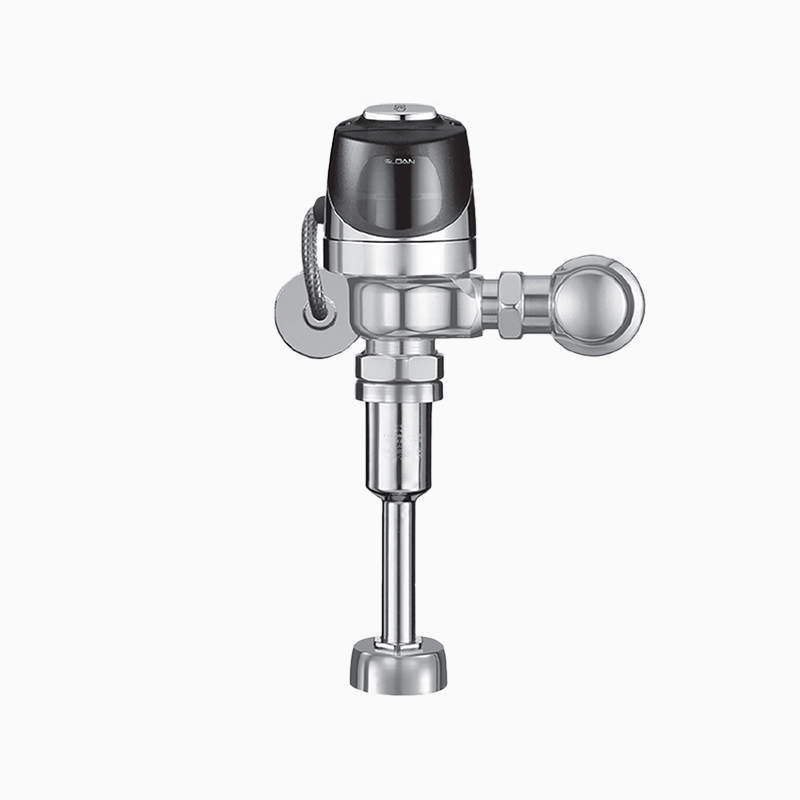

Sloan ECOS-186-0.25 3370442 Exposed Sensor Hardwired Urinal Flushometer
ECOS 186 HW-0.25-LT
Code 3370442
0.25 gpf, Dual-Filtered Bypass, Polished Chrome Finish, 0.75 Flush Connection, Fixture Connection Top Spud, Single Flush, 3/4" Control Stop, Electrical Override, Hardwired, Infrared
CODE NUMBER
3370442
DESCRIPTION
0.25 gpf, Dual-Filtered Bypass, Polished Chrome Finish, 0.75 Flush
Connection, Fixture Connection Top Spud, Single Flush, 3/4" Control
Stop, Electrical Override, Hardwired, Infrared, ECOS® Exposed Sensor
Hardwired Urinal Flushometer.
DETAILS
Flush Volume: 0.25 gpf (0.9 Lpf)
Finish: Polished Chrome (CP)
Power Type: Hardwired
Valve: Diaphragm
Bypass: Dual-Filtered Bypass
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud

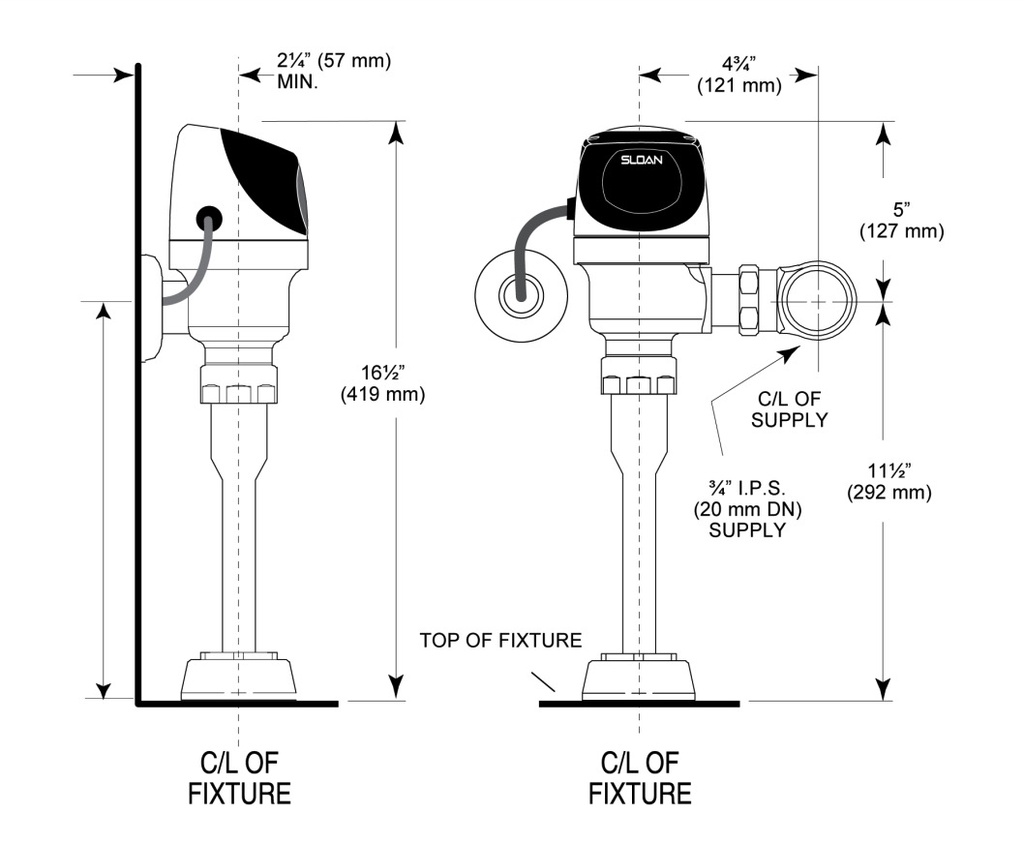

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: Electrical
Control Stop: 3/4"
Flush Connection: 0.75
FEATURES
Includes 18” electrical cable
Sweat solder adapter with cover tube and cast wall flange with set screw
Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flex Tube Diaphragm designed for improved life and reduced maintenance
Engineered Metal Cover with replaceable Lens Window
Line Powered with 6 VAC Step Down Transformer
3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop
Free Spinning, Vandal Resistant Stop Cap
ADA Compliant Sloan® ECOS® Electronic Infrared Sensor for automatic “No Hands” operation
Courtesy Flush® Override Button
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Flush Delay: 1s
Sensor Range: 15" – 30" (381 – 762mm)
Solenoid Operator: 6 VAC
Transformers (specify separately):
EL-386 (Up to 1 flushometer)
EL-451 (up to 6 flushometers)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements
