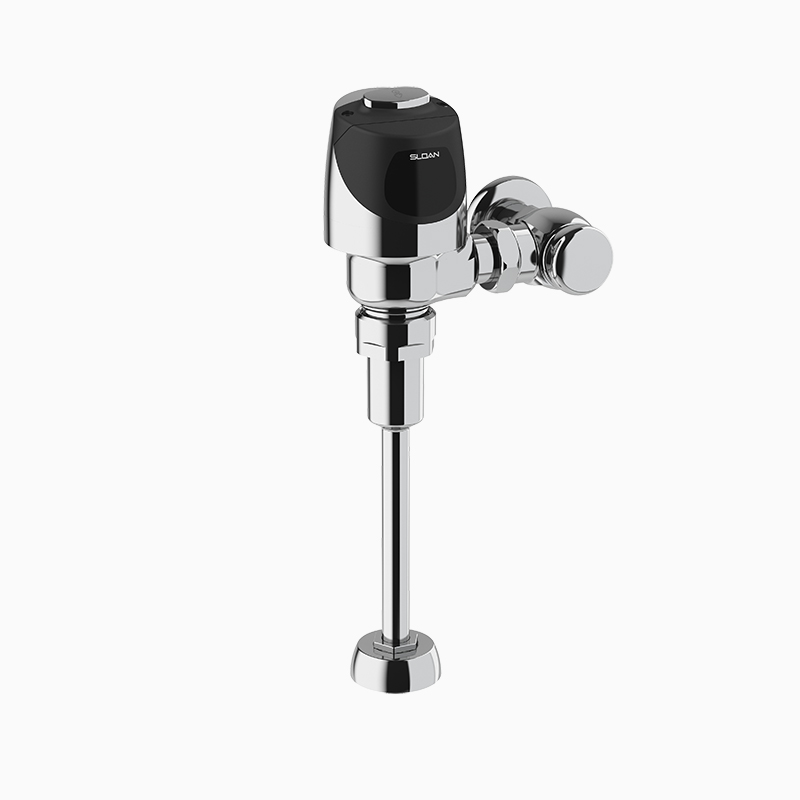

Sloan ECOS 8186-0.5 3370430 Exposed Sensor Urinal Flushometer
ECOS 8186-0.5
Code 3370430
0.5 gpf, Polished Chrome Finish, 0.75 Flush Connection, Fixture Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop, Electrical Override, Battery, Infrared
CODE NUMBER
3370430
DESCRIPTION
0.5 gpf, Polished Chrome Finish, 0.75 Flush Connection, Fixture
Connection Top Spud, Single Flush, 0.75" Inlet, 3/4" Control Stop,
Electrical Override, Battery, Infrared, ECOS® Exposed Sensor Urinal
Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud

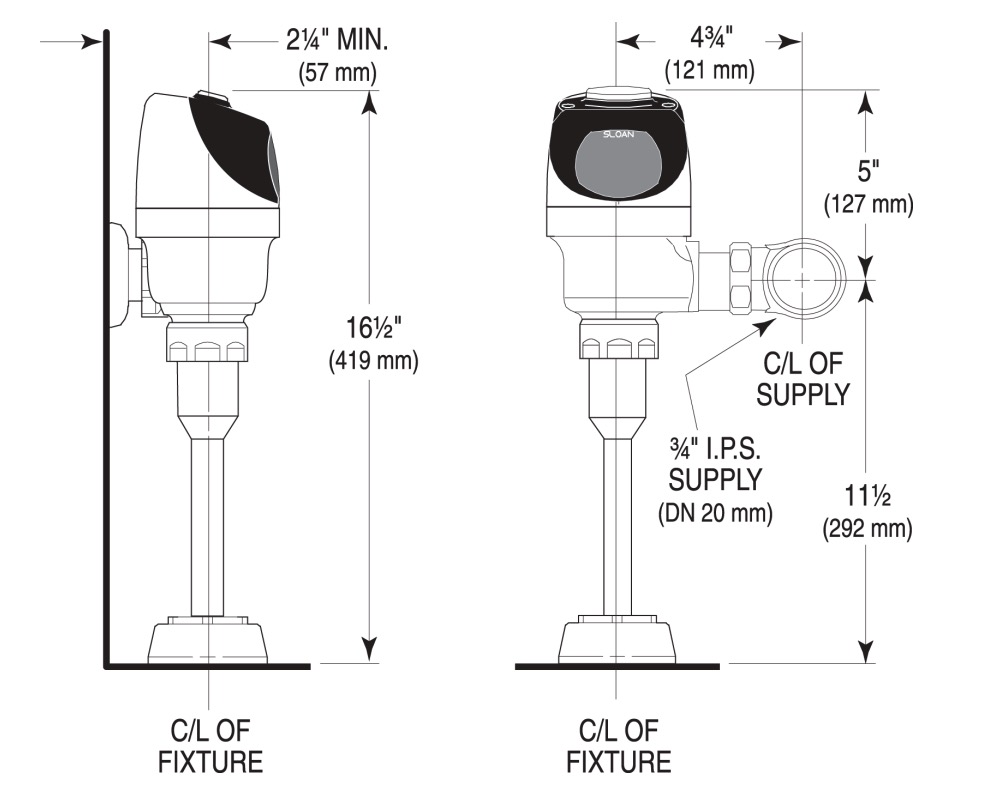

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: Electrical
Control Stop: 3/4"
Inlet: 0.75"
Flush Connection: 0.75
FEATURES
Flex Tube Diaphragm designed for improved life and reduced maintenance
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
Synthetic rubber seals for chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Engineered Metal Cover with replaceable Lens Window
Four (4) Size AA batteries included
Courtesy Flush® Override Button (optional)
ADA Compliant Sloan ECOS® Battery powered Infrared Sensor for automatic “No Hands” operation
3/4” IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ELECTRICAL SPECIFICATIONS
Arming Delay: 8 seconds
Battery Life: 6 years
Flush Delay: 1s
Self-Adaptive Window: ±8
Sensor Range: 15" – 30" (381 – 762mm)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
