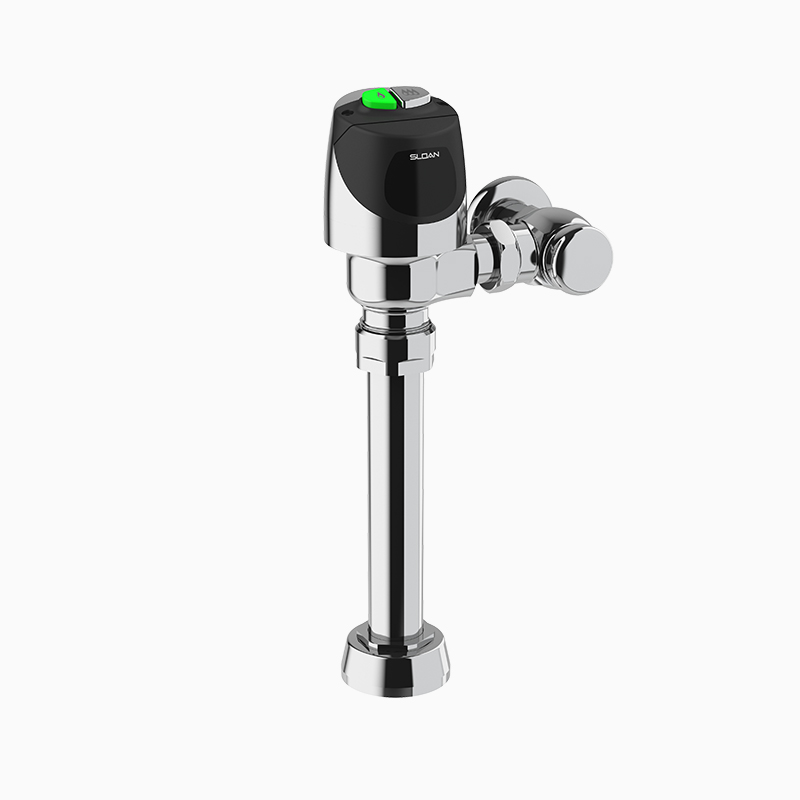

Sloan ECOS-8111-1.6/1.1 3370400 Exposed Sensor Water Closet Flushometer
ECOS 8111-1.6/1.1
Code 3370400
1.6/1.1 gpf, Polished Chrome Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Dual Flush, 1" Inlet, 1" Control Stop, Electrical Override, Battery, Infrared
CODE NUMBER
3370400
DESCRIPTION
1.6/1.1 gpf, Polished Chrome Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Dual Flush, 1" Inlet, 1" Control Stop, Electrical Override, Battery, Infrared, ECOS® Exposed Sensor Water Closet Flushometer.
DETAILS
Flush Volume: 1.6/1.1 gpf (6.0/4.2 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

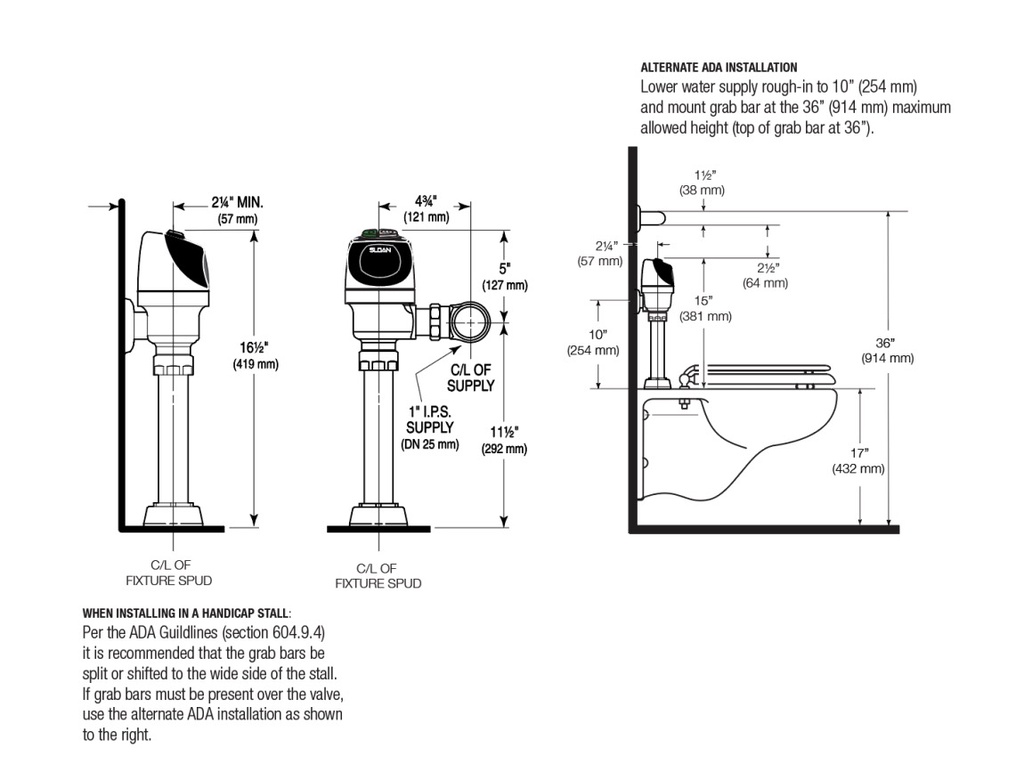

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: Electrical
Control Stop: 1"
Inlet: 1"
Flush Connection: 1.5"
FEATURES
Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
Engineered Metal Cover with replaceable Lens Window
PERMEX® Synthetic Rubber Flex Tube Diaphragm with Dual filtered bypass designed for improved life and reduced maintenance
Four (4) Size AA batteries included
Courtesy Flush® Override Button
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ELECTRICAL SPECIFICATIONS
Arming Delay: 10 seconds
Battery Life: 6 years
Flush Delay: 3s
Sensor Range: 22" – 42" (559 – 1,067mm)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
