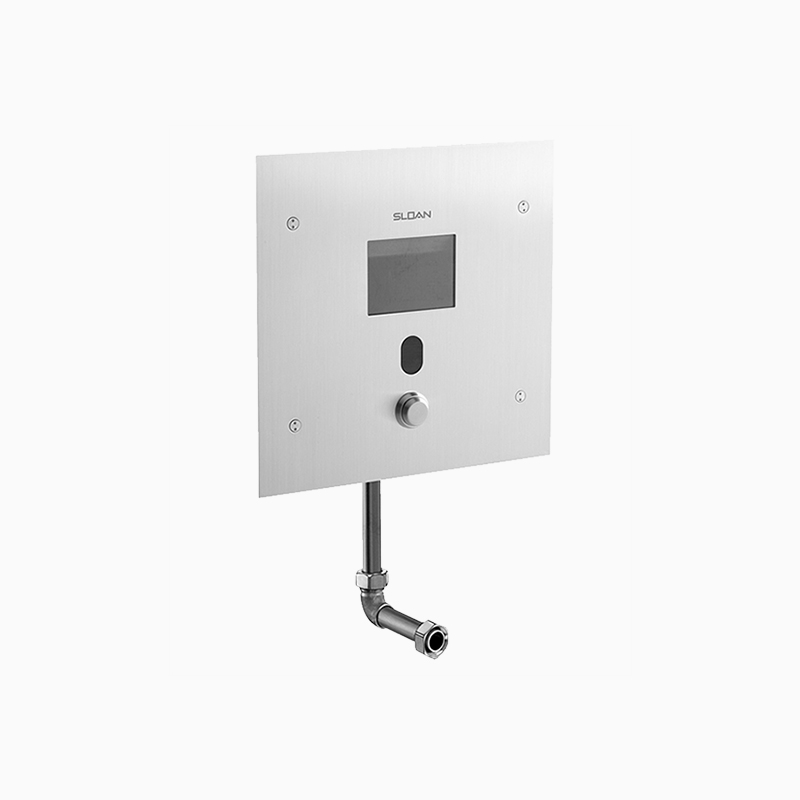

Sloan SOLIS 8195 3370063 Concealed Sensor Urinal Flushometer
SOLIS 8195-1.0-TMO
Code 3370063
1.0 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, True Mechanical Override, Solar
CODE NUMBER
3370063
DESCRIPTION
1.0 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, True Mechanical Override, Solar, SOLIS® Concealed Sensor
Urinal Flushometer.
DETAILS
Flush Volume: 1.0 gpf (3.8 Lpf)
Finish: Rough Brass
Power Type: Solar
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Rear Spud

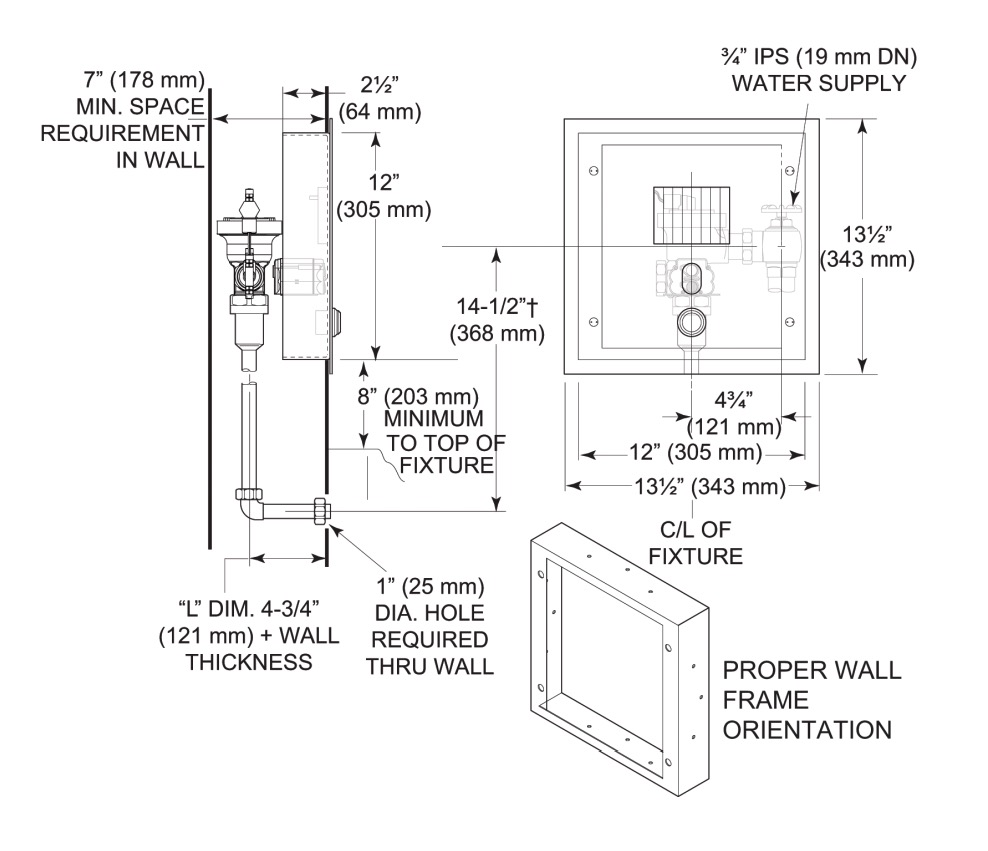

Rough-In Dimension: 13 ½" (343mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: True Mechanical (TMO)
FEATURES
“Low Battery” Flashing LED
Four (4) Size AA Battery Back-up Power Source
Wall Plate with Stainless Steel Access Panel and Vandal Resistant Screws
ADA Compliant SOLIS® Solar-Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
High Back Pressure Vacuum Breaker Flush Connection with One piece Bottom Hex Coupling Nut
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
User friendly (1-2) second Auto Flush Delay
3/4” I.P.S. Wheel Handle Bak-Chek® Angle Stop
Spud Coupling and Flange for 3/4” concealed Rear Spud
Courtesy FlushTM Non-Hold-Open True Mechanical Override
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
