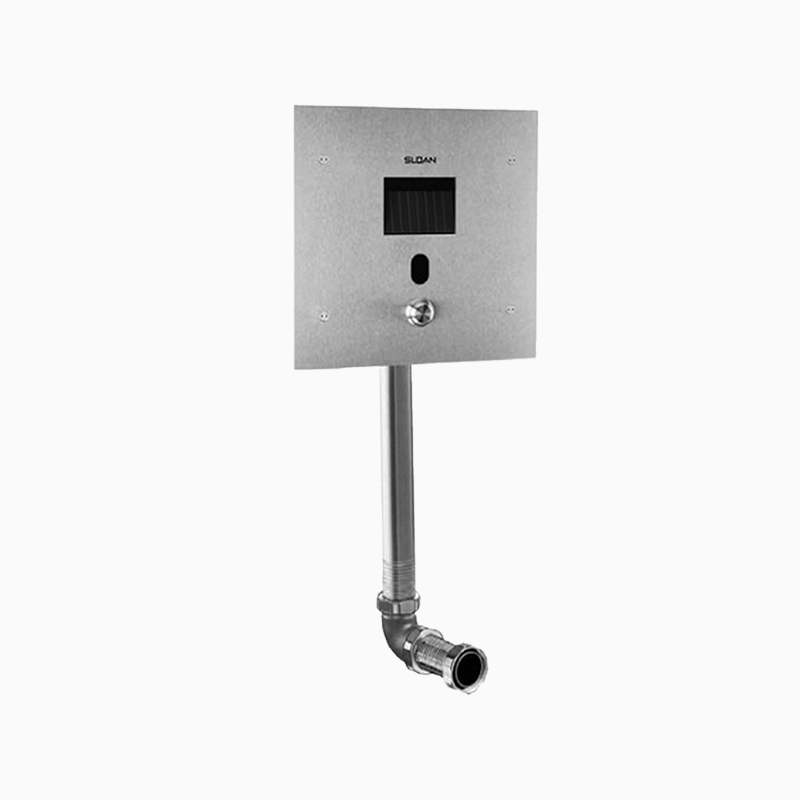

Sloan SOLIS 8152 3370061 Concealed Sensor Hydraulic Flushometer
SOLIS 8152-1.6-TMO-SWB
Code 3370061
1.6 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, True Mechanical Override, Solar, Small Wall Box
CODE NUMBER
3370061
DESCRIPTION
1.6 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, True Mechanical Override, Solar, Small Wall Box, SOLIS®
Concealed Sensor Water Closet Hydraulic Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Rough Brass
Power Type: Solar
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Rear Spud

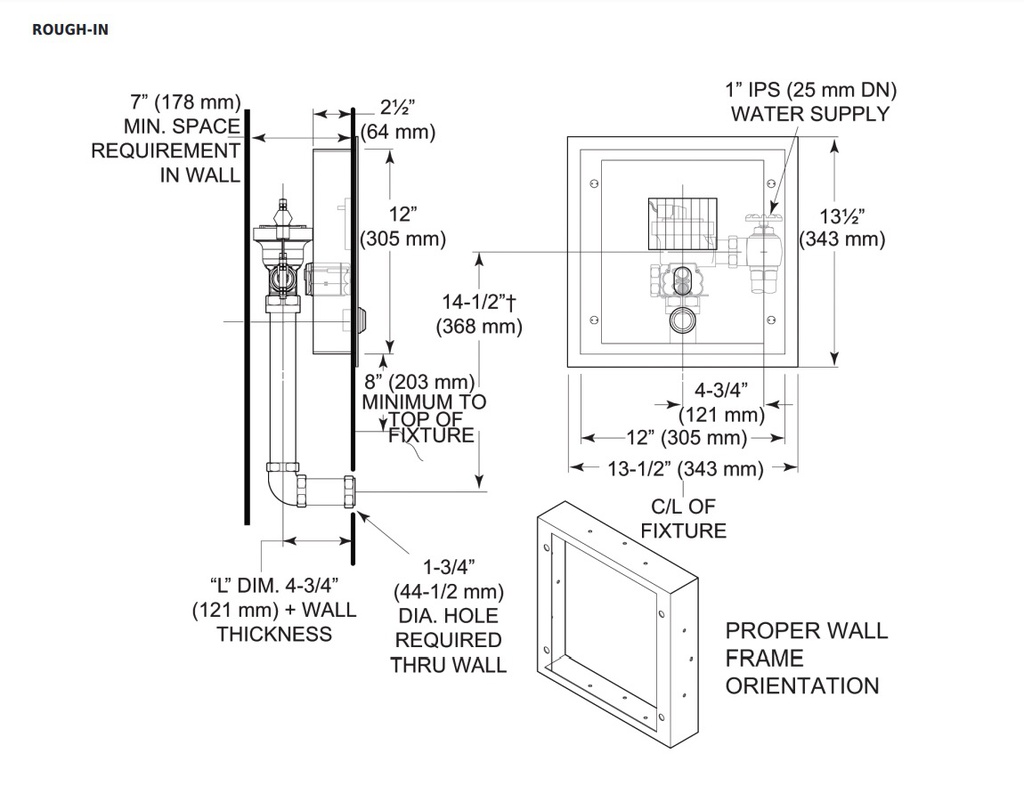

Rough-In Dimension: 24" (610mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: True Mechanical (TMO)
Wall Box: Small (SWB)
FEATURES
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Low Battery Flashing LED
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
ADA Compliant Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
Synthetic rubber seals for chloramine resistance
User friendly three (3) second Flush Delay
High Back Pressure Vacuum Breaker Flush Connection with One piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1-1/2” concealed Rear Spud
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
1” I.P.S. Wheel Handle Bak-Chek® Angle Stop
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
