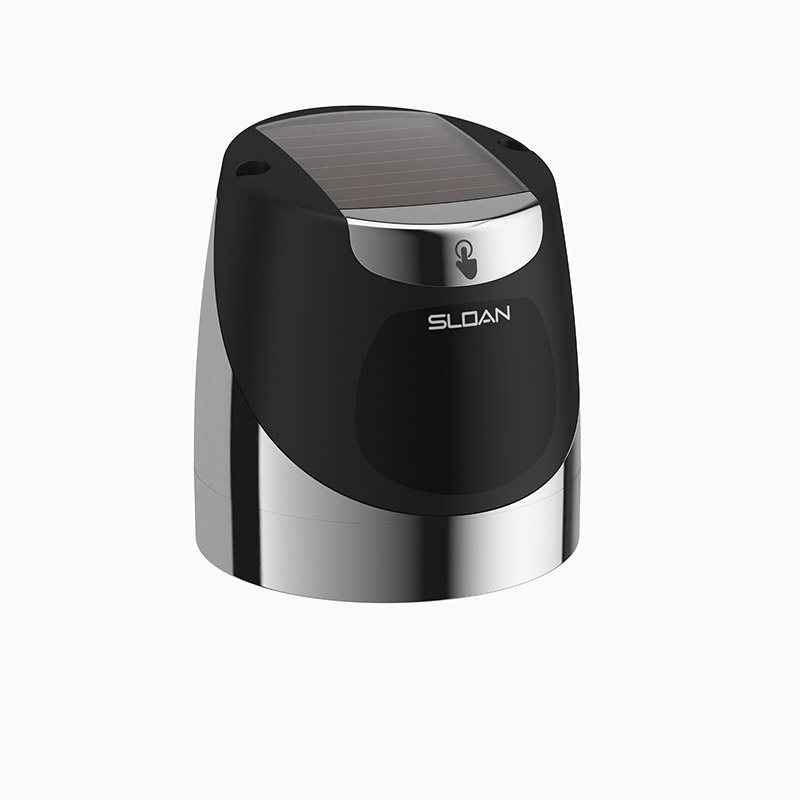

Sloan SOLIS RESS-U 3370059 Exposed Sensor Urinal Retrofit Flushometer
SOLIS RESS-U-0.5-XDT
Code 3370059
0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Adjustable Ground Joint for Tek Control Stop, Electrical Override, Solar
CODE NUMBER
3370059
DESCRIPTION
0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single
Flush, Adjustable Ground Joint for Tek Control Stop, Electrical
Override, Solar, SOLIS® Exposed Sensor Urinal Retrofit Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Polished Chrome (CP)
Power Type: Solar
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud
Override: Electrical
Control Stop: Adjustable Ground Joint for Tek (XDT)
FEATURES
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
Engineered Metal Cover with replaceable Lens Window
ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance
Valve Body with an Adjustable Ground Joint Tailpiece
Courtesy Flush® Override Button
Handle cap included
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
Flush Delay: 1s
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
