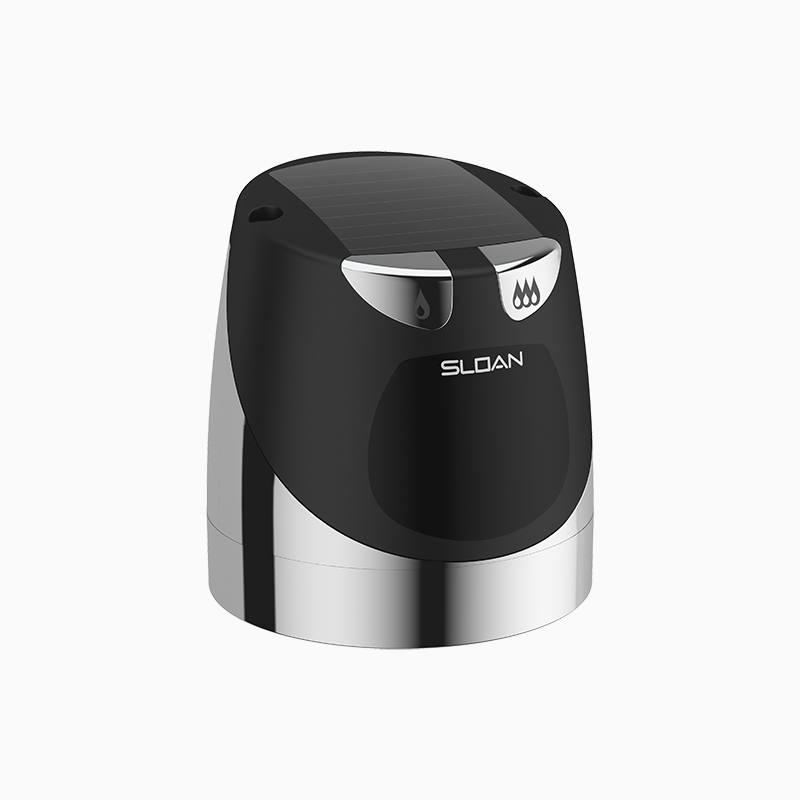

Sloan SOLIS RESS-C 3370050 Retrofit Replacement Flushometer
SOLIS RESS-C-1.6/1.1-XDT
Code 3370050
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Adjustable Ground Joint for Tek Control Stop, Electrical Override, Solar
CODE NUMBER
3370050
DESCRIPTION
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud,
Dual Flush, Adjustable Ground Joint for Tek Control Stop, Electrical
Override, Solar, SOLIS® Exposed Sensor Water Closet Retrofit
Replacement Flushometer.
DETAILS
Flush Volume: 1.6/1.1 gpf (6.0/4.2 Lpf)
Finish: Polished Chrome (CP)
Power Type: Solar
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud
Override: Electrical
Control Stop: Adjustable Ground Joint for Tek (XDT)
FEATURES
Quiet, Exposed, Sloan Solis® Dual Flush, Solar Powered, Sensor Activated Closet Flushometer Retrofit Conversion Kit for Adjustable
Ground Joint Tailpiece Connection with the following features:
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan SOLIS® Electronic Single Flush Solar Powered Infrared Sensor for automatic “No Hands” operation
Engineered Metal Cover with replaceable Lens Window
Diaphragm molded from PERMEX® Rubber Compound for Chloramine resistance
Valve Body with an Adjustable Ground Joint Tailpiece
Valve Body with a Ground Joint Tailpiece
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
Flush Delay: 3s
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
