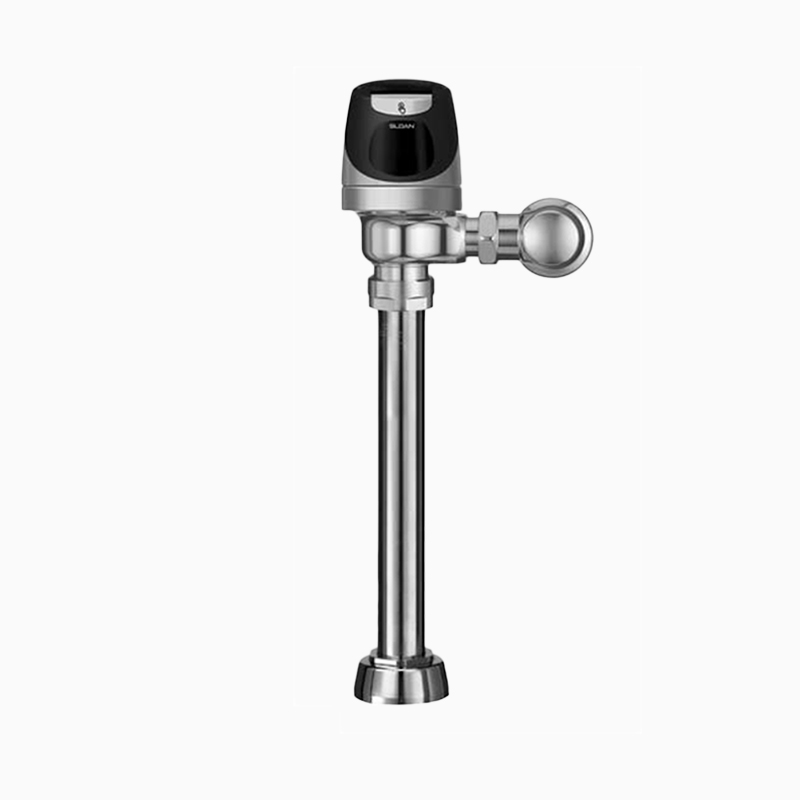

Sloan SOLIS 8113 3370009 Exposed Sensor Water Closet Flushometer
SOLIS 8113-1.6/1.1
Code 3370009
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
CODE NUMBER
3370009
DESCRIPTION
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud,
Single Flush, Electrical Override, Solar, SOLIS® Exposed Sensor Water
Closet Flushometer.
DETAILS
Flush Volume: 1.6/1.1 gpf (6.0/4.2 Lpf)
Finish: Polished Chrome (CP)
Power Type: Solar
Battery Life: 10 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

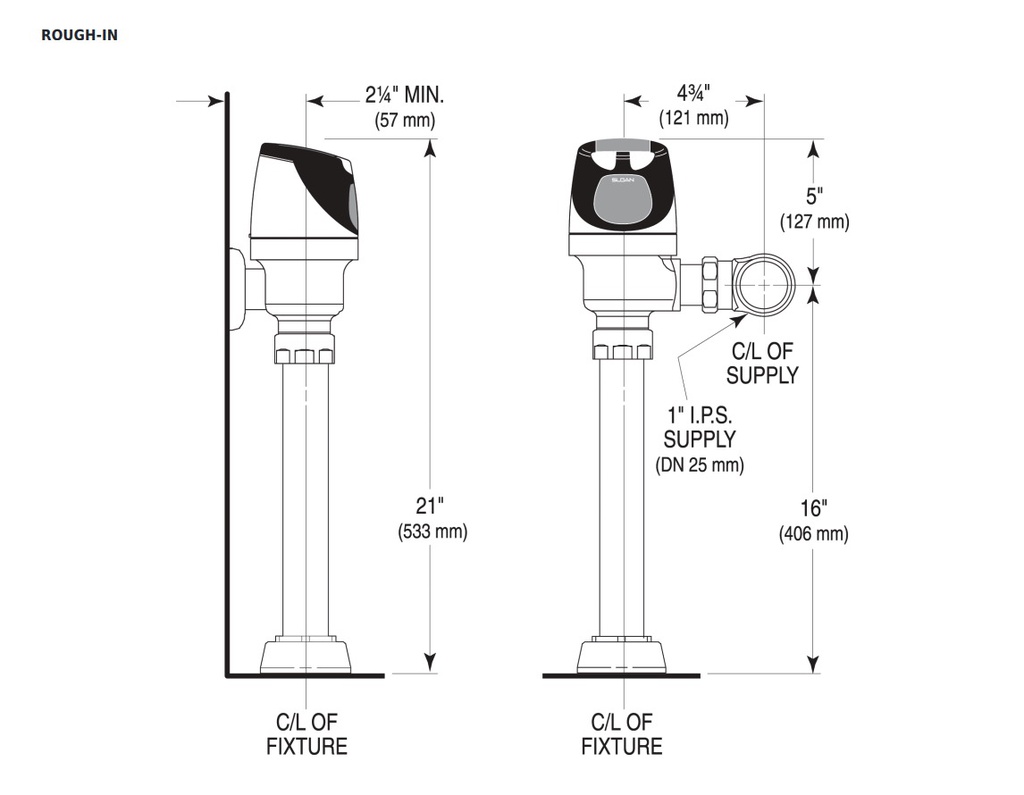

Rough-In Dimension: 16" (406mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Override: Electrical
FEATURES
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Four (4) Size AA Battery Back-up Power Source
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
PERMEX® Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan SOLIS® Electronic Single Flush Solar Powered Infrared Sensor for automatic “No Hands” operation
Engineered Metal Cover with replaceable Lens Window
ELECTRICAL SPECIFICATIONS
Battery Life: 10 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
