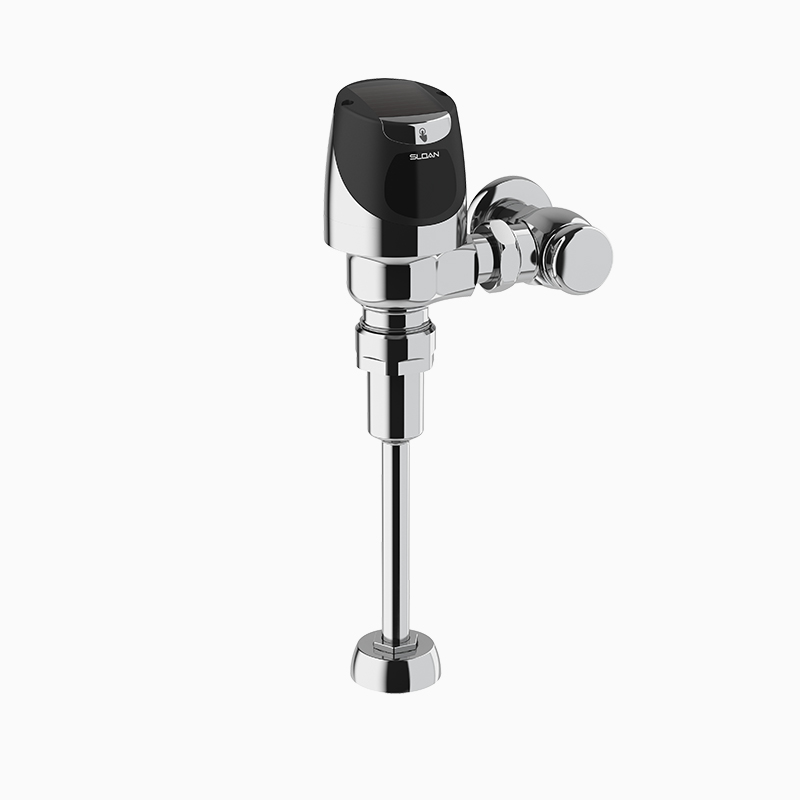

Sloan SOLIS 8186 3370004 Exposed Sensor Urinal Flushometer
SOLIS 8186-0.5
Code 3370004
0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
CODE NUMBER
3370004
DESCRIPTION
0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single
Flush, Electrical Override, Solar, SOLIS® Exposed Sensor Urinal
Flushometer.
DETAILS
Flush Volume: 0.5 gpf (1.9 Lpf)
Finish: Polished Chrome (CP)
Power Type: Solar
Battery Life: 10 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Urinal
Fixture Connection: Top Spud

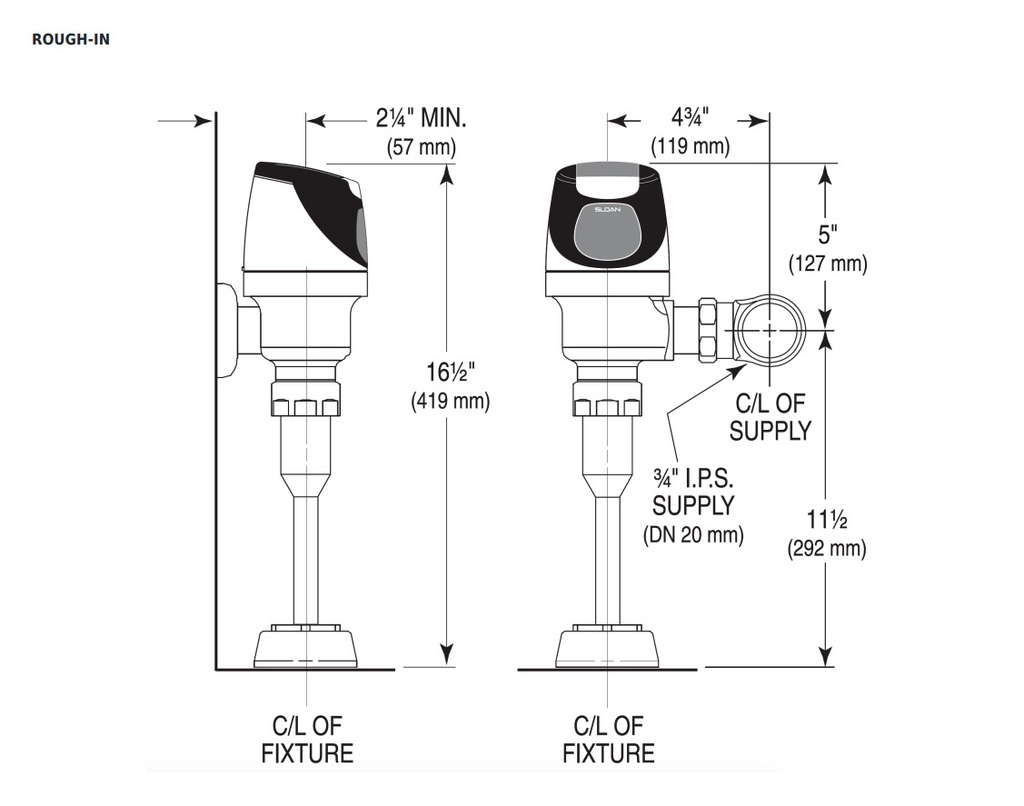

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: ¾" (19mm)
Supply Pipe: ¾" (19mm)
Override: Electrical
FEATURES
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User-friendly, three-second flush delay and Courtesy Flush™ override button
“Low Battery” Flashing LED
Sweat solder adapter with cover tube and cast wall flange with set screw
Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
Synthetic rubber seals for chloramine resistance
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Fixed metering bypass and no external volume adjustment to ensure water conservation
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Engineered Metal Cover with replaceable Lens Window
ADA Compliant Sloan Solis® Solar Powered Infrared Sensor for automatic “No Hands” operation
3/4” IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
User-friendly, three-second flush delay and Courtesy Flush® override button
High Copper, low zinc brass castings for dezincification resistance
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
ELECTRICAL SPECIFICATIONS
Battery Life: 10 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
