Sloan EHD-501 3366051 XLERATOR Sensor Operated Wall Hand Dryer
XLERATOR® Sensor-Operated Wall Hand Dryer EHD-501 110/120V
The EHD-501 Xlerator Hand Dryer automatically operates by means of an infrared optical sensor with a 35 second lockout feature. It activates a strong controlled air blast. Residual moisture is evaporated with a warm steam of air up to 135°F/57°C. One piece heavy duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments. 95% cost savings vs. paper towels and can be easily positioned to comply with ADA requirements or for juvenile height.
The EHD-501 is a powerful yet sound suppressing hand dryer that allows for an average eight second dry time. In addition to the many features of the EHD-501, the dryer also has adjustable speed along with sound and heat control, allowing you to optimize the dryer to best fit your commercial application. The EHD-501 is also available in a variety of different colors, including Graphite, Brushed Nickel, Polished White, Matte White and Polished Chrome.
CODE NUMBER
3366051
DESCRIPTION
Sloan® XLERATOR® Sensor-Operated Wall Hand Dryer EHD-501
110/120V
DETAILS
Finish: Polished Chrome (CP)
Voltage: 110/120V
Wattage: 50/60Hz
Amperage: 11.3-12.2
Mounting: Wall
Power Type: Hardwired

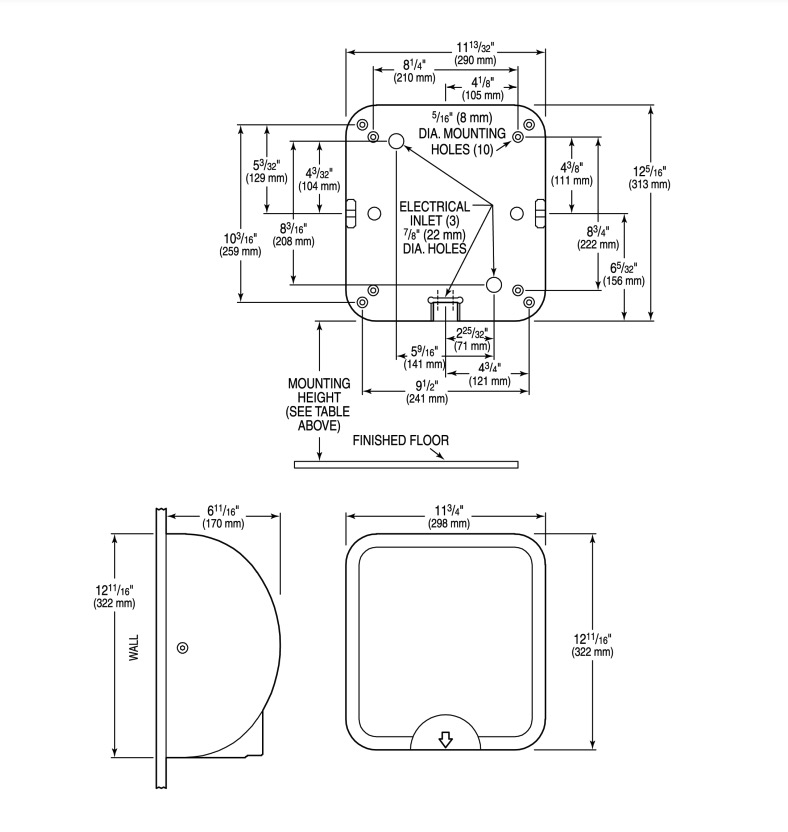

Depth: 6 86/125" (170mm)
Height: 12 86/125" (322mm)
Width: 11 ¾" (298mm)
FEATURES
Hygienic hand drying solution
8 second dry time Electric Specifications: 110-120V – 11.3-12.2
Amps, 1240-1450 Watts, 50/60 Hz
Adjustable speed and sound (High-Low)
Adjustable Heat (High-Low-Off)
95% cost savings vs. paper towels
Weight: 15-17 lbs.
Vandal resistant cover design
Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm),
Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm).
Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Available in Polished White, Matte White, Polished Chrome, Brushed
Nickel and Graphite
35-second lockout feature if hands are not removed
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Virtually maintenance free
Air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
Variations: Available in multiple finishes/colors, available with HEPA filter, available in ECO model Optional Add Ons: Recess kit for ADA compliance, Noise reduction nozzle (note: reduces the decibel level by 9db but increases dry time by approx. 3 seconds), Wall Guards (White, Black, Stainless), XChanger Paper Towel Retrofit Kit either
ADA height or standard height
