Sloan EHD-501-WHT 3366050 Xlerator Hand Dryer 110/120V
EHD-501
Code 3366050

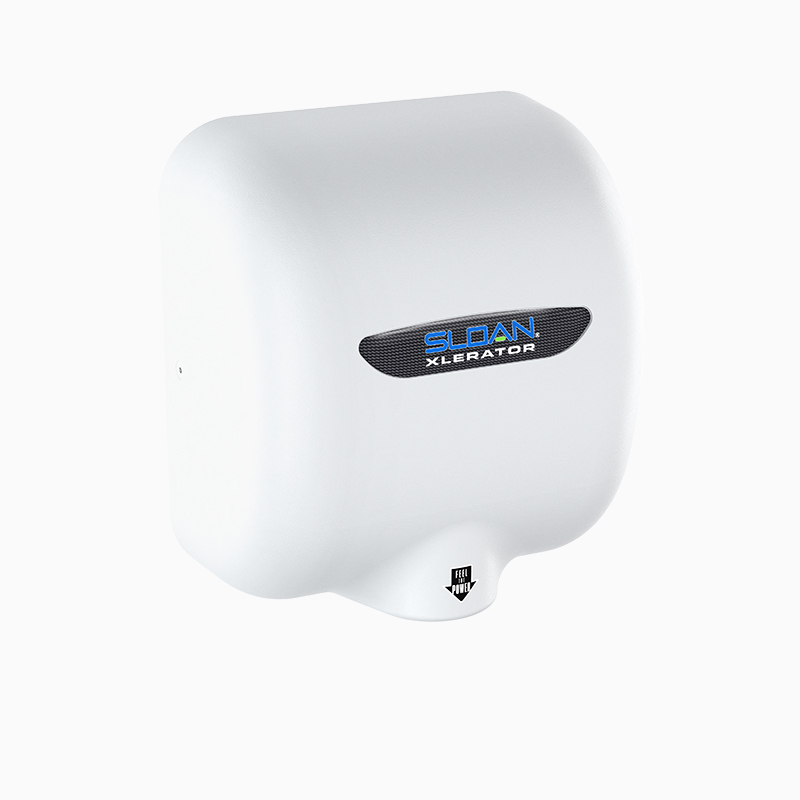

Sloan® XLERATOR® Sensor-Operated Wall Hand Dryer EHD-501 110/120V
The EHD-501 Xlerator Hand Dryer automatically operates by means of an infrared optical sensor with a 35 second lockout feature. It activates a strong controlled air blast. Residual moisture is evaporated with a warm steam of air up to 135°F/57°C. One piece heavy duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments. 95% cost savings vs. paper towels and can be easily positioned to comply with ADA requirements or for juvenile height.
The EHD-501 is a powerful yet sound suppressing hand dryer that allows for an average eight second dry time. In addition to the many features of the EHD-501, the dryer also has adjustable speed along with sound and heat control, allowing you to optimize the dryer to best fit your commercial application. The EHD-501 is also available in a variety of different colors, including Graphite, Brushed Nickel, Polished White, Matte White and Polished Chrome.
CODE NUMBER
3366050
DESCRIPTION
Sloan® XLERATOR® Sensor-Operated Wall Hand Dryer EHD-501
110/120V
DETAILS
Finish: Polished White
Voltage: 110/120V
Wattage: 50/60Hz
Amperage: 11.3-12.2
Mounting: Wall
Power Type: Hardwired
Depth: 6 86/125" (170mm)
Height: 12 86/125" (322mm)
Width: 11 ¾" (298mm)
FEATURES
Hygienic hand drying solution
10 second dry time
Electric Specifications: 110-120V – 4.3-4.5 Amps, 460-530 Watts, 50/60 Hz
Adjustable speed and sound (High-Low)
No Heat option
95% cost savings vs. paper towels
Weight: 15-17 lbs.
Vandal resistant cover design

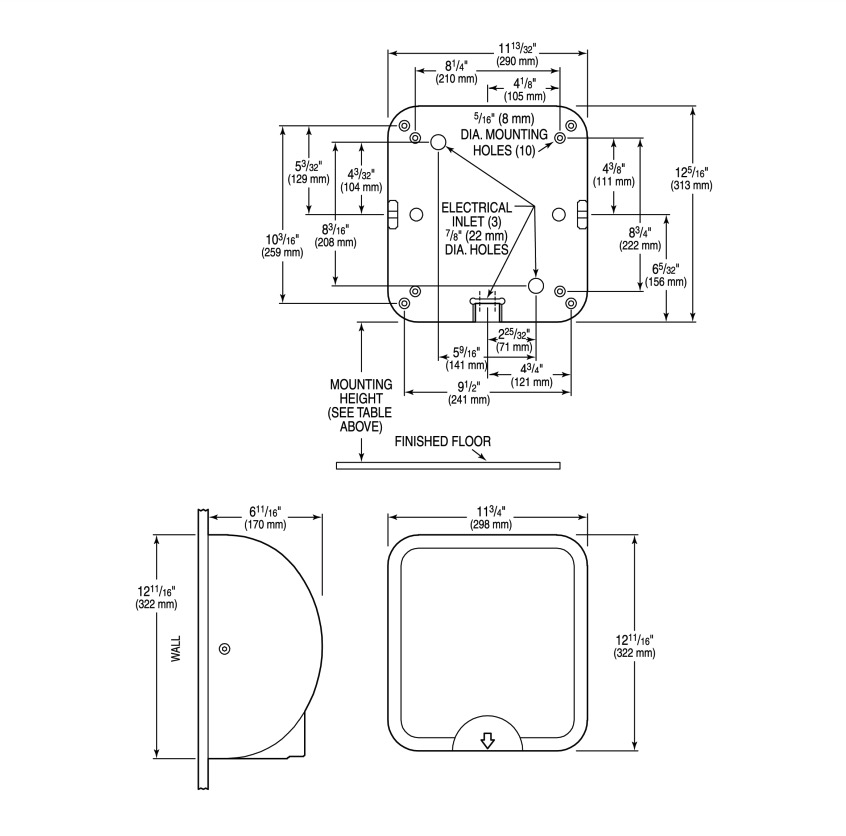

Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm).
Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
Can install multiple units on one circuit
35-second lockout feature if hands are not removed
Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
Virtually maintenance free
Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
Variations: Available in multiple finishes/colors, available with HEPA filter, available in standard model with heat option
Available in Polished White, Matte White, Polished Chrome, Brushed Nickel and Graphite
Optional Add Ons: Recess kit for ADA compliance, Noise reduction nozzle (note: reduces the decibel level by 9db but increases dry time by approx. 3 seconds), Wall Guards (White, Black, Stainless), XChanger Paper Towel Retrofit Kit either ADA height or standard height
