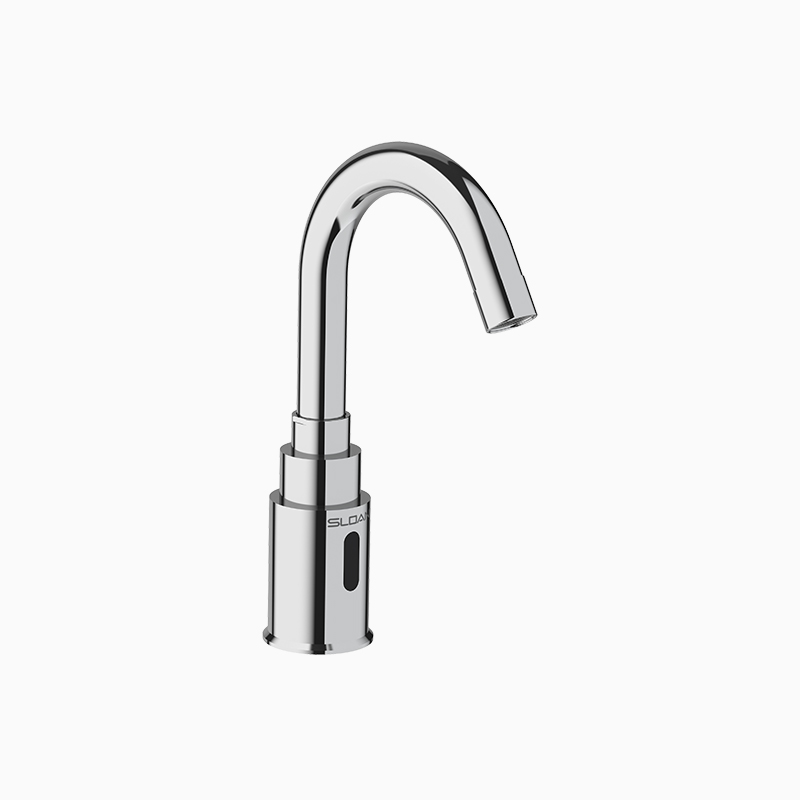

Sloan SF-2200 3362109 Hardwired Powered Gooseneck Body Faucet
SF-2200-4-PLG-TEE-CP-2.2GPM-LAM-FCT
Code 3362109
4" Trim Plate, Plug Adapter Power Supply, Back-Check Tee, Polished Chrome Finish, 2.2 gpm, Laminar Spray, Infrared Sensor
CODE NUMBER
3362109
DESCRIPTION
4" Trim Plate, Plug Adapter Power Supply, Back-Check Tee, Polished
Chrome Finish, 2.2 gpm, Laminar Spray, Infrared Sensor, Sloan®
Hardwired-Powered Deck-Mounted Gooseneck Body.
DETAILS
Flow Rate: 2.2 gpm (8.3 Lpm) (2.2GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared
Mounting Type: Single Hole
Trim Plate: 4" (102mm) (4)
Power Supply: Plug Adapter (PLG)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30 seconds
Factory Default Gallons per Cycle: 1.1
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated,
Brass Gooseneck Hand Washing Faucet with the following features:
Adjustable Infrared Sensor Range
36” (914 mm) Long Sensor Cable
24” (610 mm) Long Flex Hose
Filtered Solenoid Valve with serviceable Strainer Filter
Includes Four (4) AA-size Batteries
Includes appropriate Mounting Hardware
ELECTRICAL SPECIFICATIONS
Battery Life: 2 years 8,000 cycles/month
Timeout Adjustment Settings: 30s
