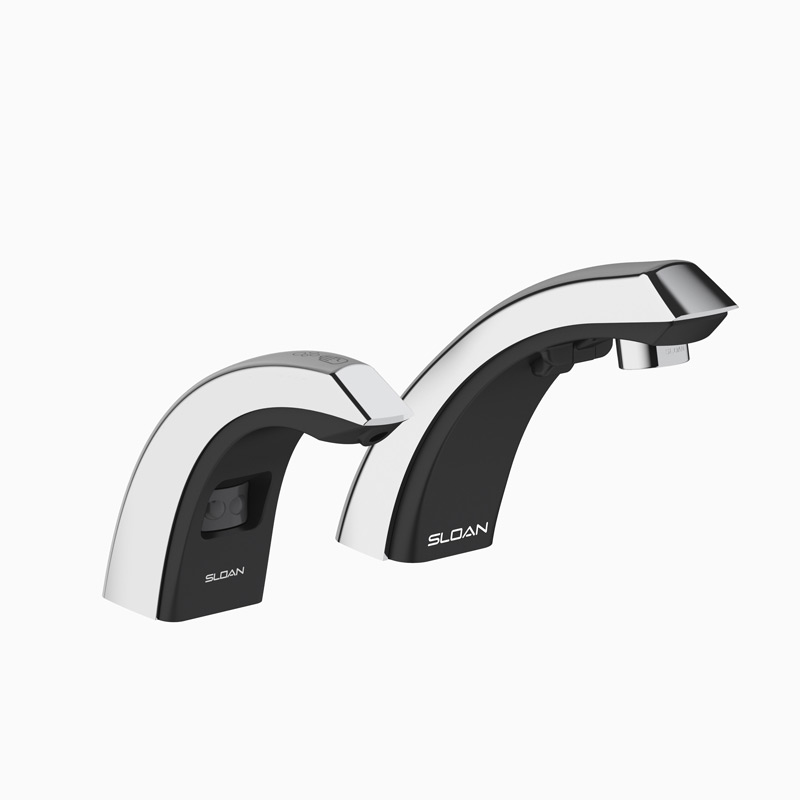

Sloan ESD-801 3346096 EBF-85 Faucet and ESD-800 Soap Dispenser
ESD-801-CP
Code 3346096
Polished Chrome Finish
CODE NUMBER
3346096
DESCRIPTION
Polished Chrome Finish, EBF-85 Faucet and ESD-800 Soap Dispenser.
COMPONENTS
Faucet: Code 3315010
Soap Dispenser: Code 3346097
DETAILS
Finish: Polished Chrome (CP)
FAUCET FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated,
Brass Hand Washing Faucet with the following features:
Fiber Optic, Automatic, Self-adaptive Sensing
Isolated Latching Solenoid Operator, isolates magnetic components
from water contact
Audible Tone Low Battery Indicator
Serviceable Filtered Solenoid Valve
Vandal Resistant Spray Head with Pressure Compensating Flow
Control
Polypropylene Optic Cable Protection
Includes four (4) C-size Alkaline Batteries
SOAP DISPENSER FEATURES
Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand
Washing Foam Soap Dispenser with the following features:
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor Assembly suspended under counter connected to soap dispenser spout
Motor Assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations
1,500 dispenses per foam soap bottle
Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
GFI outlet suggested per code
120V/15 Amp
Optional AC adaptor can be purchased separately (part number 0346090)
Select the ESD-801 to combine ESD-800 soap dispenser, 2 bottles of soap and the EBF-85-4 faucet
