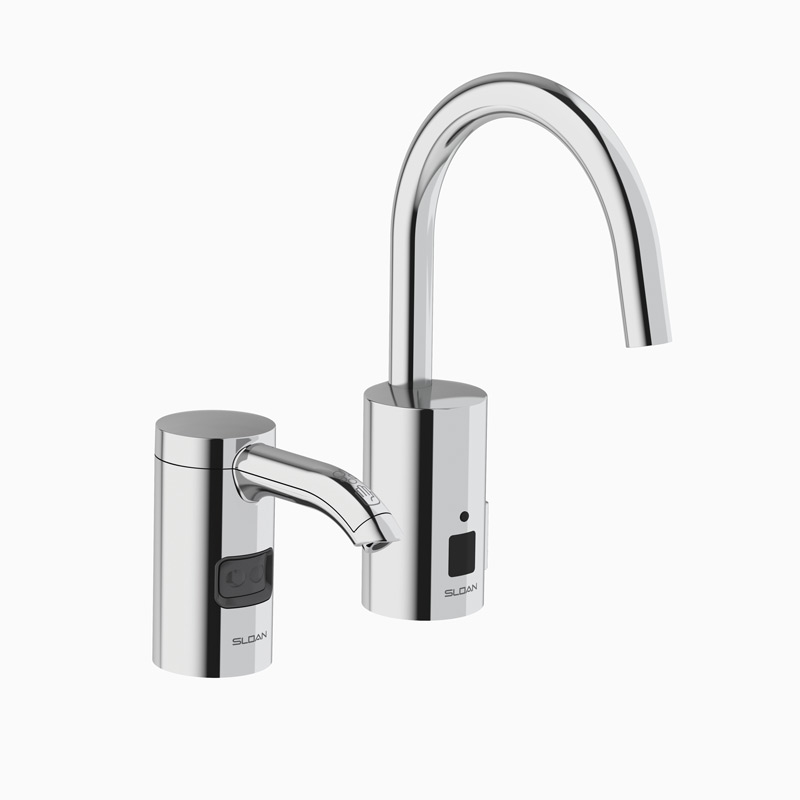

Sloan ESD-701 3346094 EAF-750 Faucet and ESD-700 Soap Dispenser
ESD-701-CP
Code 3346094
Polished Chrome Finish
CODE NUMBER
3346094
DESCRIPTION
Polished Chrome Finish, EAF-750 Faucet and ESD-700 Soap Dispenser.
COMPONENTS
Faucet: Code 3335074
Soap Dispenser: Code 3346095
DETAILS
Finish: Polished Chrome (CP)
FAUCET FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Gooseneck Hand Washing Faucet with the following features:
12/24 Hour Hygienic Rinse Line Purge Function - Field Settable
Unitary Spout Housing Assembly for Easy Cleaning
Modular One-piece Construction with all Concealed Components above deck
Double Infrared Sensors with Automatic Setting Feature and
Microprocessor
Low Battery Indicator
Bi-stable Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and Strainer
8 volt Lithium CR P2 Commercial Battery included
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes
Installation Similar to Conventional Single Lever Faucet
SOAP DISPENSER FEATURES
Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand Washing Foam Soap Dispenser with the following features:
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor Assembly suspended under counter connected to soap dispenser spout
Motor Assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations
1,500 dispenses per foam soap bottle
Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
GFI outlet suggested per code
120V/15 Amp
Optional AC adaptor can be purchased separately (part number 0346090)
