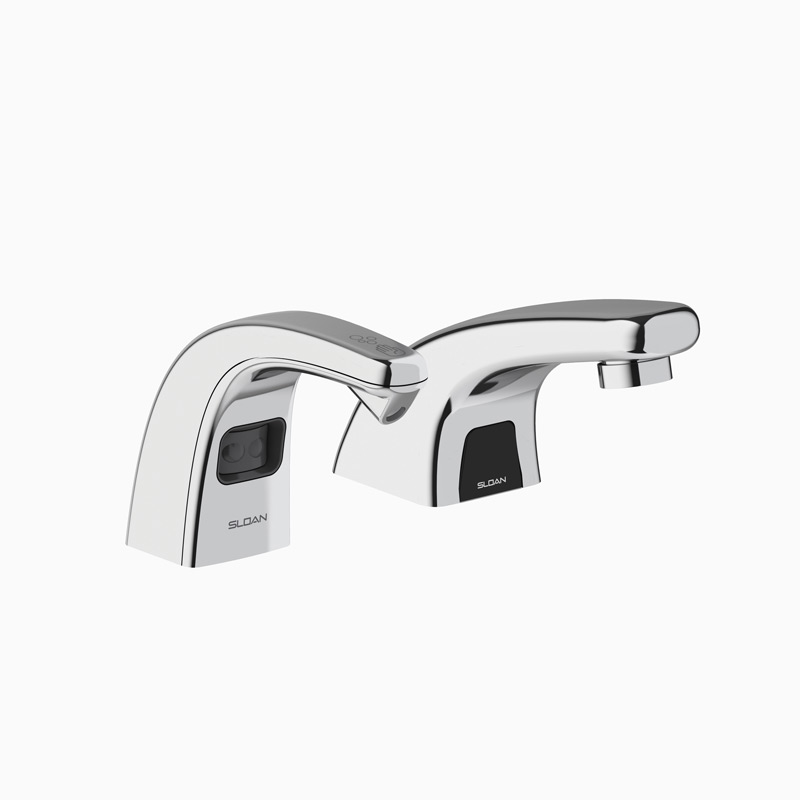

Sloan ESD-601 3346090 EBF-615 Faucet and ESD-600 Soap Dispenser
ESD-601-CP
Code 3346090
Polished Chrome Finish
CODE NUMBER
3346090
DESCRIPTION
Polished Chrome Finish, EBF-615 Faucet and ESD-600 Soap Dispenser.
COMPONENTS
Faucet: Code 3315114
Soap Dispenser: Code 3346091
DETAILS
Finish: Polished Chrome (CP)
FAUCET FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated,
Brass Pedestal Hand Washing Faucet with the following features:
Sensor Range Adjustment Screw
Low Battery LED Indicator Light
User friendly Variable Time Out Settings
Filtered Solenoid Valve with serviceable Strainer Filter
Vandal Resistant Spray Head with Pressure Compensating Flow Control
Metal Jacketed Wire Protection for Sensor Lead
Includes four (4) AA-size Alkaline Batteries
Includes appropriate Mounting Hardware
SOAP DISPENSER FEATURES
Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand
Washing Foam Soap Dispenser with the following features:
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor Assembly suspended under counter connected to soap dispenser spout
Motor Assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations
1,500 dispenses per foam soap bottle
Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
Additional foam soap can be purchased through Sloan (ESD-325) or
GOJO distribution (8565-04-N6300GN)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
GFI outlet suggested per code
120V/15 Amp
Optional AC adaptor can be purchased separately (part number 0346090)
Select the ESD-601 to combine ESD-600 soap dispenser, 2 bottles of soap and the EBF-615-4 faucet
