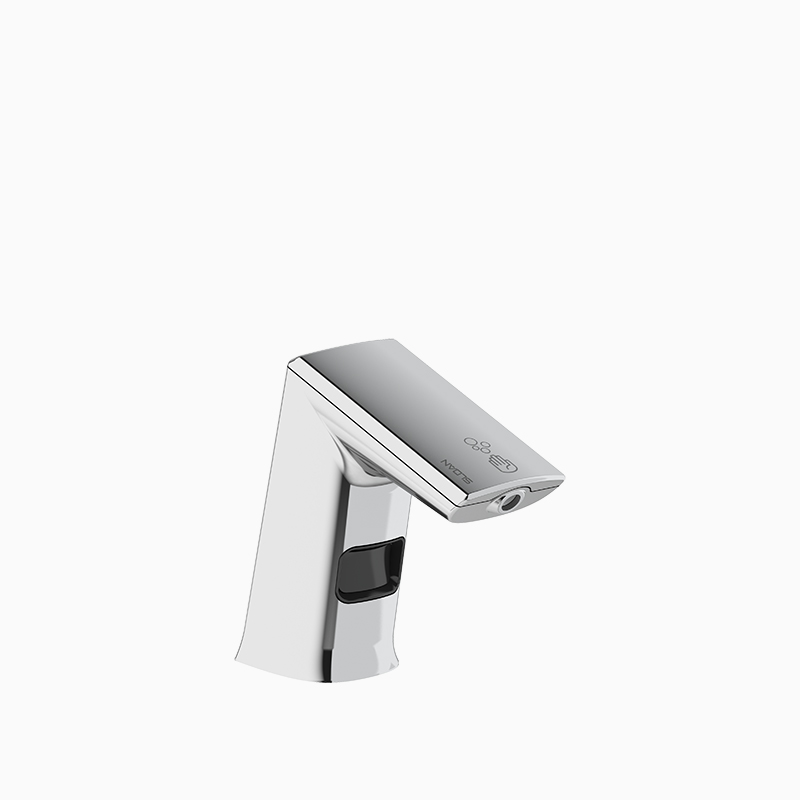

Sloan ESD-500 3346087 Basys Style Soap Dispenser
ESD-500-CP
Code 3346087
Polished Chrome Finish
CODE NUMBER
3346087
DESCRIPTION
Sloan® Deck-Mounted Foam Soap Dispenser, Polished Chrome Finish
DETAILS
Finish: Polished Chrome (CP)
Power Type: Battery
Height: 5" (127mm)
Width: 2" (51mm)
Depth: 5 ⅕" (132mm)
Maximum Deck Thickness: 2" (51mm)
Sensor Type: IR
FEATURES
Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand
Washing Foam Soap Dispenser with the following features:
Modular one-piece construction easily attaches to deck surface
All electronics in spout are sealed
Designed for drip free foam dispensing operation
Motor Assembly suspended under counter connected to soap dispenser spout
Motor Assembly rotates 360 degrees for easy installation
Battery life of 45,000 activations
1,500 dispenses per foam soap bottle
Ships with 2 bottles of non-scented, non-colored foam soap (1500ml per bottle)
Additional foam soap can be purchased through Sloan (ESD-325) or
GOJO distribution (8565-04-N6300GN)
Ships with battery pack (4 "D" Alkaline batteries included)
Sensor range – nominal 5”
GFI outlet suggested per code
120V/15 Amp
Optional AC adaptor can be purchased separately (part number 0346090)
Select the ESD-501 to combine ESD-500 soap dispenser, 2 bottles of soap and the EFX.250.500.0000 faucet
SOAP REFILLS
ESD-325 (1500mL)
