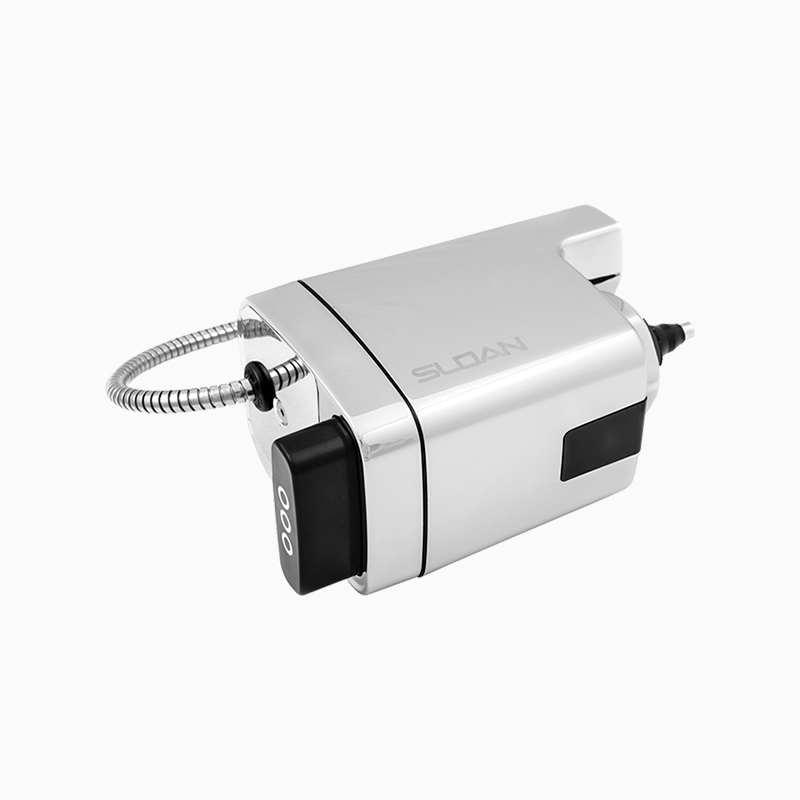

Sloan EL-700-A 3345100 Urinal Water Closet Retrofit Flushometer
EL700A-TMO-LT
Code 3345100
Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, True Mechanical Override, Hardwired, Infrared
CODE NUMBER
3345100
DESCRIPTION
Polished Chrome Finish, Fixture Connection Top Spud, Single Flush,
True Mechanical Override, Hardwired, Infrared, Exposed Sensor
Hardwired Urinal/Water Closet Retrofit Flushometer.
DETAILS
Finish: Polished Chrome (CP)
Power Type: Hardwired
Fixture Type: Urinal/Water Closet
Fixture Connection: Top Spud
Override: True Mechanical (TMO)
FEATURES
Non-Hold-Open True Mechanical Override Full Flush Button
User-friendly three (3) second flush delay
“User in View” Flashing LED
No External Volume Adjustment to Ensure Water Conservation
ELECTRICAL SPECIFICATIONS
Arming Delay: 1-3 seconds
Sensor Range: 22" – 42" (559 – 1,067mm)
Transformers (specify separately):
EL-386 (Up to 1 flushometer)
EL-451 (up to 6 flushometers)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
