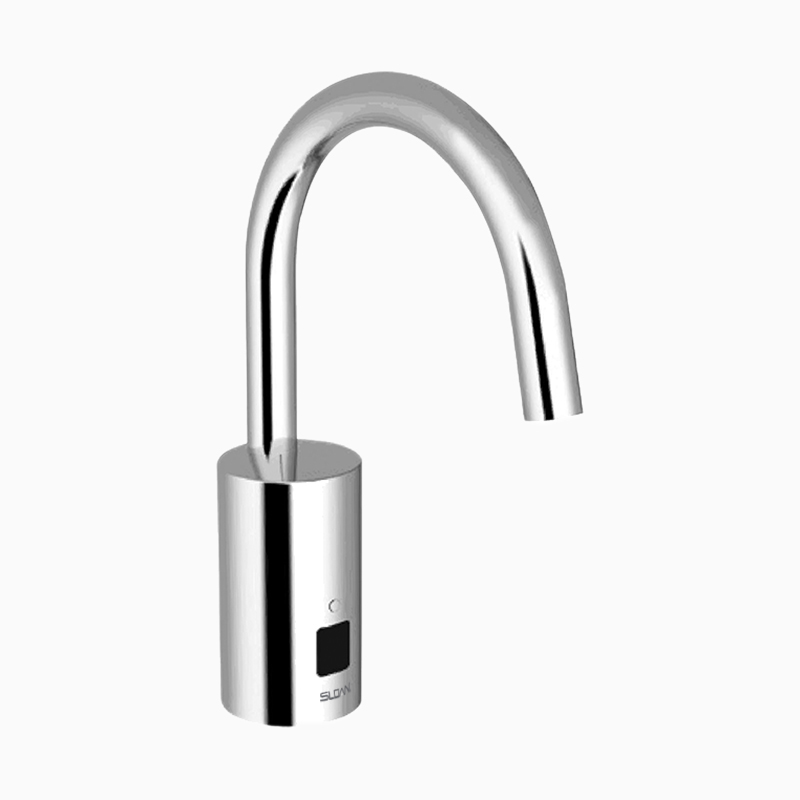

Sloan EAF-700-P 3335096 H/W Electronic Faucet
EAF-700-PLG-CP-1.5GPM-LAM-IQ-FCT
Code 3335096
Bluetooth Adapter, Plug Adapter Power Supply, Mixer Not Included, Polished Chrome Finish, 1.5 gpm, Laminar Spray, Infrared Sensor
CODE NUMBER
3335096
DESCRIPTION
Bluetooth Adapter, Plug Adapter Power Supply, Mixer Not Included,
Polished Chrome Finish, 1.5 gpm, Laminar Spray, Infrared Sensor,
Optima® Hardwired-Powered Deck-Mounted Gooseneck Body.
DETAILS
Flow Rate: 1.5 gpm (5.7 Lpm) (1.5GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared
Mounting Type: Single Hole
Power Supply: Plug Adapter (PLG)
Temperature Mixer: Mixer Not Included
Finish: Polished Chrome (CP)
Factory Default Timeout: 30 seconds
Factory Default Gallons per Cycle: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Gooseneck Hand Washing Faucet with the following features:
12/24 hour Hygienic Rinse Line Purge Function – Field Settable
Unitary Spout Housing Assembly for Easy Cleaning
Modular One-piece Construction with all Concealed Components above deck
Double Infrared Sensors with Automatic Setting Feature and Microprocessor
Bi-stable Magnetic Solenoid Valve

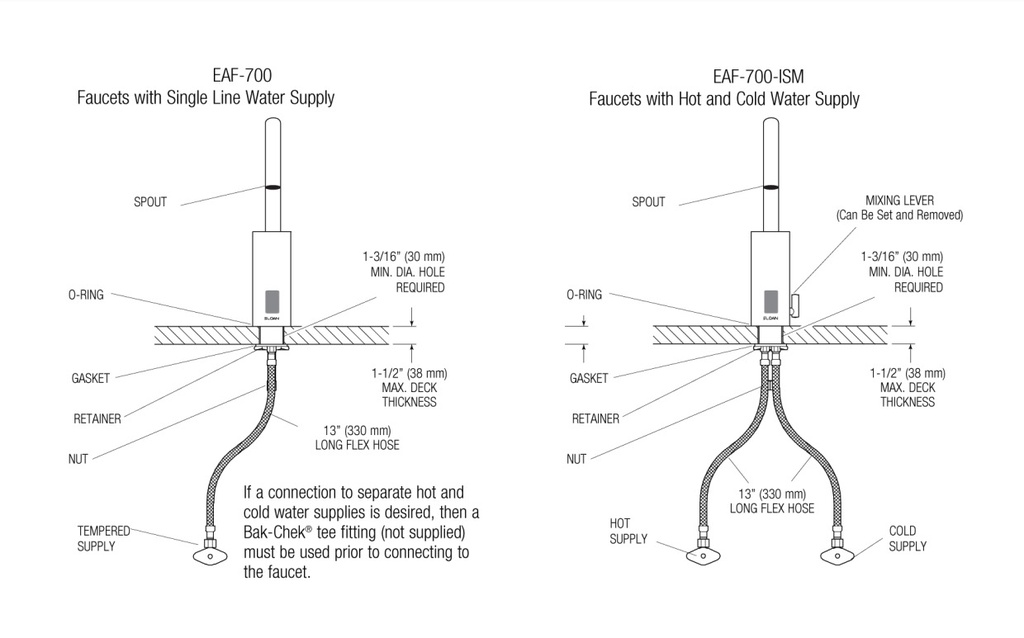

Water Supply Connection with Flexible High-pressure Hose and Strainer
128 VAC/6.75 VDC Plug-in Adapter (must be ordered separately for Less Adapter (-LT) faucets)
IQ-Click feature permits activation of continuous run and temporary off modes
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes
ELECTRICAL SPECIFICATIONS
Sensor Range: 4" – 5" (102 – 127mm)
Timeout Adjustment Settings: 30s
