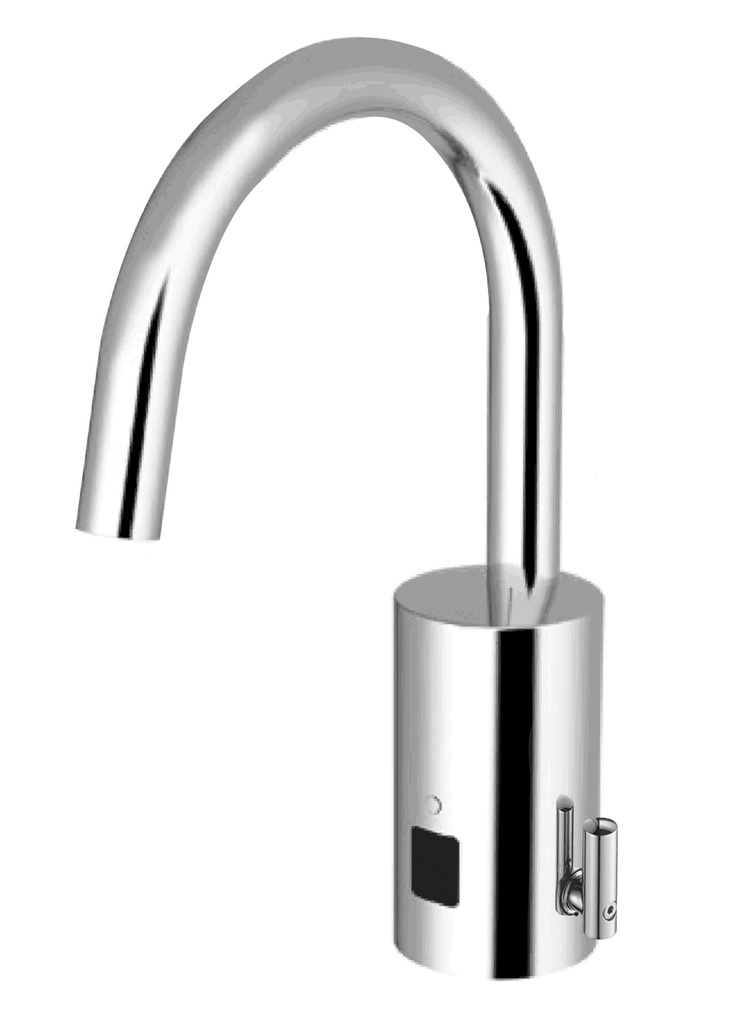

Sloan EAF-750 3335074 Gooseneck Battery Mixer
EAF-750-BAT-ISM-CP-1.5GPM-LAM-IQ-FCT
Code 3335074
Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish, 1.5 gpm, Laminar Spray, Infrared Sensor
CODE NUMBER
3335074
DESCRIPTION
Battery Power Supply, Integrated Side Mixer, Polished Chrome Finish,
1.5 gpm, Laminar Spray, Infrared Sensor, Optima® Battery-Powered
Deck-Mounted Gooseneck Body.
DETAILS
Flow Rate: 1.5 gpm (5.7 Lpm) (1.5GPM)
Spray Type: Laminar (LAM)
Sensor Type: Infrared
Mounting Type: Single Hole
Power Supply: Battery (BAT)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 30 seconds
Factory Default Gallons per Cycle: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, Cast
Brass Gooseneck Hand Washing Faucet with the following features:
12/24 Hour Hygienic Rinse Line Purge Function - Field Settable
Unitary Spout Housing Assembly for Easy Cleaning
Modular One-piece Construction with all Concealed Components above deck
Double Infrared Sensors with Automatic Setting Feature and Microprocessor
Low Battery Indicator
Bi-stable Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and Strainer
8 volt Lithium CR P2 Commercial Battery included
Appropriate Mounting Hardware included
IQ-Click feature permits activation of continuous run and temporary off modes
Installation Similar to Conventional Single Lever Faucet
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
Timeout Adjustment Settings: 30s
