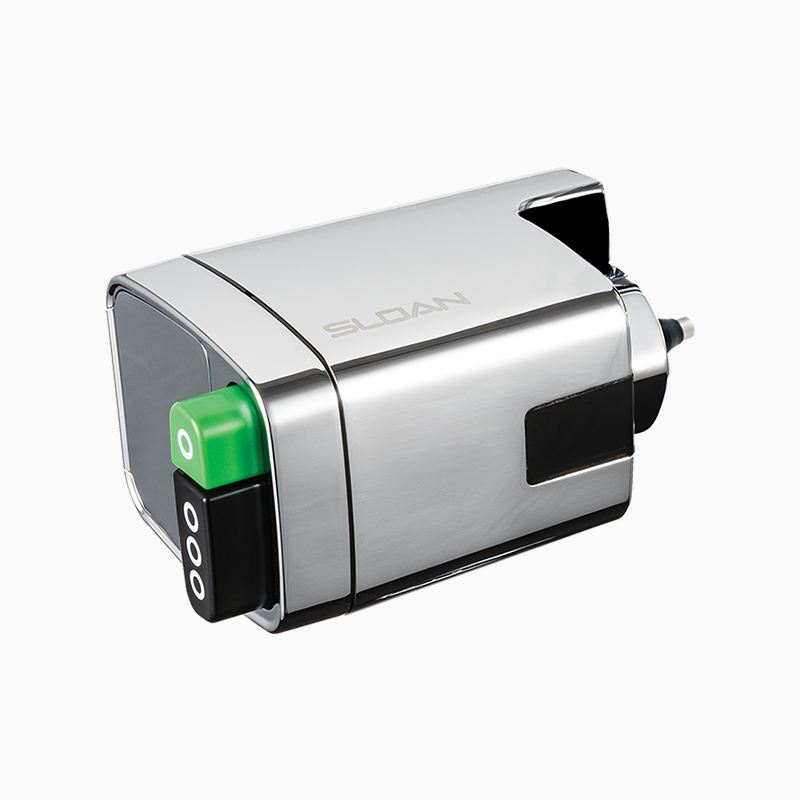

Sloan EBV550A 3325501 Exposed Sensor Water Closet Retrofit Flushometer
EBV550A-1.6/1.1-TMO
Code 3325501
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, True Mechanical Override, Battery, Infrared
CODE NUMBER
3325501
DESCRIPTION
1.6/1.1 gpf, Polished Chrome Finish, Fixture Connection Top Spud,
Dual Flush, True Mechanical Override, Battery, Infrared, Exposed
Sensor Water Closet Retrofit Flushometer.
DETAILS
Flush Volume: 1.6/1.1 gpf (6.0/4.2 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 3 years
Valve: Diaphragm/Piston
Fixture Type: Water Closet
Fixture Connection: Top Spud
Override: True Mechanical (TMO)
FEATURES
ADA Compliant Optima Plus® Battery Powered Infrared Side Mount Sensfautomatic “No Hands” operation
Non-Hold-Open True Mechanical Override Full Flush Button
If the user is present fless than one minute and leaves the sensing zone chooses the small GREEN override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving
1/2 gallon of water†
If the user is present fgreater than one minute and leaves the zone chooses the large BLACK override button, the full flush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper
User friendly three (3) second Flush Delay
Four (4) size C batteries included
72-Hour Sentinel Flush
“Low Battery” Flashing LED
“User in View” Flashing LED
No External Volume Adjustment to Ensure Water Conservation
The Side Mount units can be used on standard rough-in Sloan, Royal and Regal flushometers.
ELECTRICAL SPECIFICATIONS
Arming Delay: 1-3 seconds
Battery Life: 3 years
Control Circuit: 6 VDC Input/72 Hour Sentinel Flush/Solid State
Sensor Range: 22" – 42" (559 – 1,067mm)
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater
minimum flowing pressure - consult manufacturer
Requirements.
