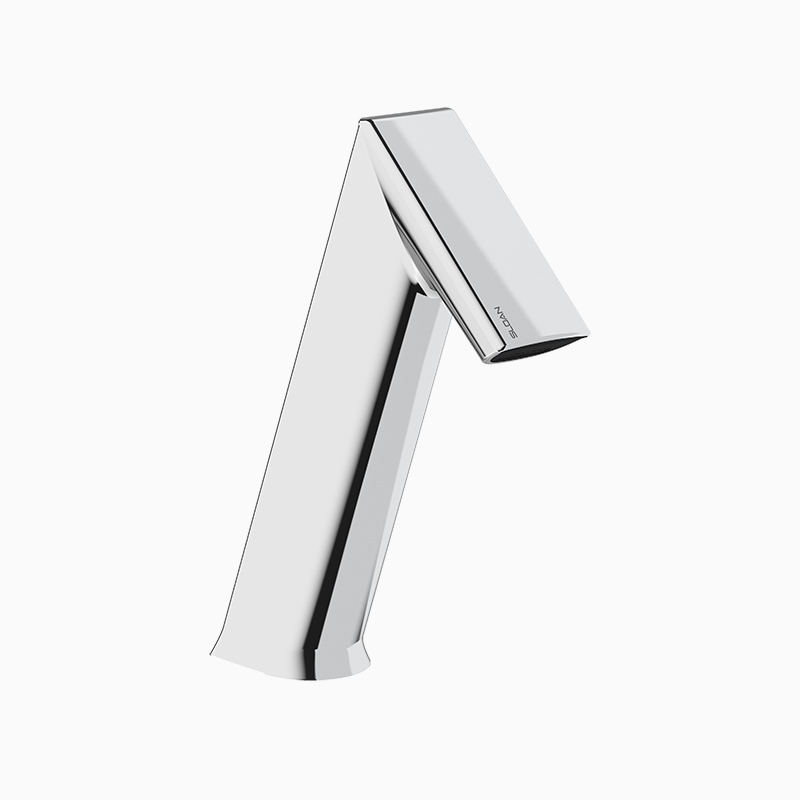

Sloan EFX-100 3324215 BASYS Hardwired High Body Faucet
EFX-100-HLP-TEE-CP-1.5GPM-FCT
Code 3324215
Bluetooth Adapter, Trim Plate: None, Hardwired Less Plug Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor
CODE NUMBER
3324215
DESCRIPTION
Bluetooth Adapter, Trim Plate: None, Hardwired Less Plug Power
Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor, BASYS® Hardwired-Powered Deck-Mounted High Body.
DETAILS
Flow Rate: 1.5 gpm (5.7 Lpm) (1.5GPM)
Spray Type: Aerated (installed) or Laminar (in box)
Sensor Type: Infrared
Mounting Type: Single Hole
Trim Plate: None
Power Supply: Hardwired Less Plug (HLP)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
One tool service
All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Supply strainer serviceable from above deck
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode
Flexible, high pressure supply hoses, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature Includes all mounting hardware
Line purge mode, eliminates stagnant water
Adjustable time-outs
Standard Bowed Crown
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
