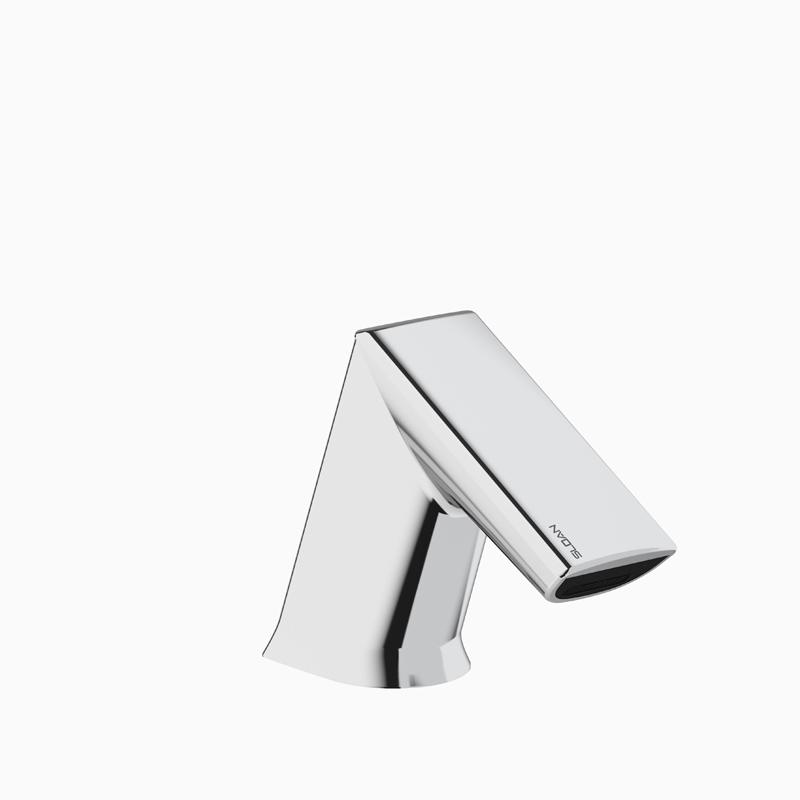

Sloan EFX-300 3324088 BASYS Hardwired Powered Deck Mounted Faucet
EFX-300-HLP-TEE-CP-0.5GPM-MLM-FCT
Code 3324088
Bluetooth Adapter, Trim Plate: None, Hardwired Less Plug Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
CODE NUMBER
3324088
DESCRIPTION
Bluetooth Adapter, Trim Plate: None, Hardwired Less Plug Power
Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, MultiLaminar Spray, Infrared Sensor, BASYS® Hardwired-Powered DeckMounted Low Body.
DETAILS
Flow Rate: 0.5 gpm (1.9 Lpm) (0.5GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared
Mounting Type: Single Hole
Trim Plate: None
Power Supply: Hardwired Less Plug (HLP)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.083
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
One tool service
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
Flexible, high pressure supply hose, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature
Includes all mounting hardware
Standard Bowed Crown
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
