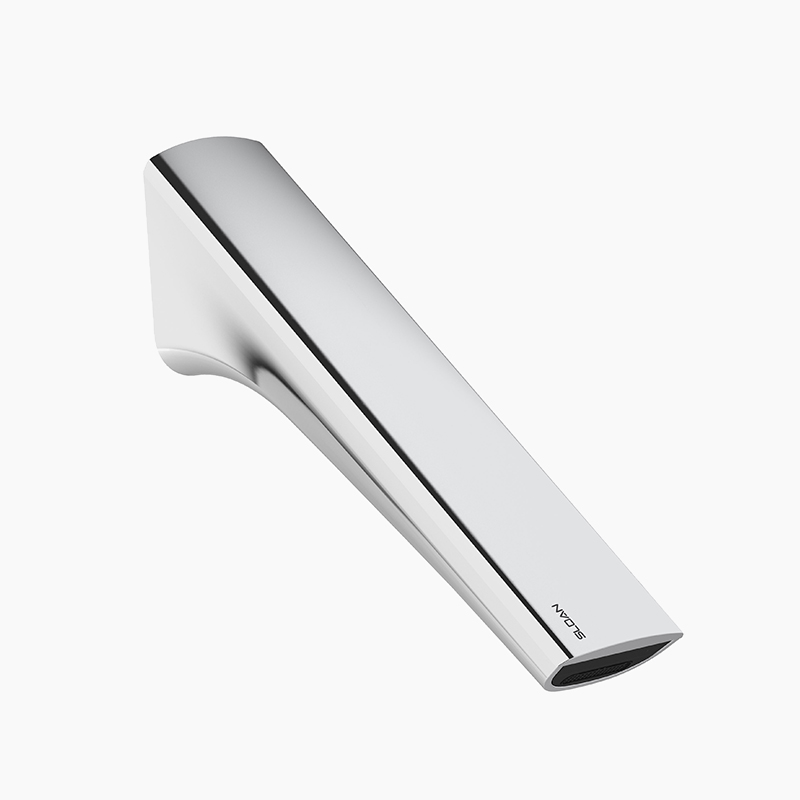

Sloan EFX-850 3324056 BASYS Battery Powered Wall Mounted Faucet
EFX-850-BAT-TEE-CP-1.5GPM-FCT
Code 3324056
Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor
CODE NUMBER
3324056
DESCRIPTION
Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5
gpm, Aerated (installed) or Laminar (in box) Spray, Infrared Sensor,
BASYS® Battery-Powered Wall-Mounted Wall Body.
DETAILS
Flow Rate: 1.5 gpm (5.7 Lpm) (1.5GPM)
Spray Type: Aerated (installed) or Laminar (in box)
Sensor Type: Infrared
Mounting Type: Single Hole
Power Supply: Battery (BAT)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
One tool service
All wetted components are stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
Solenoid housed in removable carrier that includes supply strainer
Integral above deck water supply shut off
Supply strainer serviceable from above deck
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
Bi-stable magnetic solenoid
One (1) CR-P2 battery
Double infrared sensors with automatic setting feature
Optional Wall Flange included
Line Purge mode, eliminates stagnant water
Adjustable time-outs and sleep/cleaning mode
Sleep/cleaning Mode
Includes all mounting hardware
Standard Bowed Crown
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
