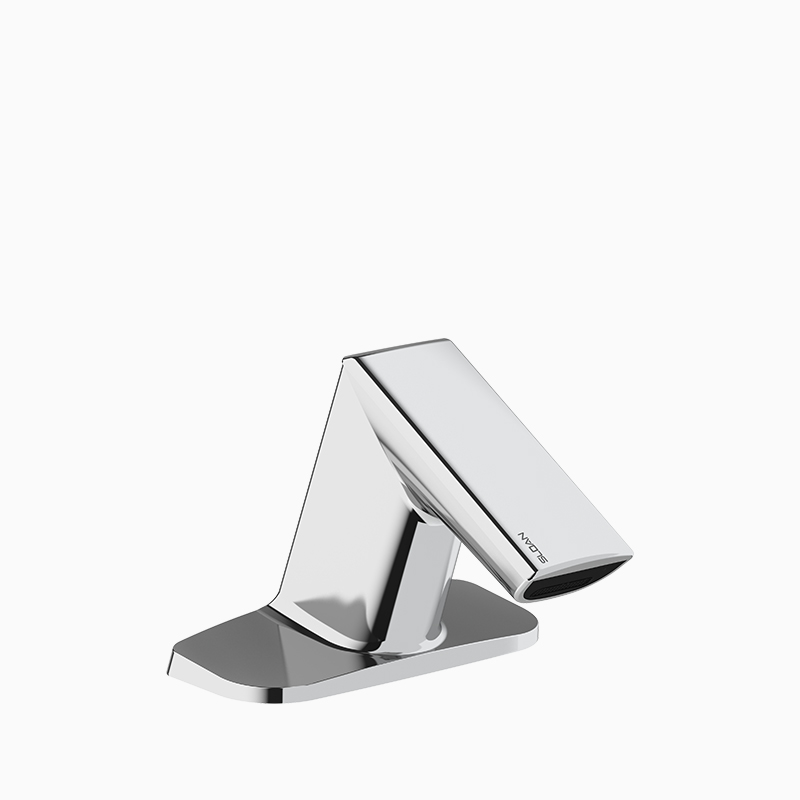

Sloan EFX-600 3324050 BASYS Hardwired Powered Integrated Faucet
EFX-600-HLP-TEE-CP-0.5GPM-MLM-FCT
Code 3324050
Bluetooth Adapter, Hardwired Less Plug Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
CODE NUMBER
3324050
DESCRIPTION
Bluetooth Adapter, Hardwired Less Plug Power Supply, Back-Check
Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared
Sensor, BASYS® Hardwired-Powered Deck-Mounted Low Integrated
Base Body.
DETAILS
Flow Rate: 0.5 gpm (1.9 Lpm) (0.5GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared
Mounting Type: Single Hole
Power Supply: Hardwired Less Plug (HLP)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.083
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Supply strainer serviceable from above deck
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
Flexible, high pressure supply hoses, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature
Integral 4-inch base
Includes all mounting hardware
Line Purge mode, eliminates stagnant water
Standard Bowed Crown
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
