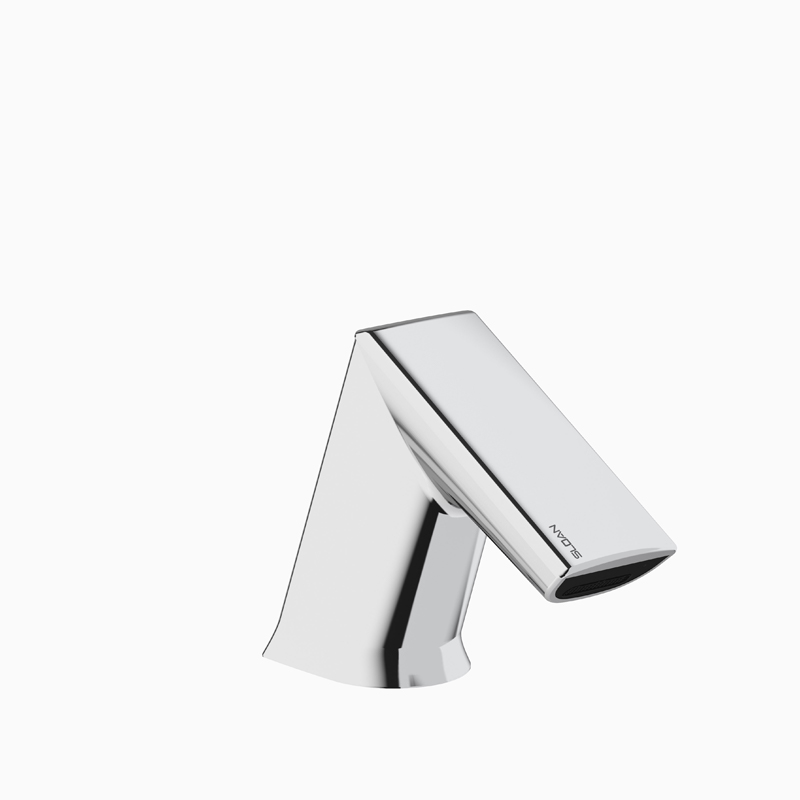

Sloan EFX-380 3324022 Turbine Powered Deck Mounted Low Body
EFX-380-TUR-TEE-CP-1.5GPM-CAP-BAA-FCT
Code 3324022
Trim Plate: None, Turbine Power Supply, Back-Check Tee, Polished Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray, Capacitance Sensor
CODE NUMBER
3324022
DESCRIPTION
Trim Plate: None, Turbine Power Supply, Back-Check Tee, Polished
Chrome Finish, 1.5 gpm, Aerated (installed) or Laminar (in box) Spray,
Capacitance Sensor, BASYS® Turbine-Powered Deck-Mounted Low
Body.
DETAILS
Flow Rate: 1.5 gpm (5.7 Lpm) (1.5GPM)
Spray Type: Aerated (installed) or Laminar (in box)
Sensor Type: Capacitance (CAP)
Mounting Type: Single Hole
Trim Plate: None
Power Supply: Turbine (TUR)
Temperature Mixer: Back-Check Tee (TEE)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.75
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
One tool service
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power-up mode
Flexible, high pressure supply hose, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Includes all mounting hardware
Standard Bowed Crown
Buy America Act (BAA) Compliant
Capacitance sensing technology
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
