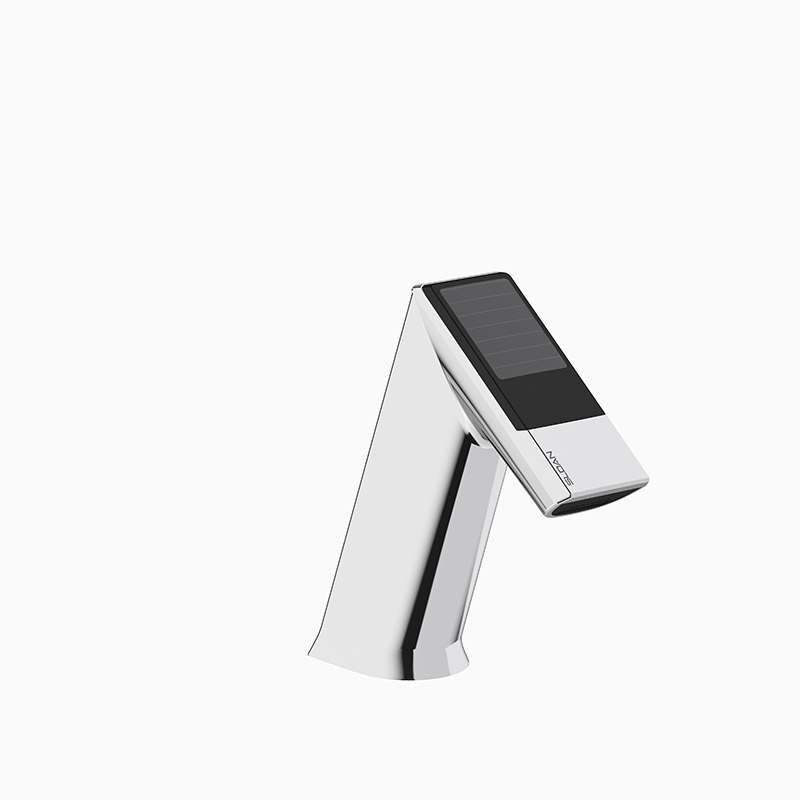

Sloan EFX-275 3324015 BASYS Solar Powered Deck Mounted Faucet
EFX-275-4-SOL-ISM-CP-0.5GPM-MLM-FCT
Code 3324015
4" Trim Plate, Solar Power Supply, Integrated Side Mixer, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
CODE NUMBER
3324015
DESCRIPTION
4" Trim Plate, Solar Power Supply, Integrated Side Mixer, Polished
Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor,
BASYS® Solar-Powered Deck-Mounted Mid Body.
DETAILS
Flow Rate: 0.5 gpm (1.9 Lpm) (0.5GPM)
Spray Type: Multi-Laminar (MLM)
Sensor Type: Infrared
Mounting Type: Single Hole
Trim Plate: 4" (102mm) (4)
Power Supply: Solar (SOL)
Temperature Mixer: Integrated Side Mixer (ISM)
Finish: Polished Chrome (CP)
Factory Default Timeout: 10 seconds
Factory Default Gallons per Cycle: 0.083
FEATURES
Commercial Grade, ADA Compliant, Electronic, Sensor-Activated, DieCastMetal Hand Washing Faucet with the following features:
One tool service
All wetted components to be stainless steel, engineered thermoplastic, EPDM, and copper or copper alloy
Solenoid housed in removable carrier that includes supply strainer
Integral water supply shut off
Supply strainer serviceable from above deck
Vandal resistant spray insert, key housed inside faucet body
All electronics sealed to IP-67
Gold plated electrical contacts
Above deck individual diagnostic indicators for battery life, solenoid condition, and power up mode

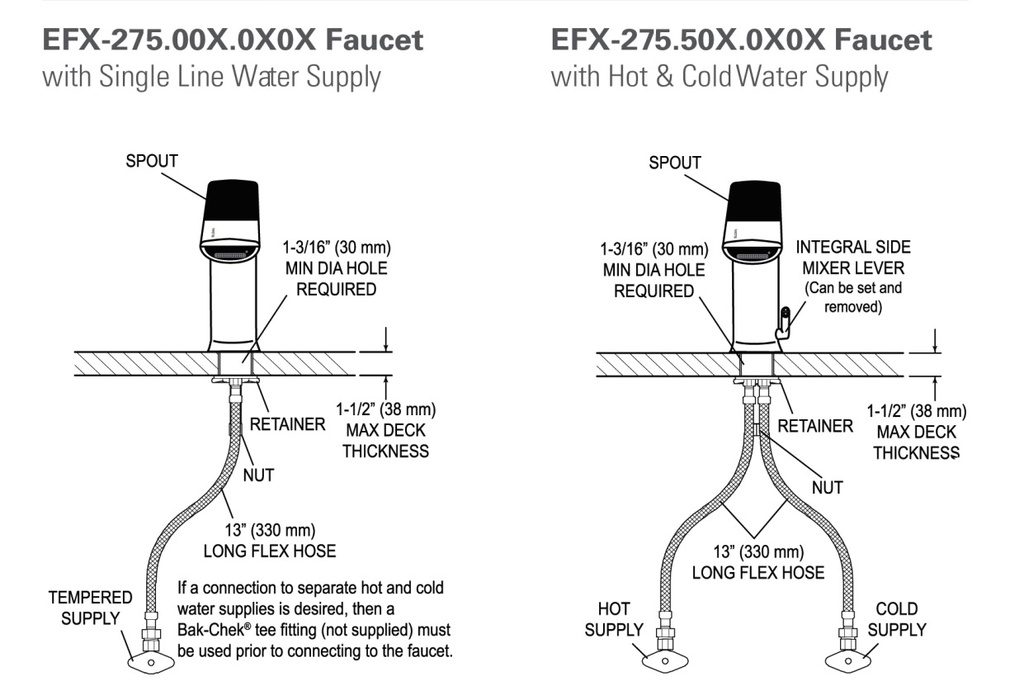

Flexible, high pressure supply hoses, 3/8” compression connections
Bi-stable magnetic solenoid
Four (4) “AA” alkaline batteries
Double infrared sensors with automatic setting feature Includes all mounting hardware
Line purge mode, eliminates stagnant water
Adjustable time-outs
ELECTRICAL SPECIFICATIONS
Battery Life: 3 years 8,000 cycles/month
Optional power harvesting significantly extends service life
Sensor Range: 4" – 5" (102 – 127mm)
