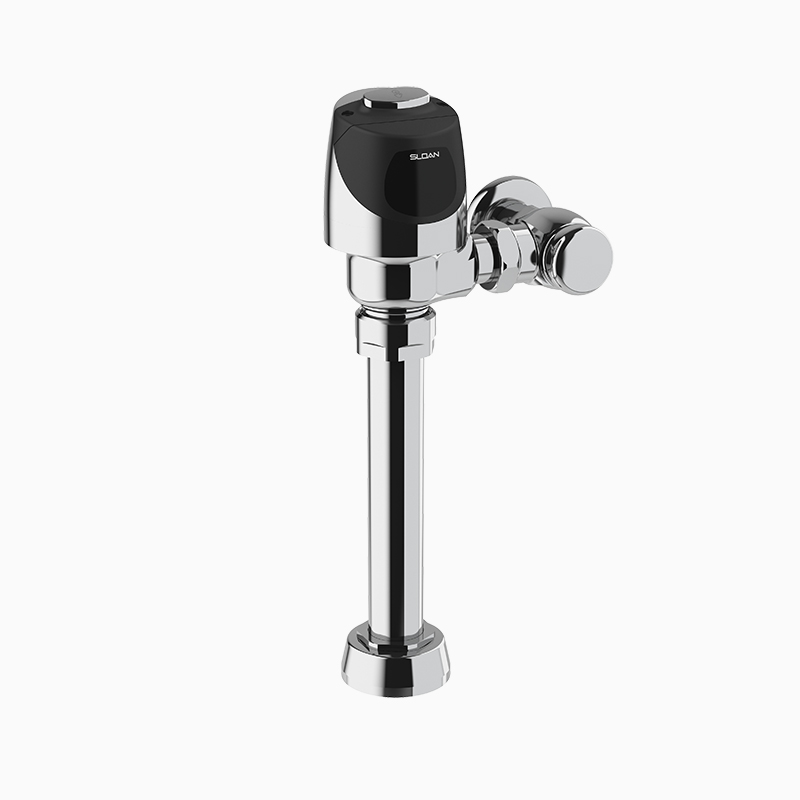

Sloan G2-8111 3250289 Exposed Sensor Water Closet Flushometer
G2 8111-1.28
Code 3250289
1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery
CODE NUMBER
3250289
DESCRIPTION
1.28 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single
Flush, Battery, G2 Exposed Sensor Water Closet Flushometer.
DETAILS
Flush Volume: 1.28 gpf (4.8 Lpf)
Finish: Polished Chrome (CP)
Power Type: Battery
Battery Life: 6 years
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Top Spud

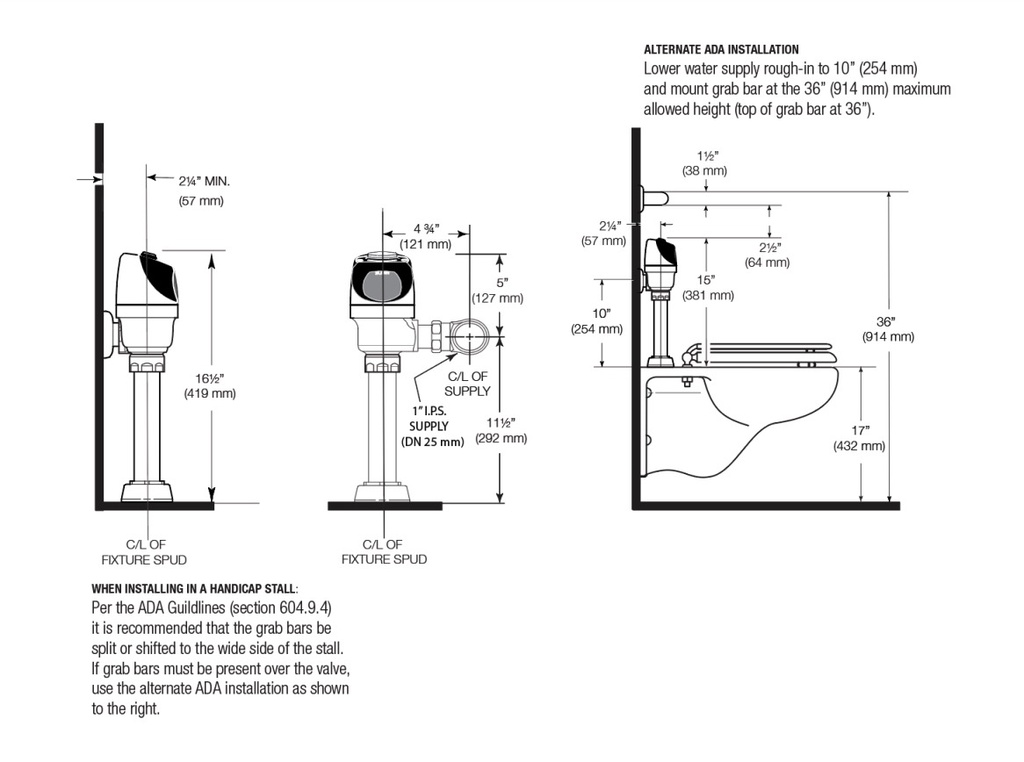

Rough-In Dimension: 11 ½" (292mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
FEATURES
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User friendly three (3) second Flush Delay
“Low Battery” Flashing LED
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flex Tube Diaphragm designed for improved life and reduced maintenance
Engineered Metal Cover with replaceable Lens Window
Four (4) Size AA batteries included
Courtesy Flush® Override Button
1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
WaterSense compliant when used with a 1.28 gpf WaterSense fixture
ELECTRICAL SPECIFICATIONS
Battery Life: 6 years
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
