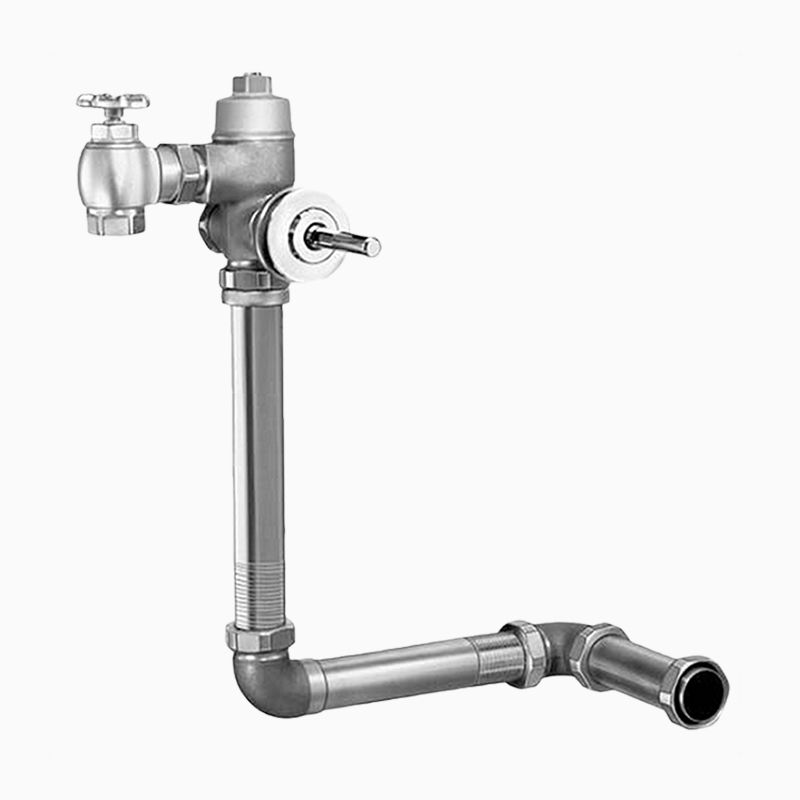

Sloan NAVAL 143 3141337 Concealed Manual Water Closet Flushometer
NAVAL 143-1.6-10-3/4-LDIM
Code 3141337
1.6 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 10.75 L Dimension
CODE NUMBER
3141337
DESCRIPTION
1.6 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, 10.75 L Dimension, Naval Concealed Manual Water Closet
Flushometer.
DETAILS
Flush Volume: 1.6 gpf (6.0 Lpf)
Finish: Rough Brass
Valve: Piston
Valve Body Material: Red Brass
Fixture Type: Water Closet
Fixture Connection: Rear Spud

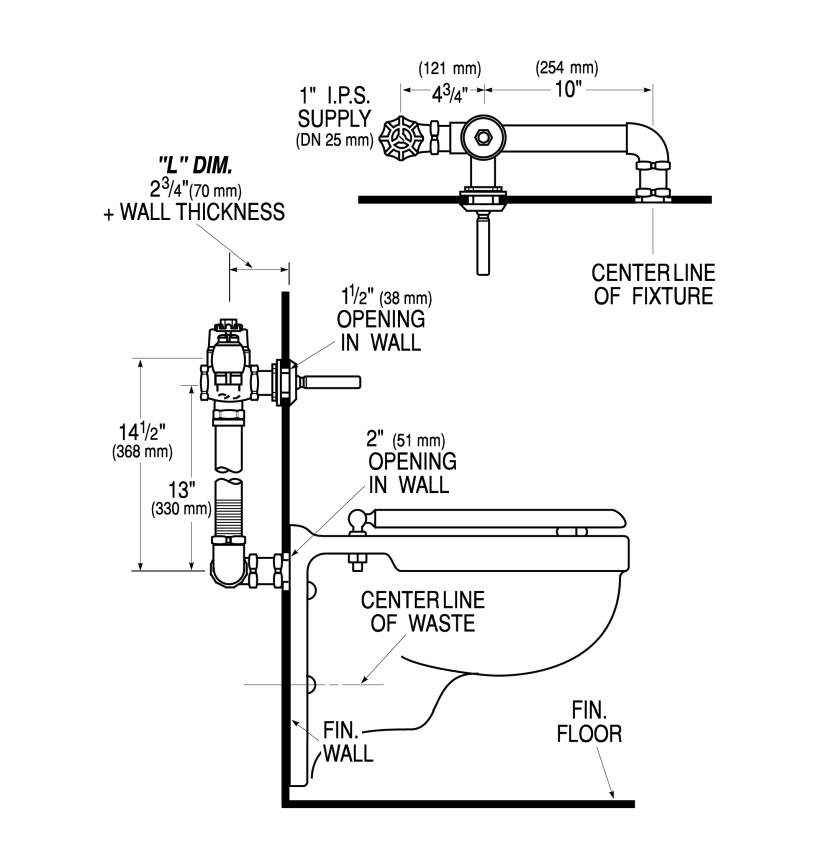

Rough-In Dimension: 14 ½" (368mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
L Dimension: 10 ¾" (273mm) (10-3/4-LDIM)
FEATURES
Non-hold-open oscillating handle, Bak-Chek™ control stop and selfcleaning Xpelor Metering By-Pass ensure reliable operation and accurate flush delivery
Available with adjustable or ground joint supply stop (ground joint recommended for salt water applications)
Factory set flush volume of either 1.6 gpf/6.0 Lpf or 3.5 gpf/13.2 Lpf with adjustment range of 1.5 gpf/5.7 Lpf to 7.0 gpf/26.5 Lpf
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
