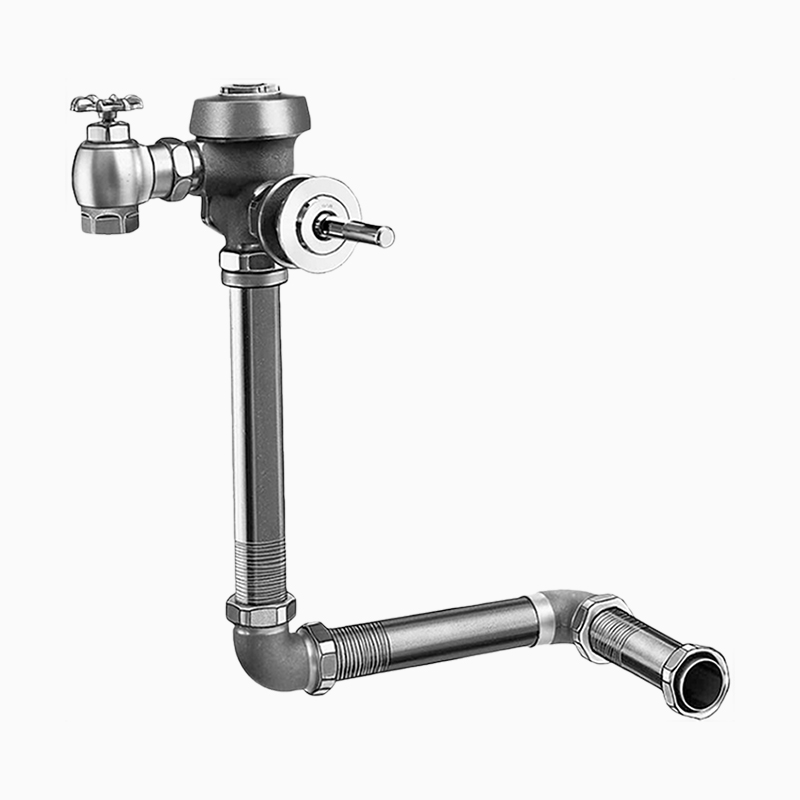

Sloan ROYAL 143 3011330 Concealed Manual Water Closet Flushometer
ROYAL 143-3.5-5-3/4-LDIM
Code 3011330
3.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 5.75 L Dimension
CODE NUMBER
3011330
DESCRIPTION
3.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single
Flush, 5.75 L Dimension, Royal® Concealed Manual Water Closet
Flushometer.
DETAILS
Flush Volume: 3.5 gpf (13.2 Lpf)
Finish: Rough Brass
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Water Closet
Fixture Connection: Rear Spud

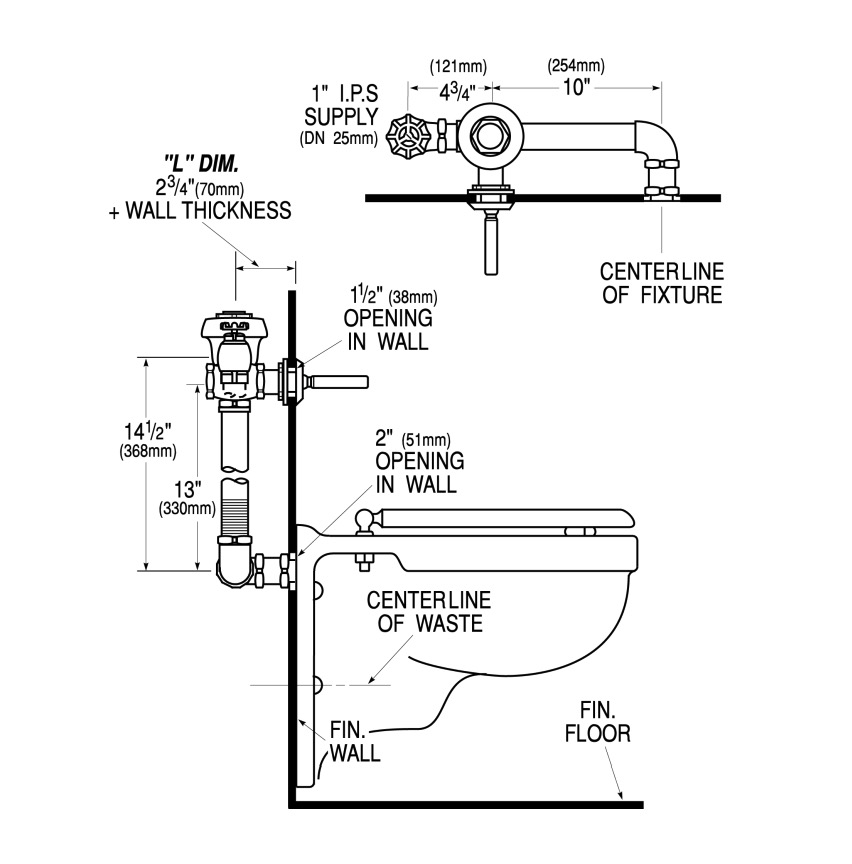

Rough-In Dimension: 14 ½" (368mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
L Dimension: 5 ¾" (146mm) (5-3/4-LDIM)
FEATURES
Flush volumes start as low as 1.28 gpf/4.8 Lpf
Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
